System Description
DESIGN/PURPOSE
Shift P warning warns that the driver is getting off the vehicle with the shift position not in P position.
| Symbol | Message |
|---|---|
| Select P |
SYNCHRONIZATION WITH MASTER WARNING LAMP
Applicable. For master warning lamp. Refer to Component Description .
SYNCHRONIZATION WITH WARNING CHIME
Synchronization is applied. (Shift P warning chime) For warning chime. Refer to System Description .

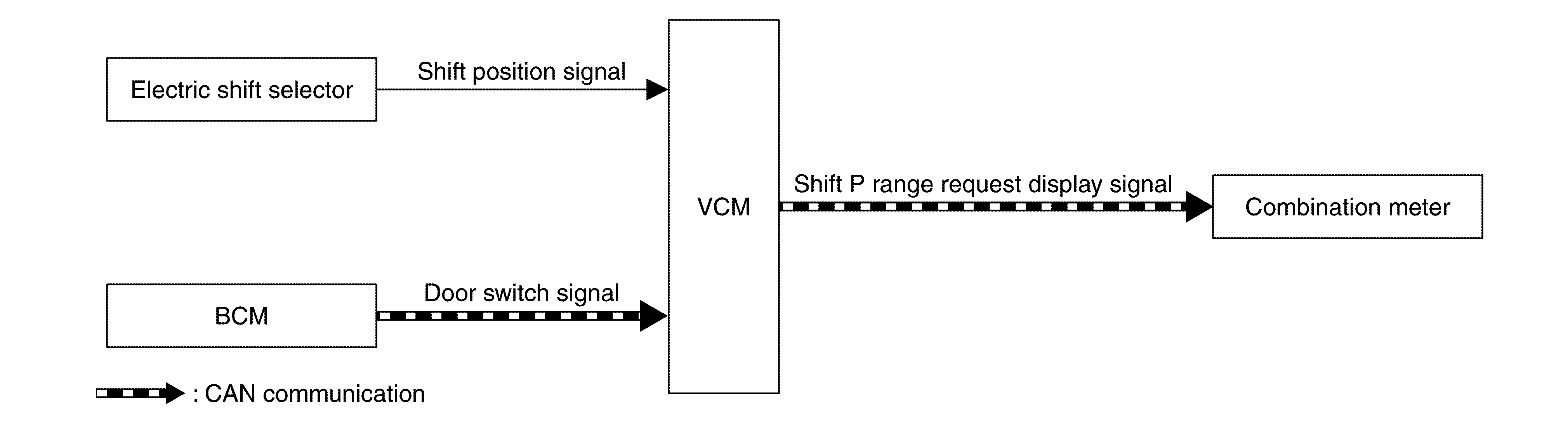

SYSTEM DIAGRAM
SIGNAL PATH
- The electric shift selector sends shift position information to VCM.
- BCM transmits a door switch signal to VCM.
- VCM judges the vehicle condition according to shift position information and a door switch signal. VCM transmits a shift P range request display signal to the combination meter if the driver's door is opened with the shift position not in P position.
WARNING/INDICATOR OPERATING CONDITION
When all of the following conditions are satisfied:
- Shift position: Except P range
- Front door (driver side): Open
WARNING/INDICATOR CANCEL CONDITION
The indication is cancelled when any of the following conditions are satisfied:
- The shift position is changed to P position.
- The driver's door is closed.

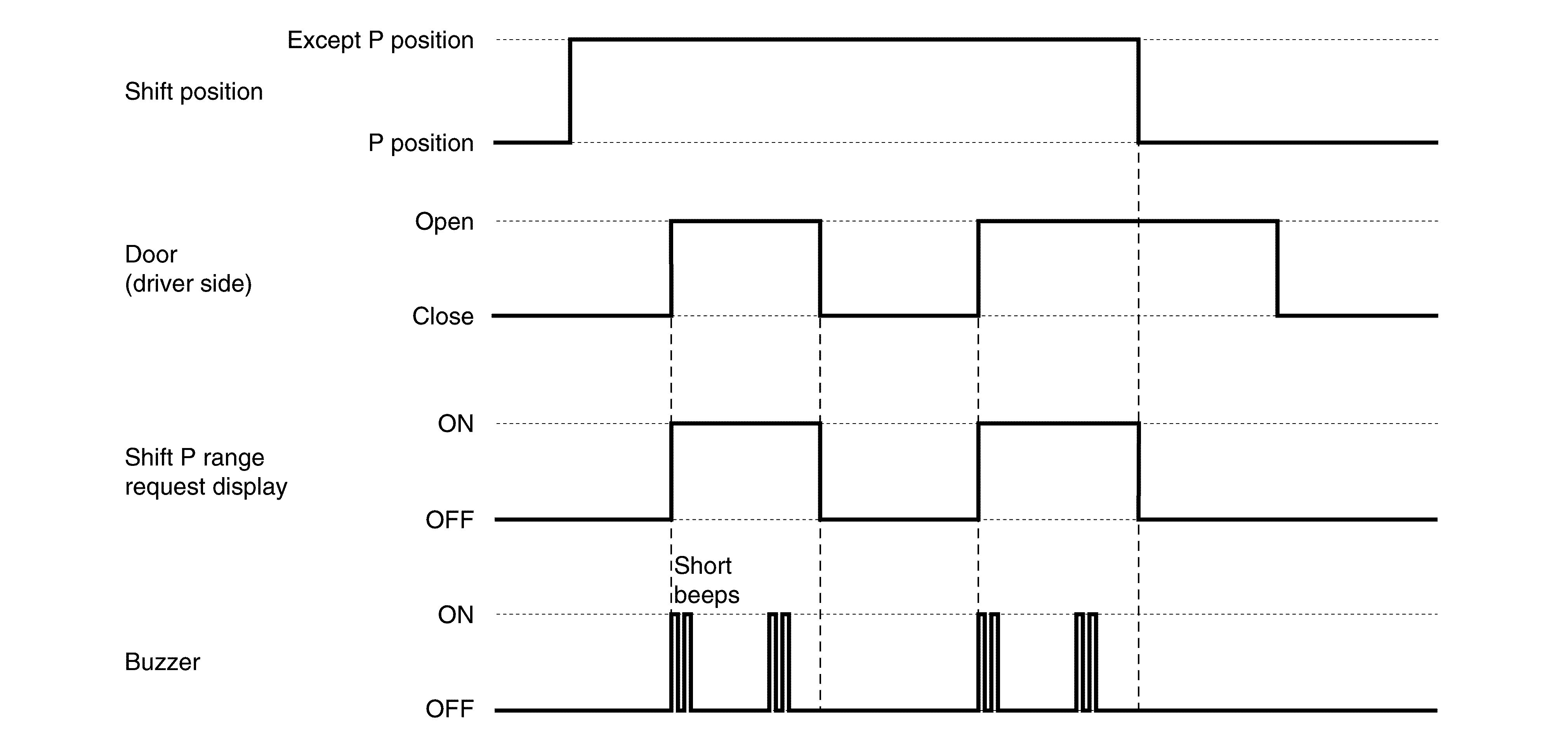

TIMING CHART
