System Description
DESCRIPTION
The traction motor inverter applies AC power to the traction motor according to the target motor torque signal calculated by VCM in order to generate drive force.

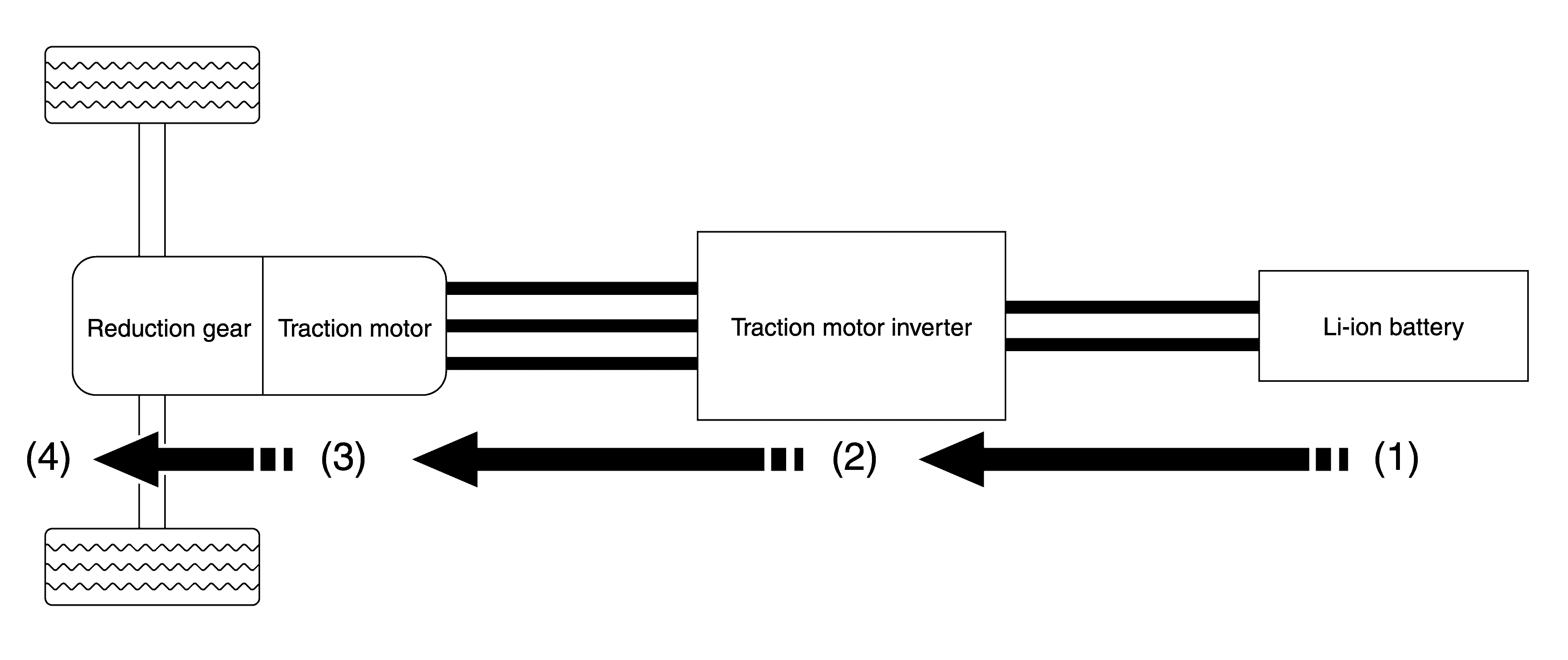

FLOW OF ENERGY
| (4) | <= | (3) | <= | (2) | <= | (1) |
| The drive torque from the traction motor is output as kinetic energy. | The AC power from the traction motor inverter is converted to magnetic energy and a rotating magnetic field is created in order to generate drive torque. | The traction motor inverter (IGBT) switches in order to convert the DC power from the Li-ion battery to AC power. | The DC power from the Li-ion battery is input to the traction motor inverter. |
