Removal and Installation

REMOVAL

1. Lift luggage floor rear finisher and locate fuel pump control module (FPCM) behind luggage mask.

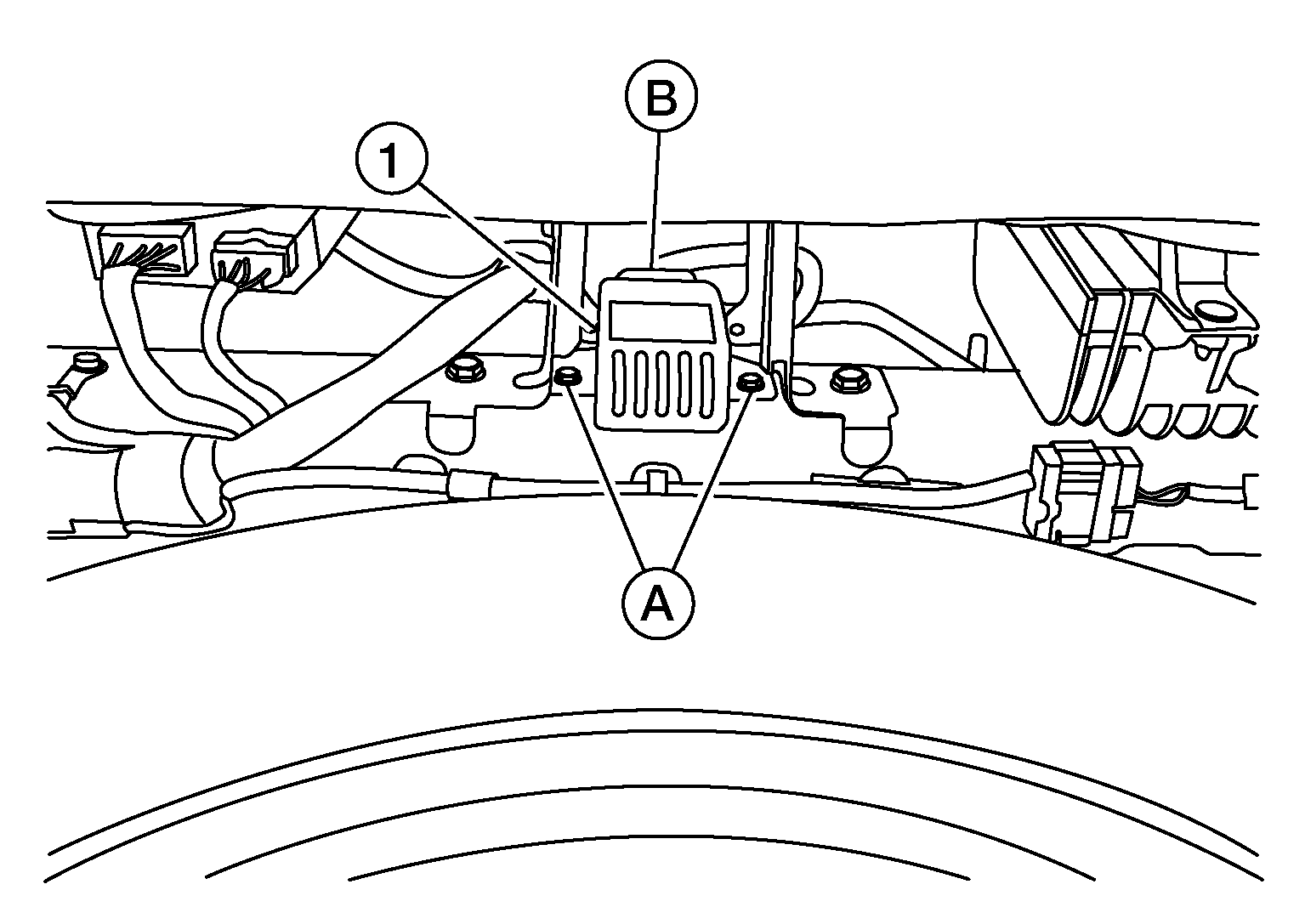

2. Remove bolts (A) from the bracket.

   Courtesy of NISSAN NORTH AMERICA, INC.

3. Disconnect the harness connector (B) from the fuel pump control module (1) and then remove fuel pump control module.

INSTALLATION

Installation is in the reverse order of removal.
