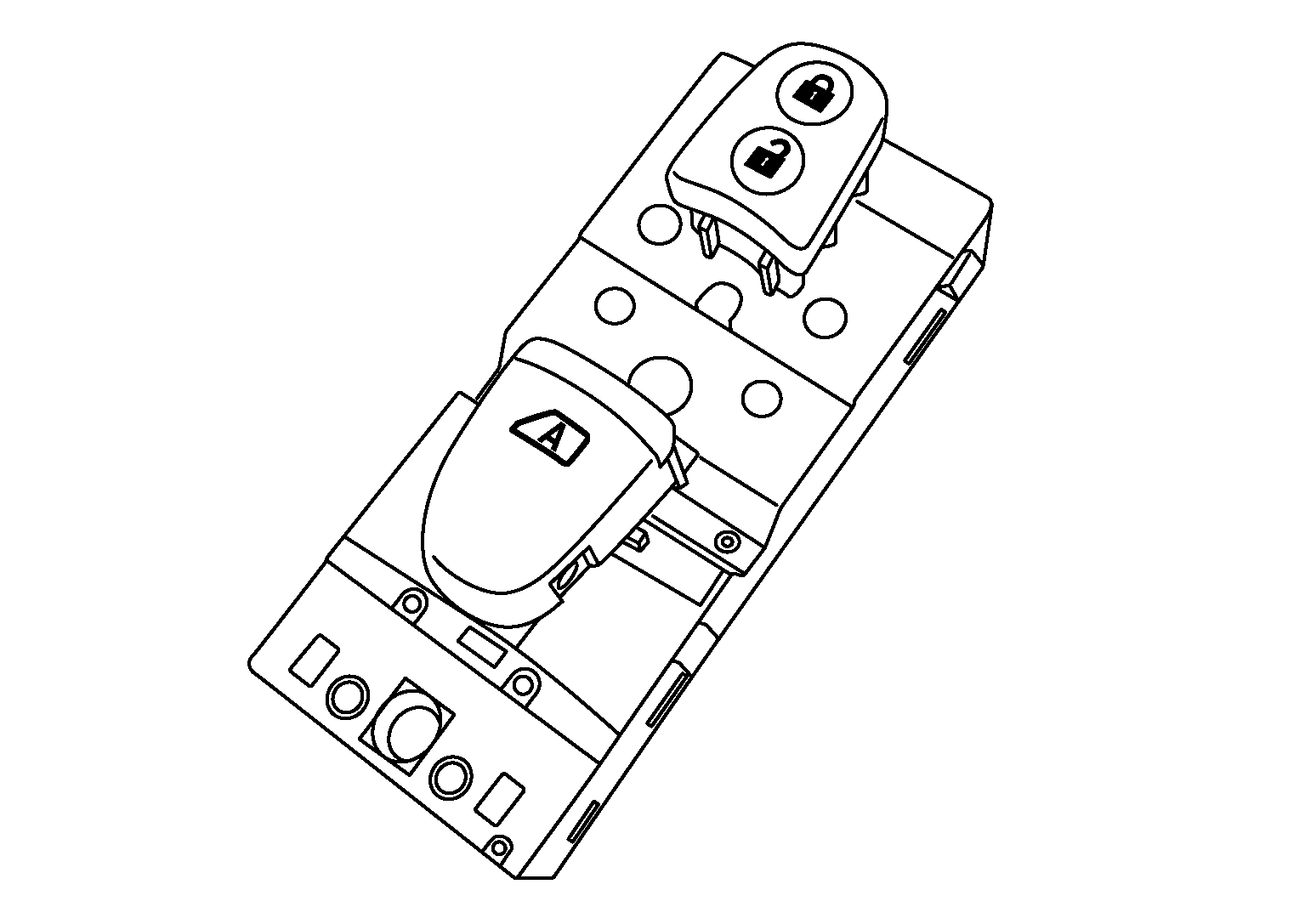

Power Window and Door Lock/Unlock Switch RH

Located on the front RH door finisher.

Courtesy of NISSAN NORTH AMERICA, INC.
Power window and door lock/unlock switch RH transmits AUTO UP/DOWN signal to front power window motor RH.
Receives AUTO UP/DOWN signal from BCM and then transmits to front power window motor RH.
Receives encoder pulse signal and then controls anti-pinch system.
