Exploded View

EVAP CANISTER

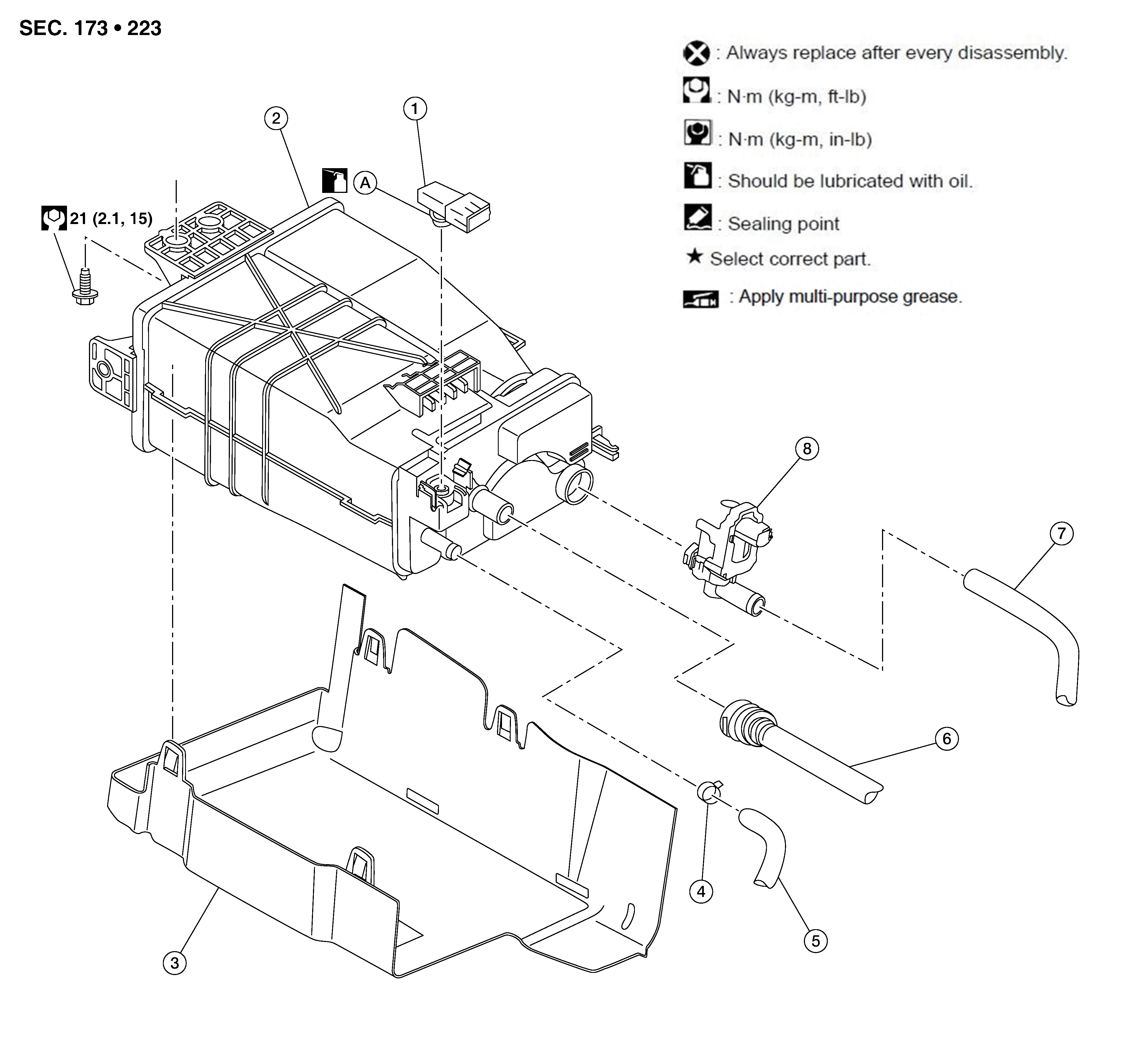

Fig 1: EVAP Canister With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister control pressure sensor	2.	EVAP canister	3.	Shield
4.	Clamp	5.	EVAP canister purge hose	6.	EVAP canister vent line
7.	EVAP canister vent control valve hose	8.	EVAP canister vent control valve	A.	O-ring
