Home › Nissan-Datsun › 2024 › Murano SL, FWD › Repair and Diagnosis › Steering › Steering Column › Steering System › Removal And Installation › Steering Wheel › Exploded View

Exploded View

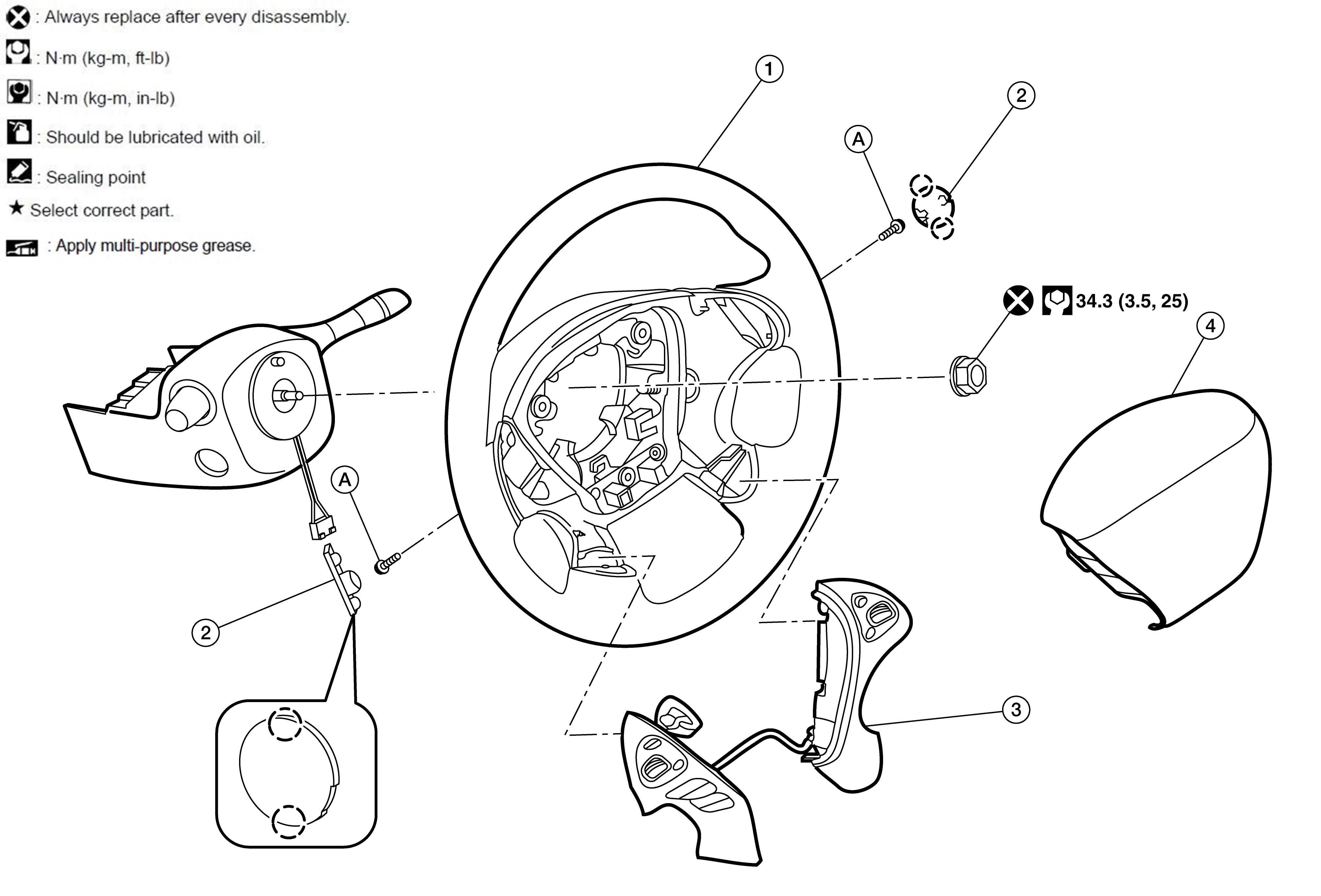

Fig 1: Steering Wheel With Torque Specifications
GNSDB124646Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering wheel 2. Cover 3. Steering switches
4. Driver air bag module A. Refer to Exploded View . SYMBOL Pawl
