Exploded View

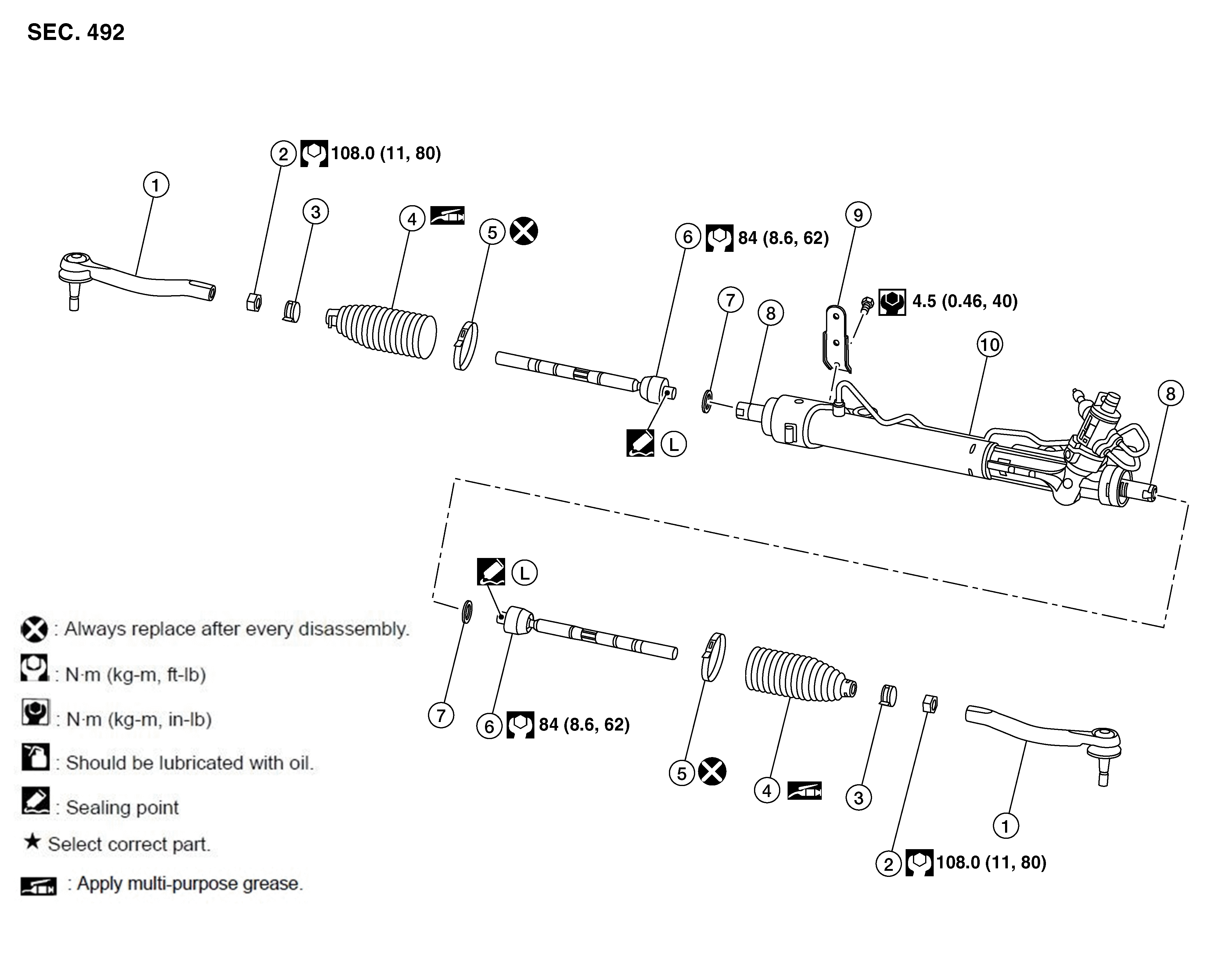

Fig 1: Steering Gear And Linkage With Torque Specifications

GNSDB125918

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Outer socket	2.	Inner socket lock nut	3.	Small boot clamp
4.	Boot	5.	Large boot clamp	6.	Inner socket
7.	Spacer	8.	Rack bar (not serviceable)	9.	Bracket
10.	Steering gear
