Exploded View

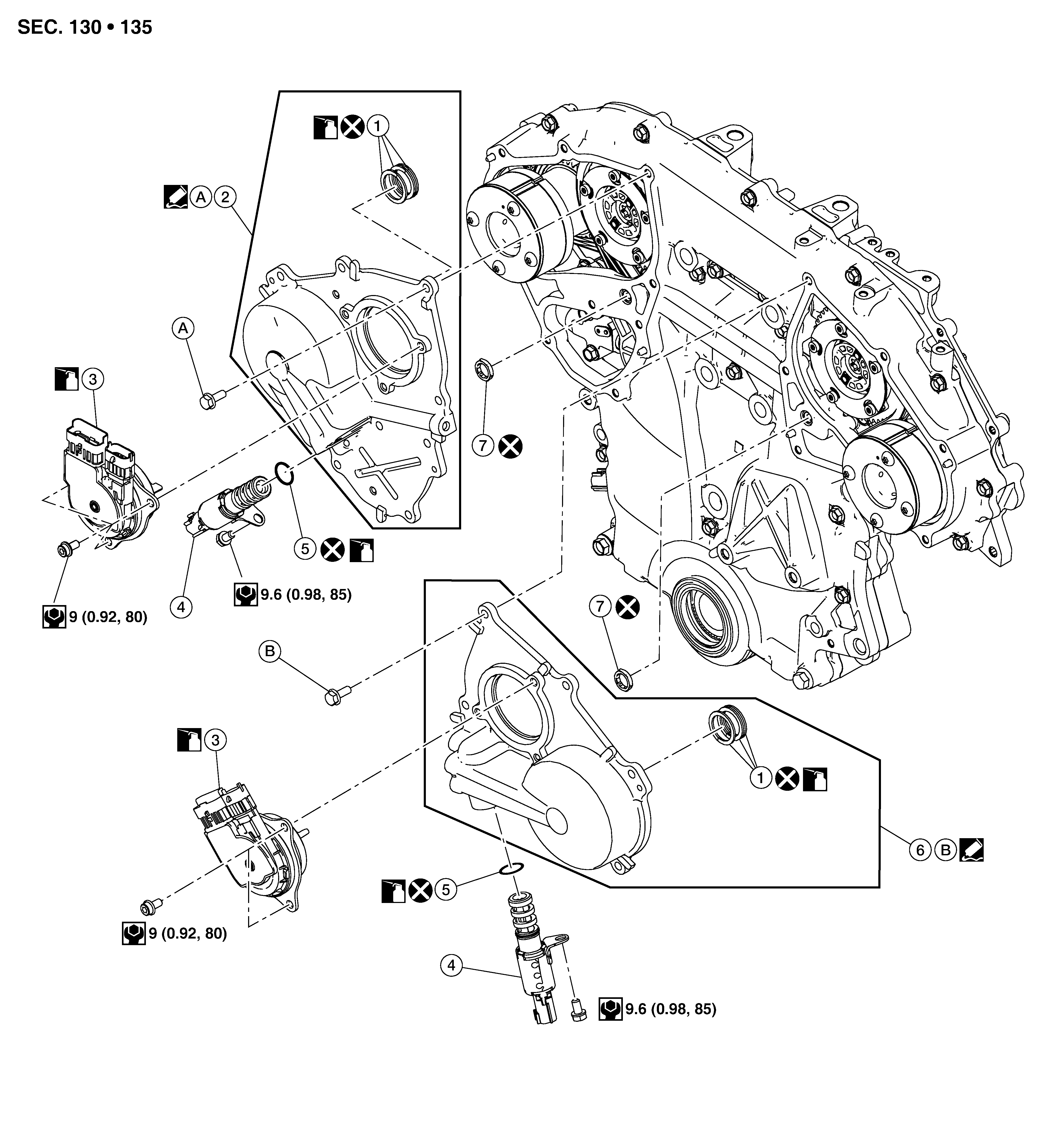

Fig 1: Valve Timing Control With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	O-ring	2.	Valve timing control cover (bank 1)	3.	Electric intake valve timing control actuator
4.	Exhaust valve timing control solenoid valve	5.	O-ring	6.	Valve timing control cover (bank 2)
7.	O-ring	A.	Refer to Valve Timing Control Cover (bank 1) .	B.	Refer to Valve Timing Control Cover (bank 2) .
