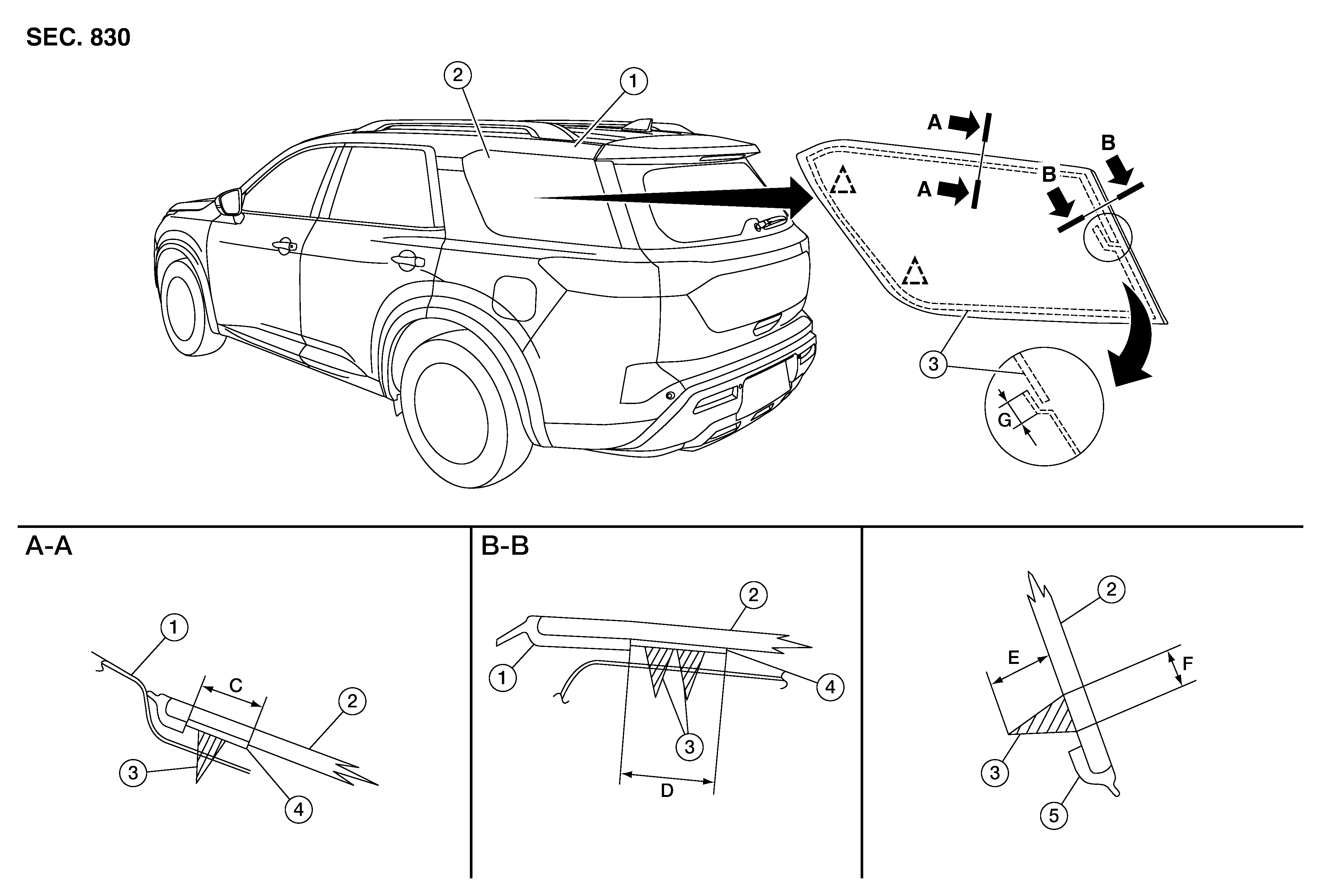

Exploded View

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Quarter window glass molding	2.	Quarter window glass	3.	Adhesive
4.	Primer	5.	Quarter window glass molding	C.	15 mm (0.59 in)
D.	21 mm (0.83 in)	E.	12 + 2, - 0 mm (0.47 + 0.08, - 0 in)	F.	7 + 2, - 0 mm (0.27 + 0.08, - 0 in)
G.	30 mm (1.18 in)	:	Clip
