Removal and Installation

REMOVAL

CAUTION:

If replacing chassis control module, Perform "ADDITIONAL SERVICE WHEN REPLACING CHASSIS CONTROL MODULE." Refer to Description .

  1. Remove the instrument panel assembly. Refer to Removal and Installation .

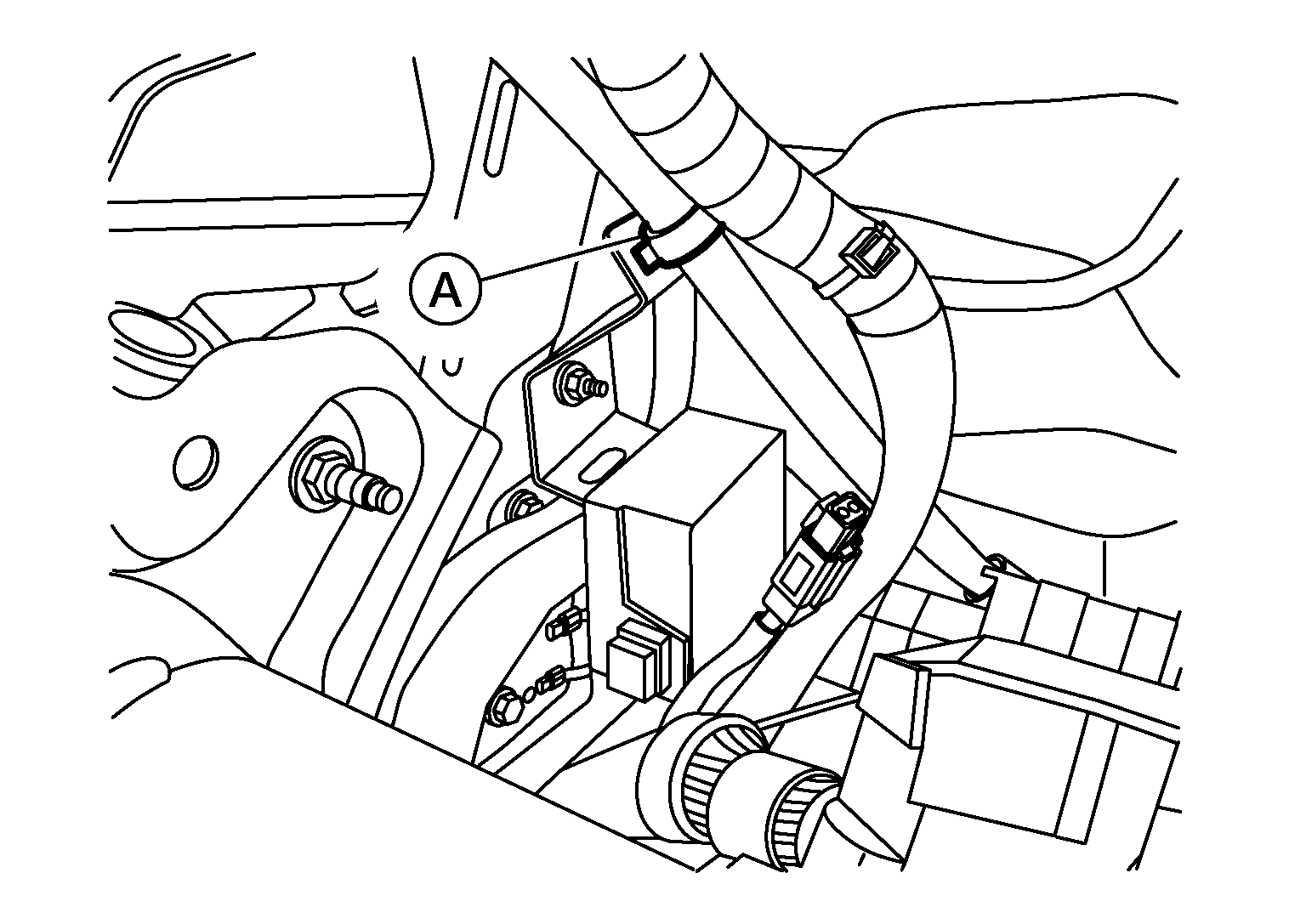

  2. Release clip (A).
    GNSDB136871Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect the harness connector from chassis control module.

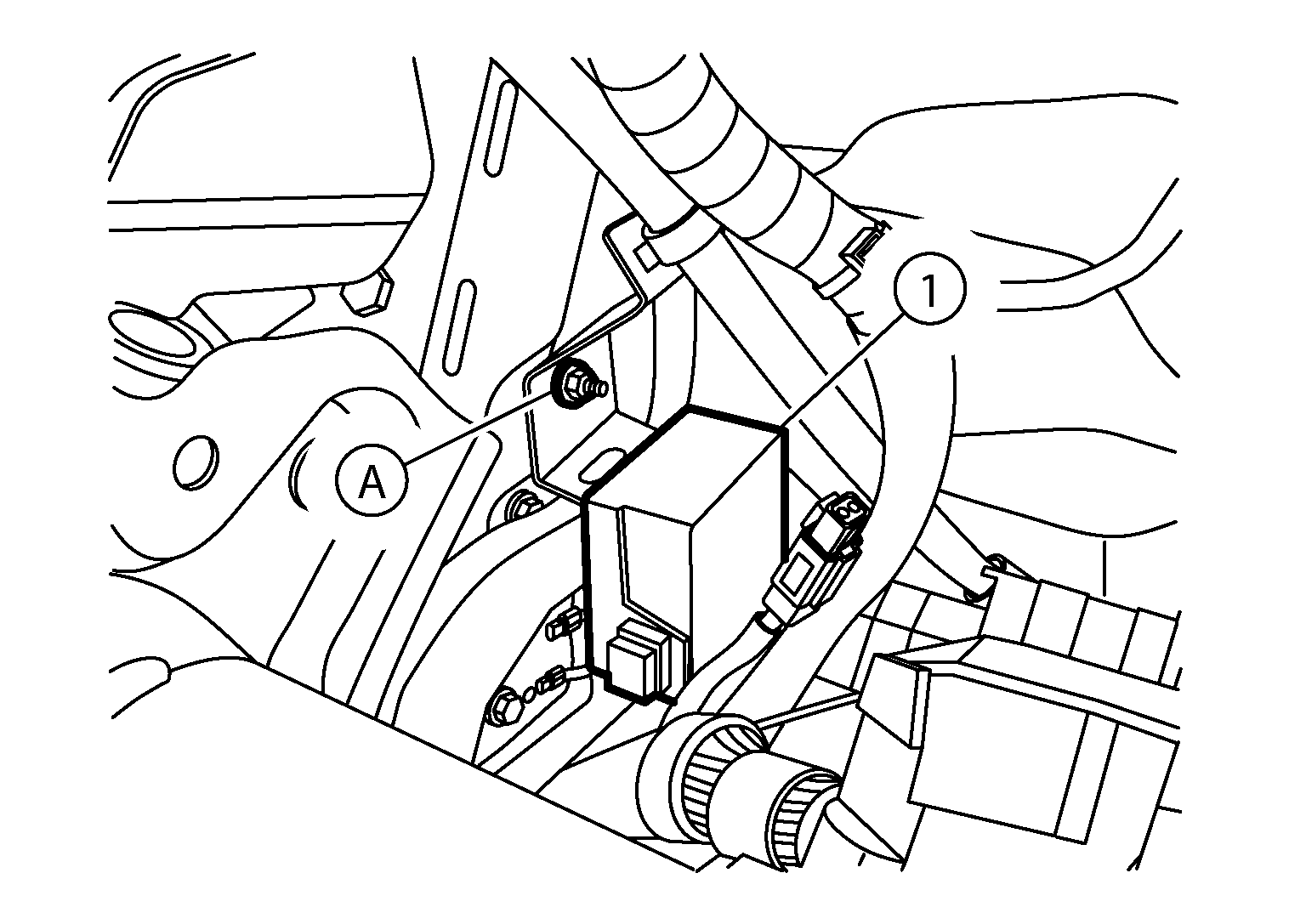

  4. Remove nut (A), then remove chassis control module (1).
    GNSDB137284Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Do not drop the chassis control module.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

If replacing chassis control module, perform "ADDITIONAL SERVICE WHEN REPLACING CHASSIS CONTROL MODULE." Refer to Description .
