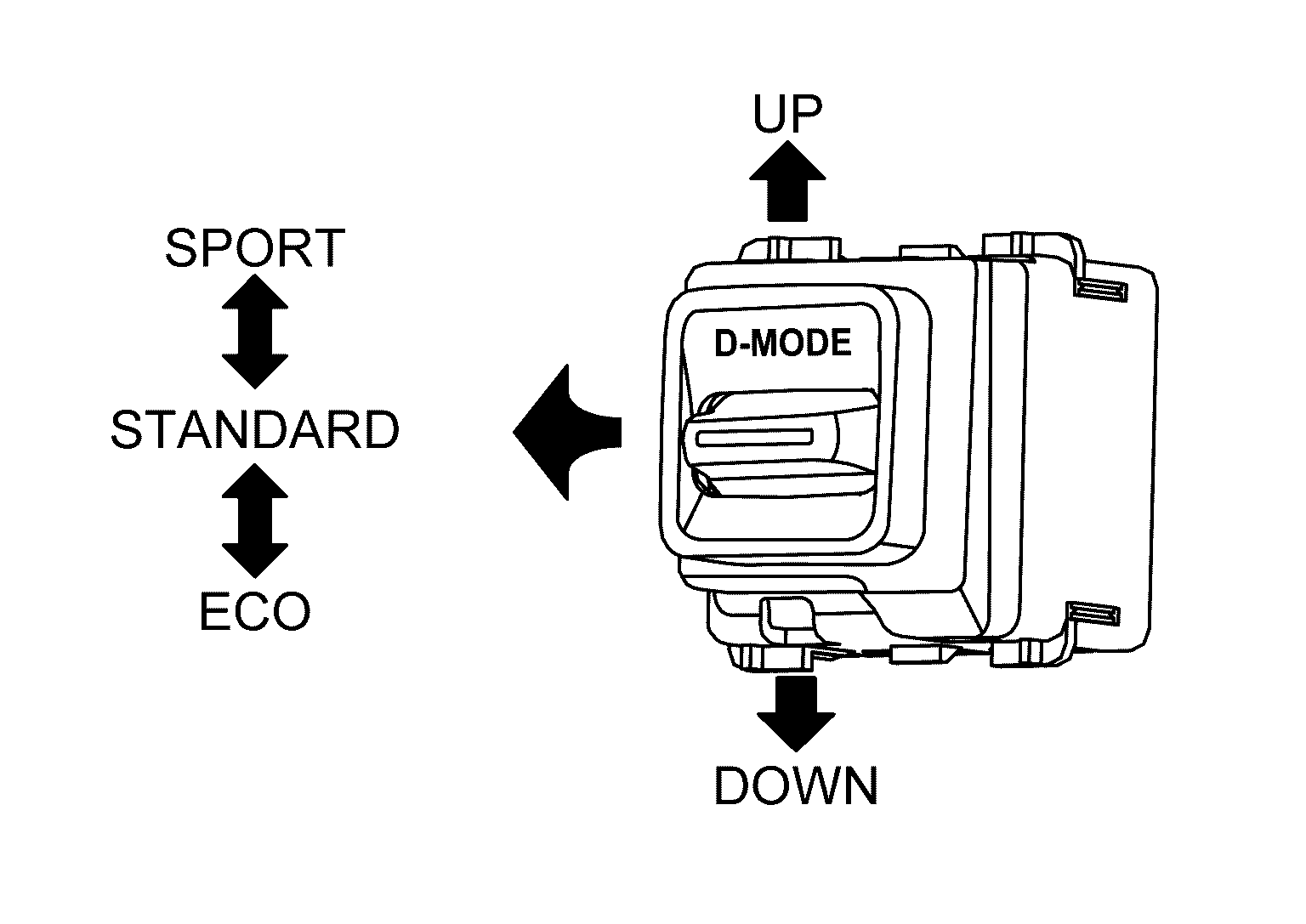

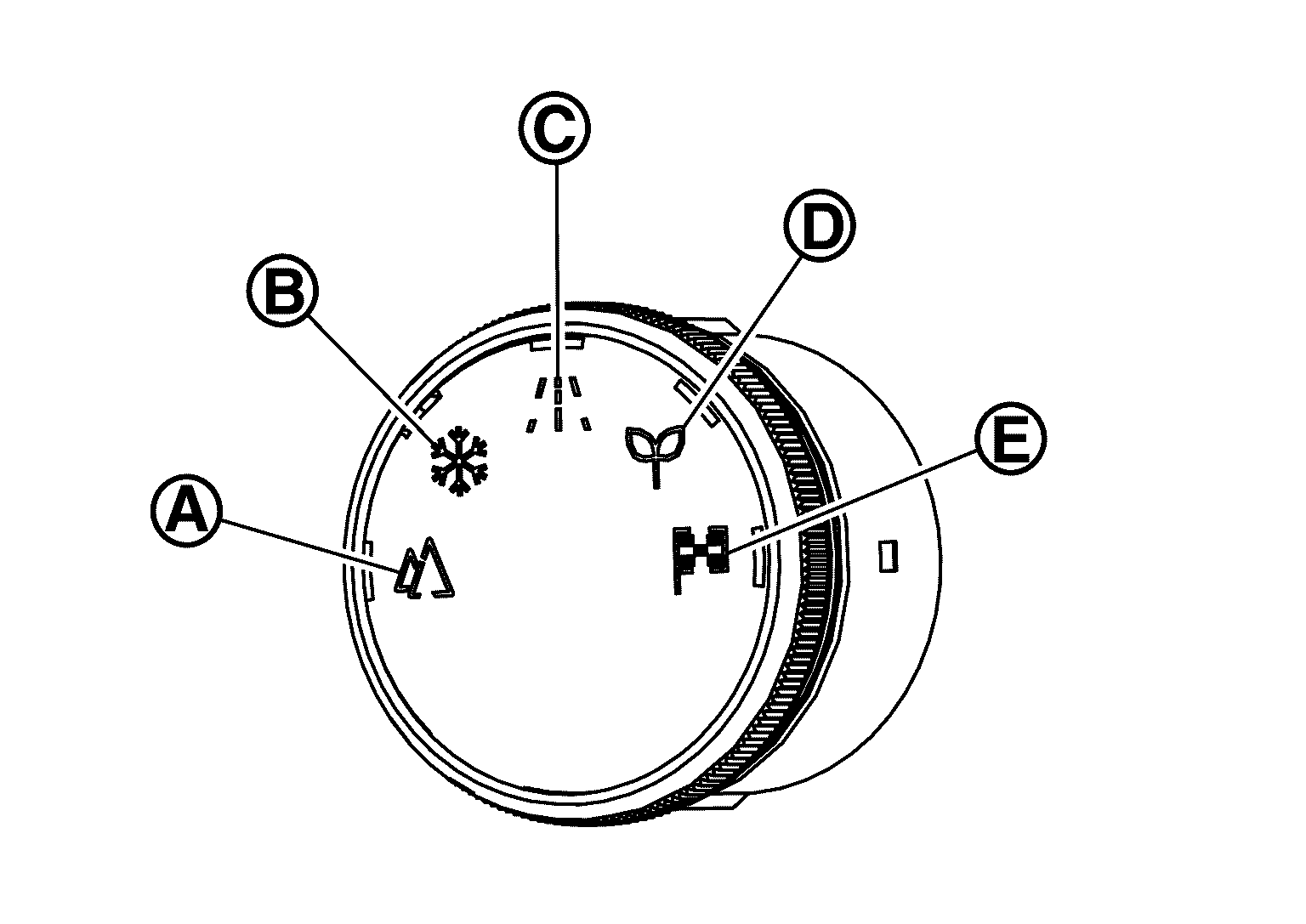

Drive Mode Select Switch
FUNCTIONS WITHIN THE SYSTEM
When drive mode select switch is operated, driving mode is changed for each system.
NOTE:
For systems that can be changed.
- 2WD Models: Refer to System Description (2WD Models) .
- AWD Models: Refer to System Description (AWD Models) .
INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM
Drive mode select switch detected the mode status.
INDIVIDUAL OPERATION
Transmit the drive mode select switch signal to BCM.
COMPONENT LOCATION
Refer to Component Location .
