Front Power Window Motor (Driver Side)

COMPONENT FUNCTION WITHIN SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

• Power window motor controls door glass.
• Power window motor controls AUTO operation.
• Power window motor controls anti-pinch function.

INDIVIDUAL COMPONENT FUNCTION

Opens/closes door glass.

COMPONENT OPERATION

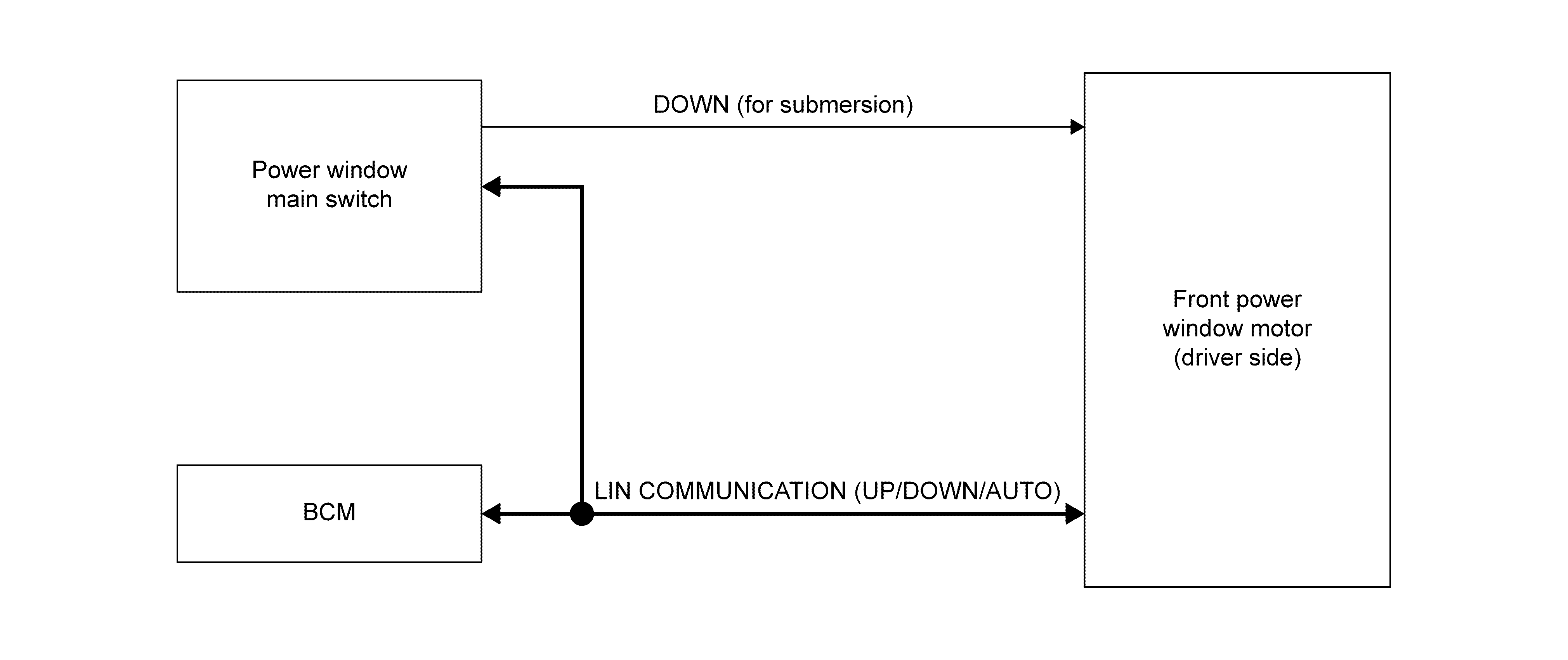

• Front power window motor (driver side) receives signal from power window main switch and BCM via LIN communication, then opens/closes door glass.
• When the power window main switch is submerged in water during the vehicle is submerged, the UP/DOWN/AUTO control via LIN communication is stopped. Then the DOWN signal circuit between the power window main switch and the front power window motor (driver side) enables only DOWN operation.

Courtesy of NISSAN NORTH AMERICA, INC.

COMPONENT LOCATION

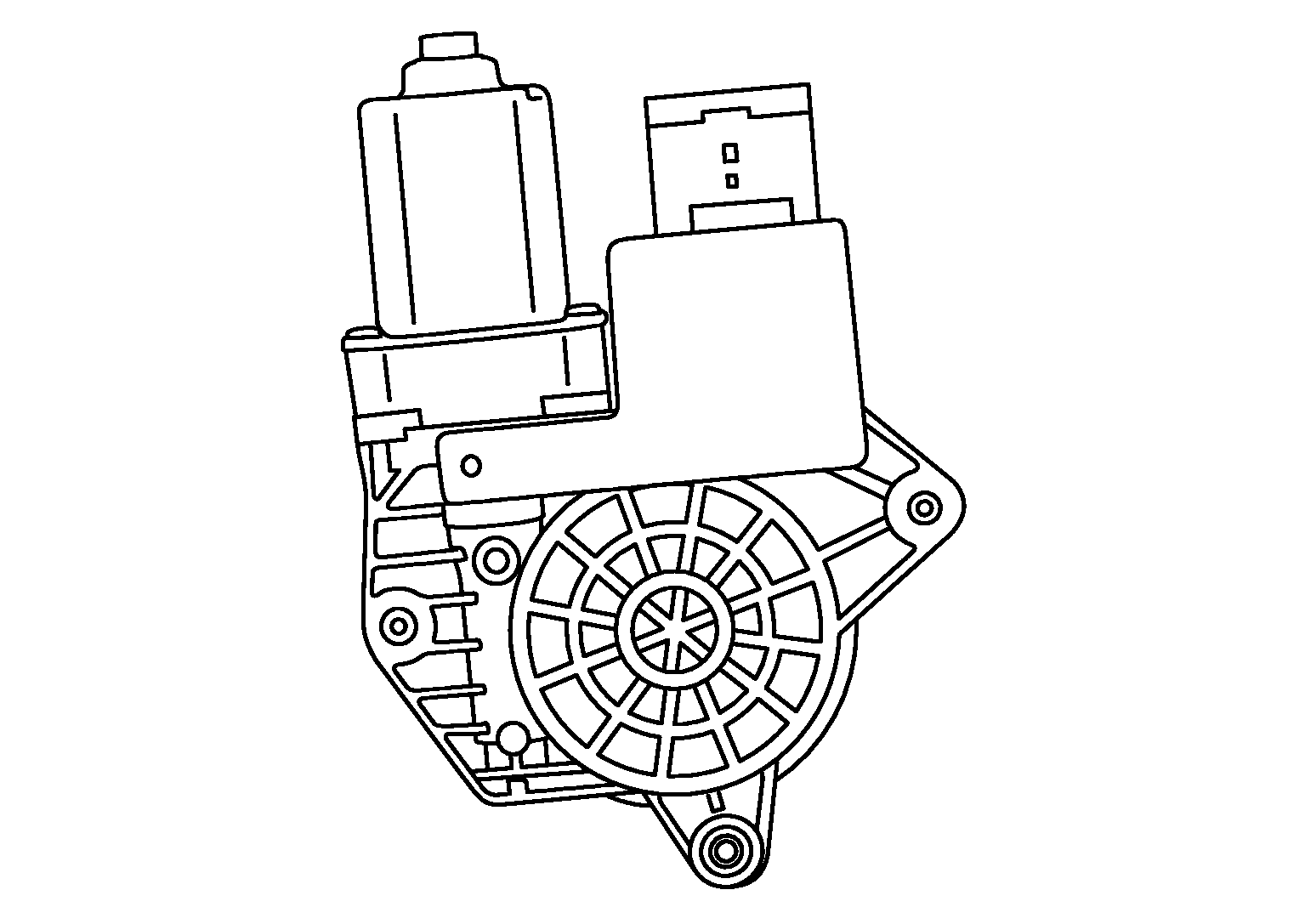

Front power window motor (driver side) is installed to front door regulator (driver side). Refer to Component Location .
