Component Location

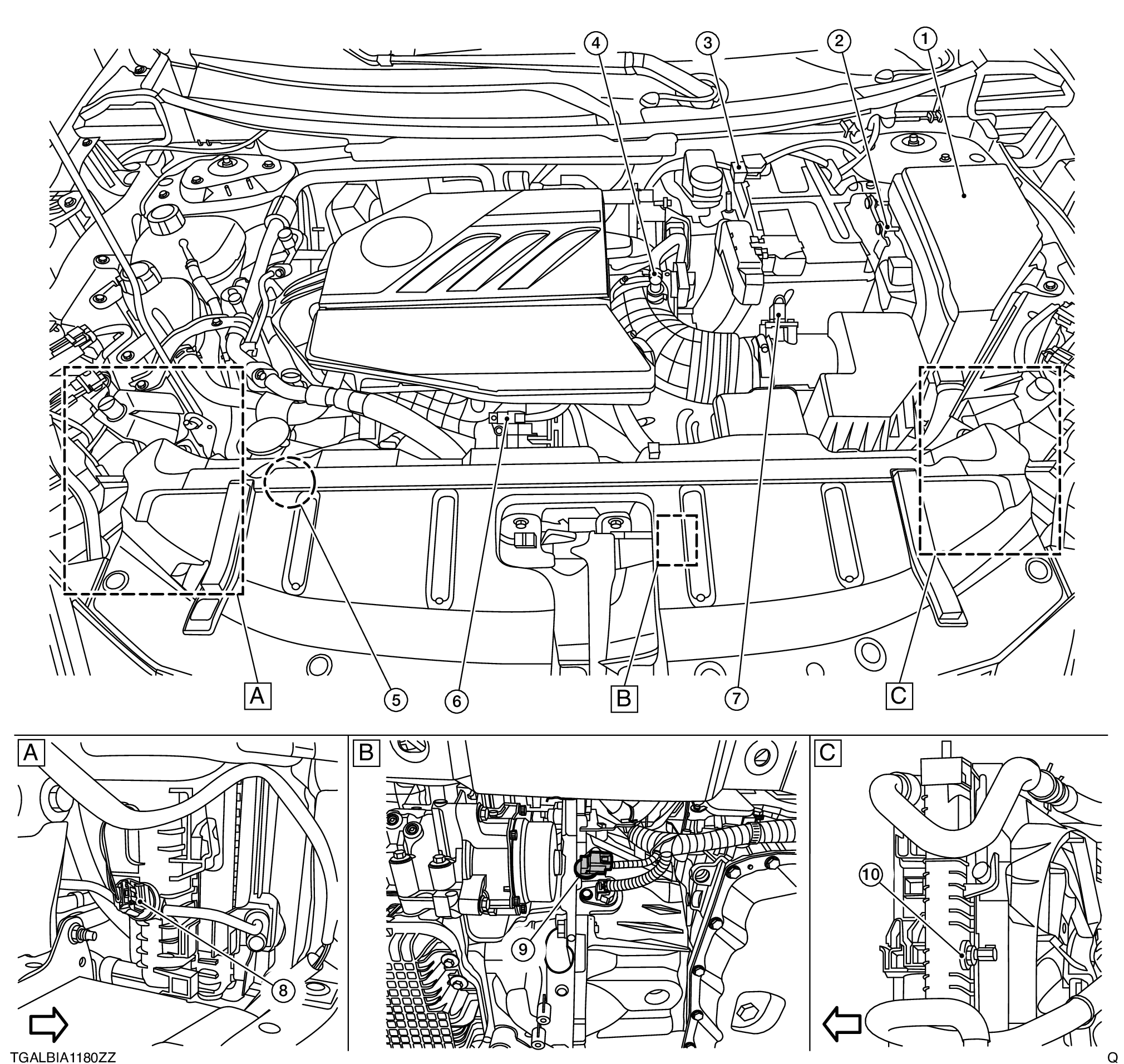

Engine Room Component

Courtesy of NISSAN NORTH AMERICA, INC.

Right front of vehicle

Lower center front of vehicle

Left front of vehicle

	IPDM E/R		ECM		Battery current sensor
	Admission valve		Sub-starter and generator		Turbocharger boost sensor (With intake air temperature sensor 2)
	Mass air flow sensor		Refrigerant pressure sensor		Crankshaft position sensor 2
	Engine coolant temperature sensor 2

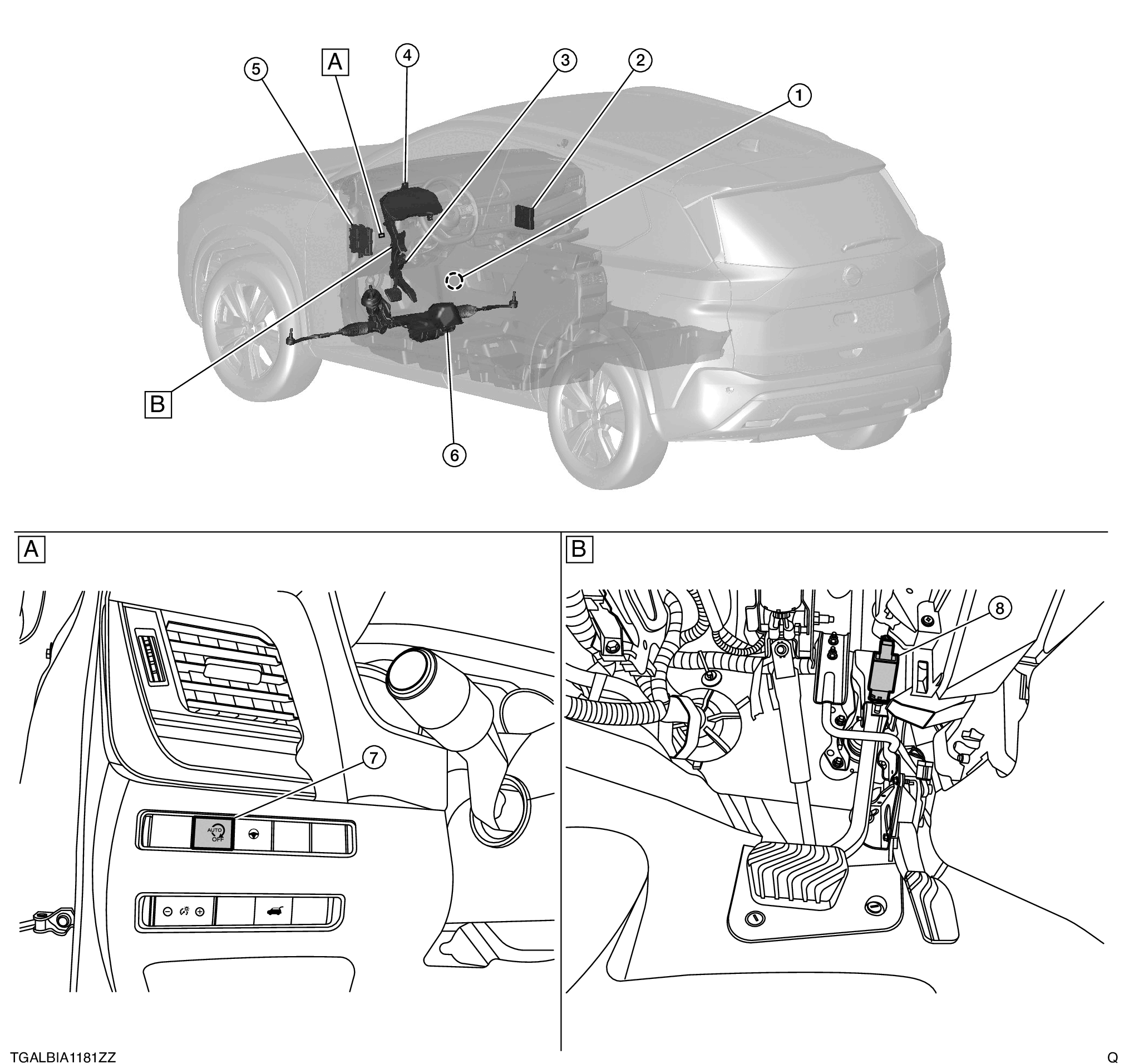

Body Compartment

Courtesy of NISSAN NORTH AMERICA, INC.

Left side of steering column

Pedal periphery

	Door switch (driver side)		A/C auto amp.		Accelerator pedal position sensor
	Combination meter		BCM		Power steering control module
	Stop/start OFF switch		Stop lamp switch
