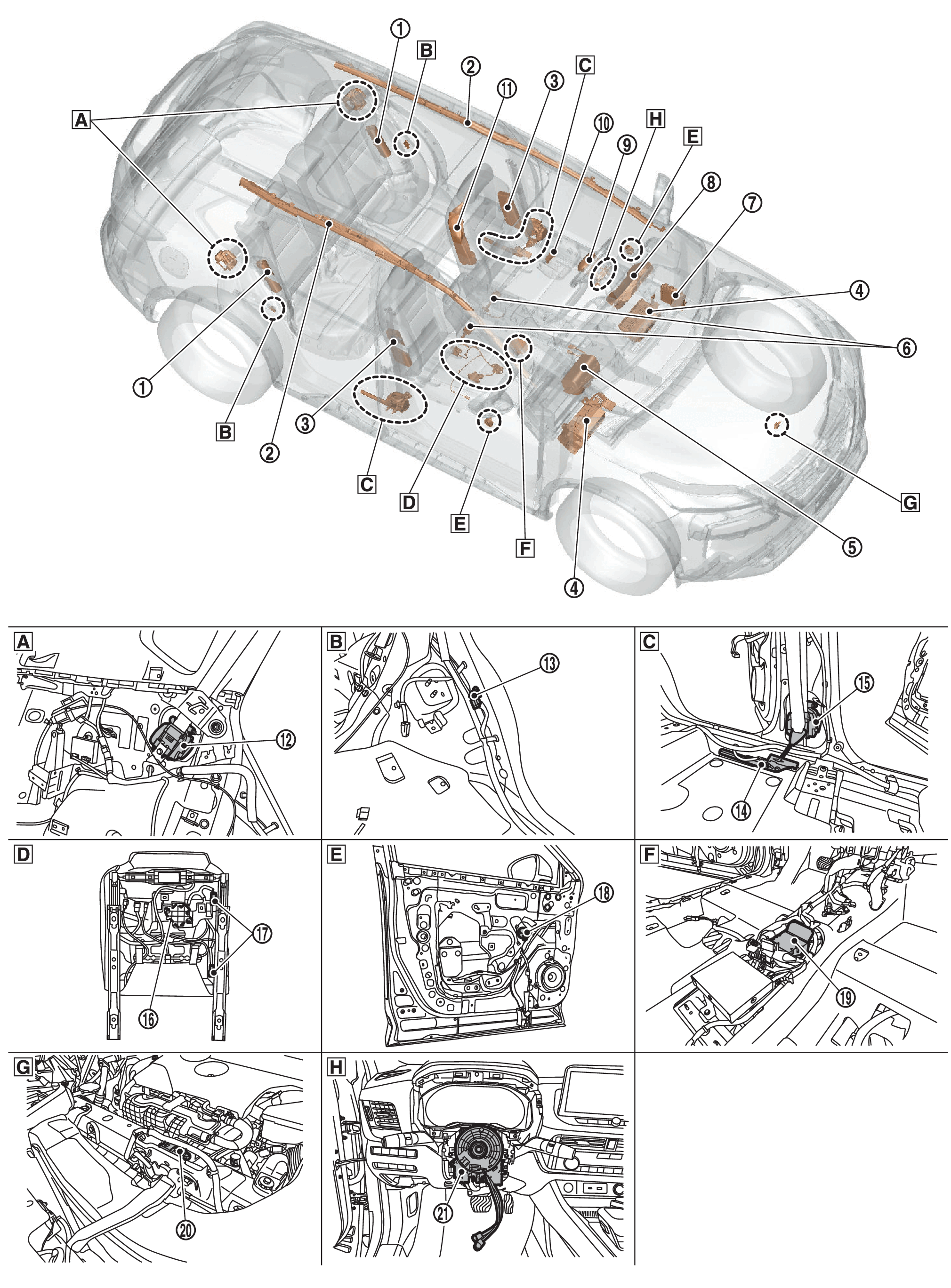

| 1. |
Rear side air bag module |
2. |
Curtain air bag module |
3. |
Front side air bag module |
| 4. |
Knee air bag module |
5. |
Passenger air bag module |
6. |
Front seat belt buckle switch |
| 7. |
BCM (Body Control Module) Refer to Component Location
for detailed component location. |
8. |
Combination meter (SRS air bag warning lamp) |
9. |
Driver air bag module |
| 10. |
Front passenger air bag OFF indicator |
11. |
Front center air bag module |
12. |
Rear seat belt pre-tensioner |
| 13. |
C-pillar satellite sensor |
14. |
Lap pre-tensioner |
15. |
Front seat belt pre-tensioner |
| 16. |
Occupant detection system control unit |
17. |
Occupant detection system sensor |
18. |
Front door satellite sensor |
| 19. |
Air bag diagnosis sensor unit |
20. |
Crash zone sensor |
21. |
Spiral cable |
| A |
View with luggage side lower finisher removed |
B |
View with luggage side lower finisher removed |
C |
View with floor carpet removed |
| D |
Backside of passenger seat cushion |
E |
View with front door finisher removed |
F |
View with center console assembly removed |
| G |
View of radiator core support cover removed |
H |
View with steering wheel removed |
