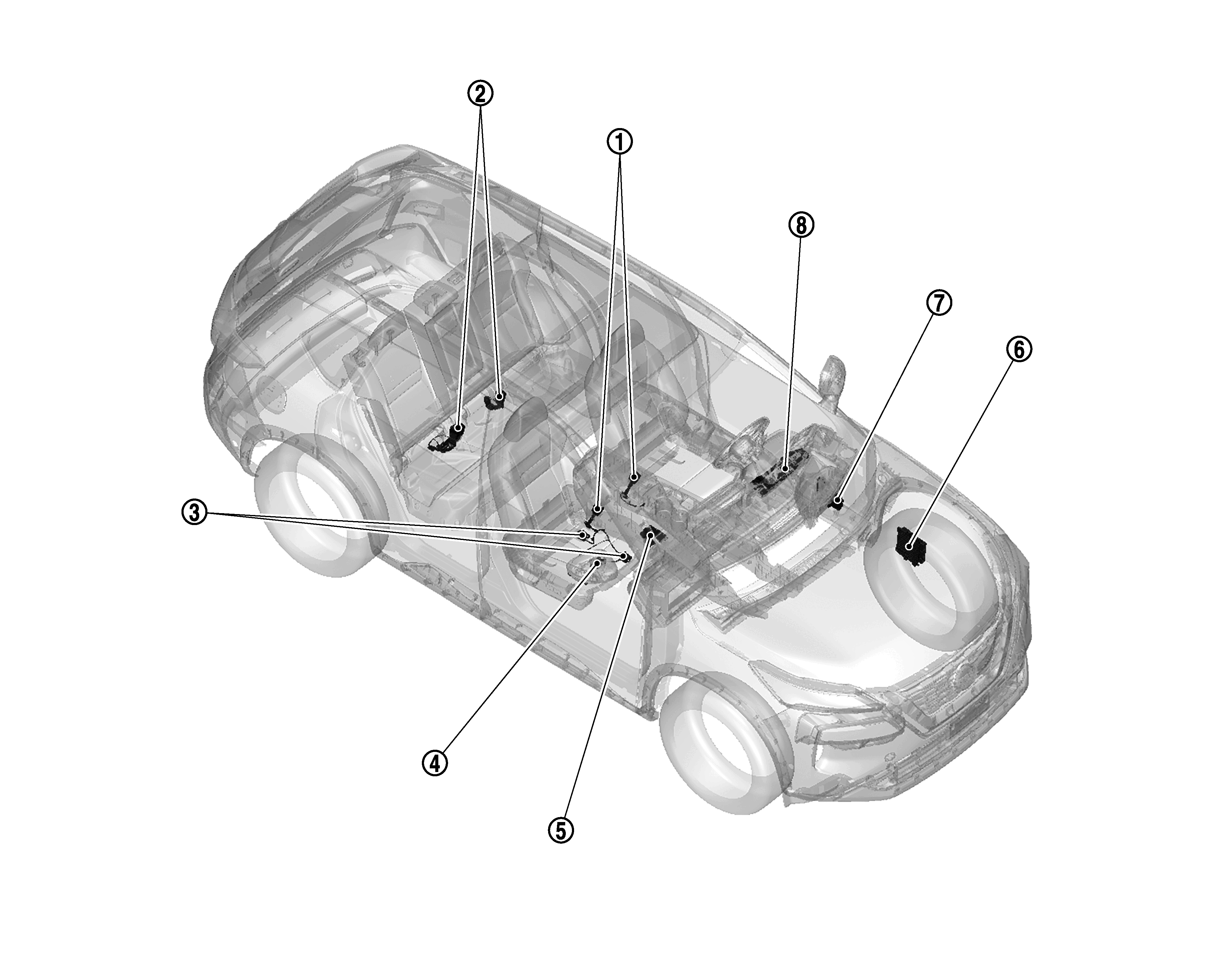

| 1. |
Front seat belt buckle switch LH |
Refer to Seat Belt Buckle Switch . |
| Front seat belt buckle switch RH |
| 2. |
Rear seat belt buckle switch LH |
| Rear seat belt buckle switch RH and CTR |
| 3. |
Occupant detection system sensor |
Refer to Component Location
for detailed component location. |
| 4. |
Occupant detection system control unit |
| 5. |
Air bag diagnosis sensor unit |
| 6. |
ECM (Engine Control Module) |
Refer to Component Location
for detailed component location. |
| 7. |
BCM (Body Control Module) |
Refer to Component Location
for detailed component location. |
| 8. |
Combination meter |
Refer to Component Location
(full TFT meter) or Component Location
(7 inch information display) for detailed component location. |
