Hood Switch

Hood switch is located under front of hood.

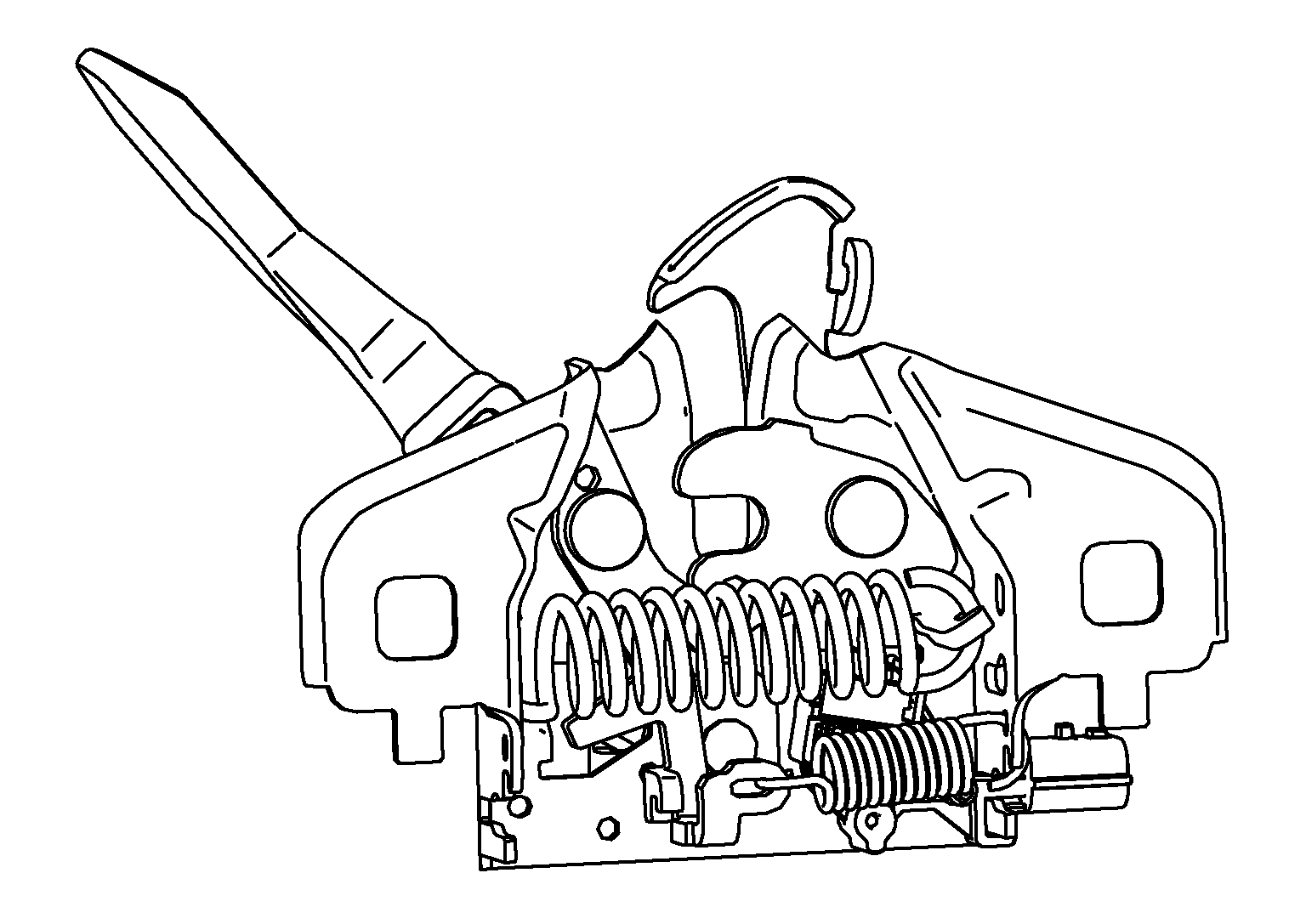

Hood switch is integrated into hood lock assembly. Hood switch detects that hood is open and then transmits ON/OFF signal to IPDM E/R. IPDM E/R transmits hood switch signal to BCM via CAN communication.

GNSDB133577

Courtesy of NISSAN NORTH AMERICA, INC.
