Exploded View

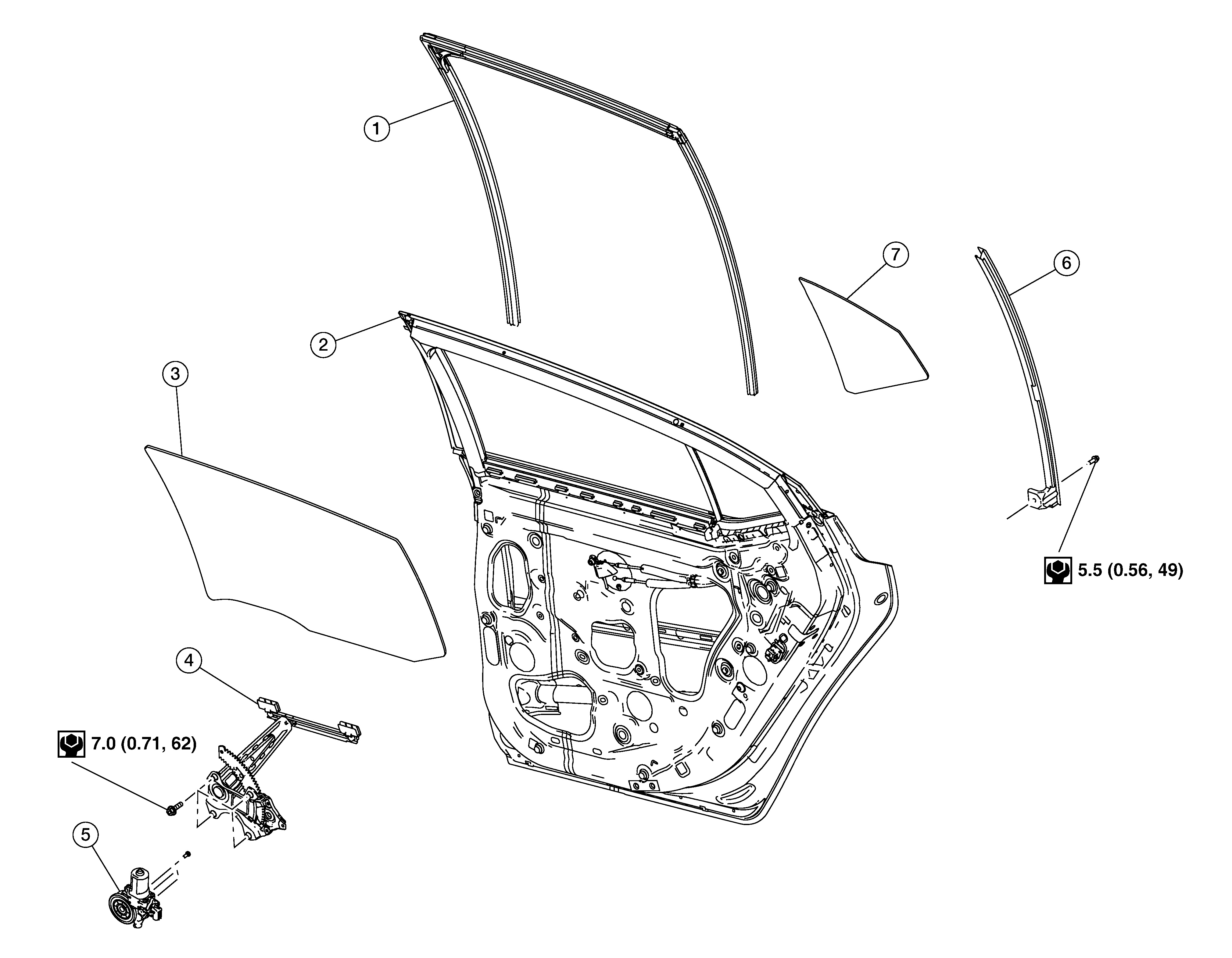

Fig 1: Rear Regulator With Torque Specifications

GNSDB132983

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Door glass rubber run	2.	Rear door panel	3.	Door glass
4.	Door glass regulator	5.	Rear power window motor	6.	Door glass rear run
7.	Partition glass
