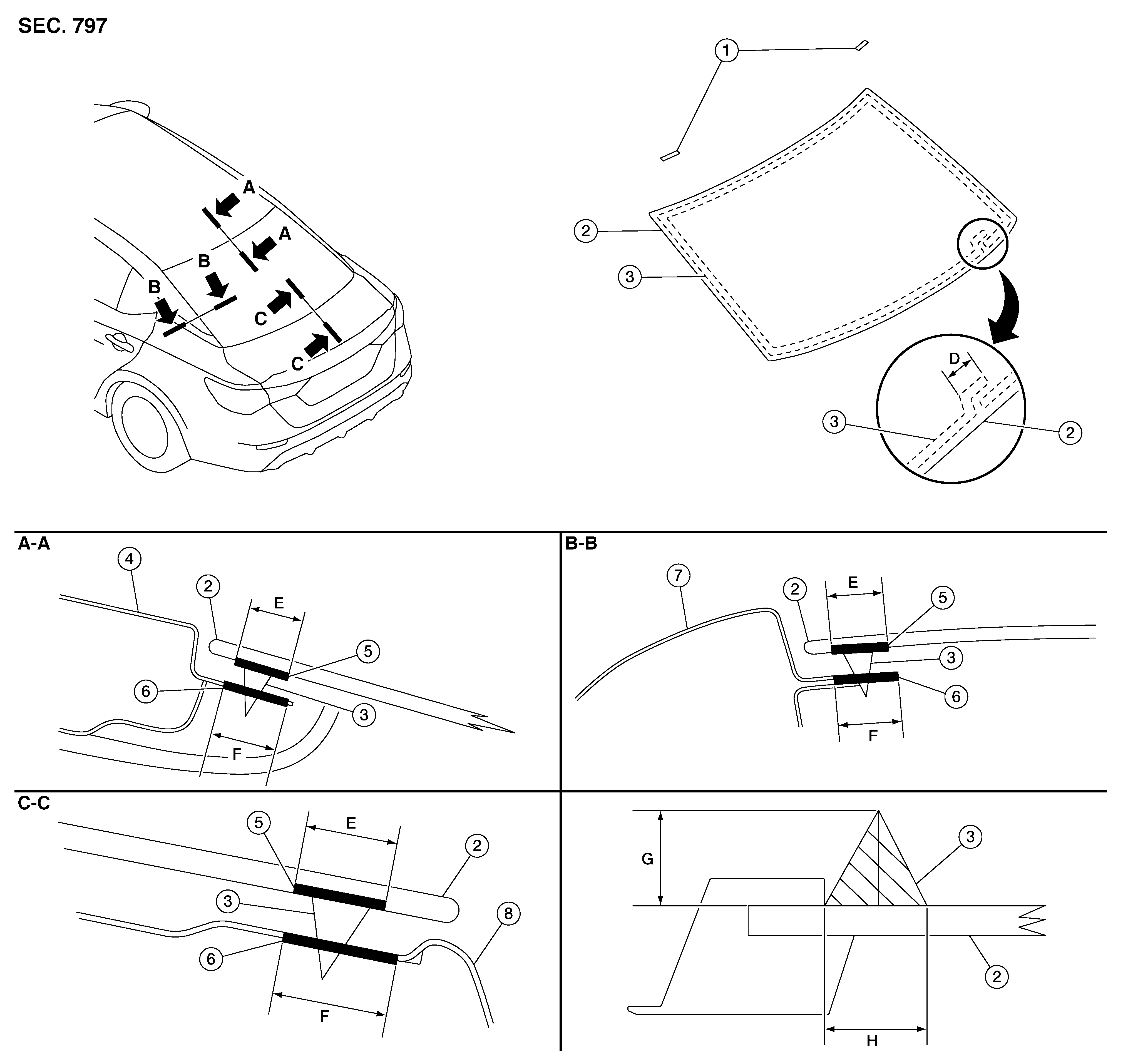

Exploded View

GNSDB133013

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Spacer	2.	Rear window glass	3.	Adhesive
4.	Roof panel	5.	Glass primer	6.	Body primer
7.	Body side outer	8.	Body side outer	D.	30 mm (1.2 in)
E.	13 mm (0.51 in)	F.	15 mm (0.59 in)	G.	14 mm ± 1.0 mm (0.55 ± 0.03)
H.	8.0 mm ± 1.0 mm (0.31 ± 0.03)
