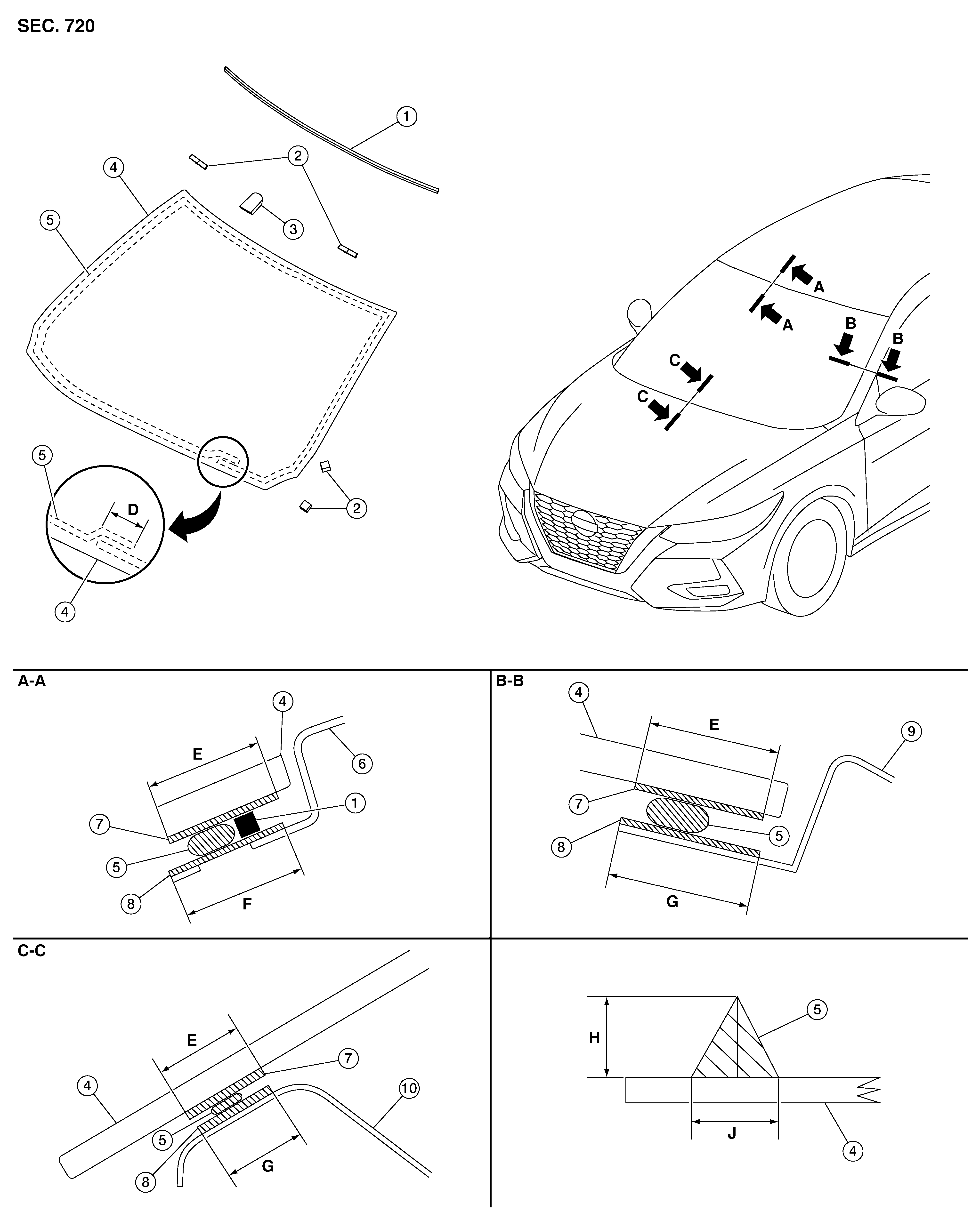

Exploded View
| 1. | Dam sealant rubber (upper) | 2. | Spacer | 3. | Inside mirror base |
| 4. | Windshield glass | 5. | Adhesive | 6. | Roof panel |
| 7. | Glass primer | 8. | Body primer | 9. | Body side outer panel |
| 10. | Cowl top cover | D. | 30 mm (1.2 in) | E. | 16.2 mm (0.63 in) |
| F. | 15.4 mm (0.60 in) | G. | 13.0 mm (0.51 in) | H. | 14 mm ± 1.0 mm (0.55 ± 0.03) |
| J. | 8.0 mm ± 1.0 mm (0.31 ± 0.03) | ||||
