Exploded View

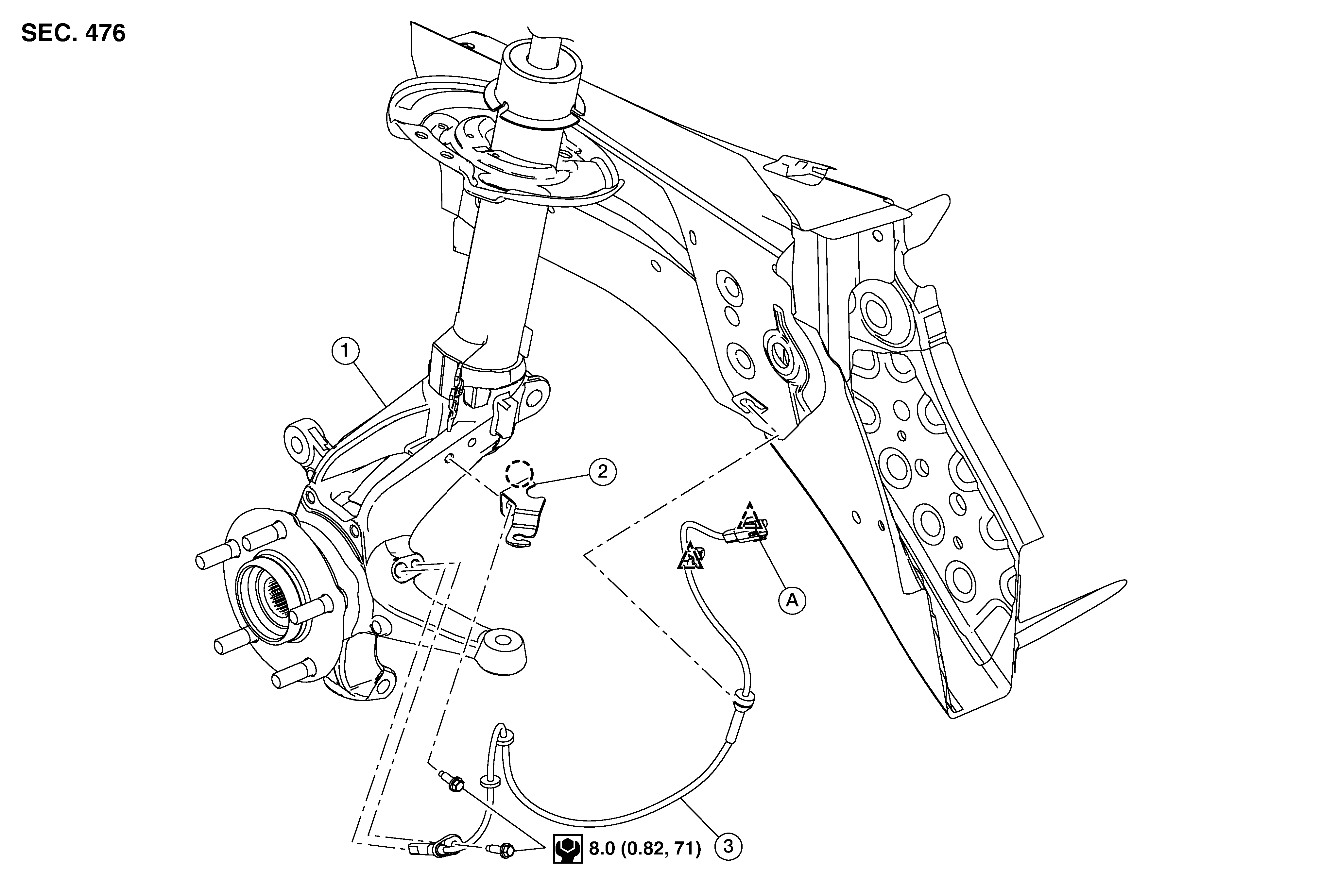

Fig 1: Front Wheel Sensor With Torque Specifications
GNSDB133662Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering knuckle 2. Sensor bracket 3. Front wheel sensor
A. Harness connector SYMBOL Pawl SYMBOL Clip
