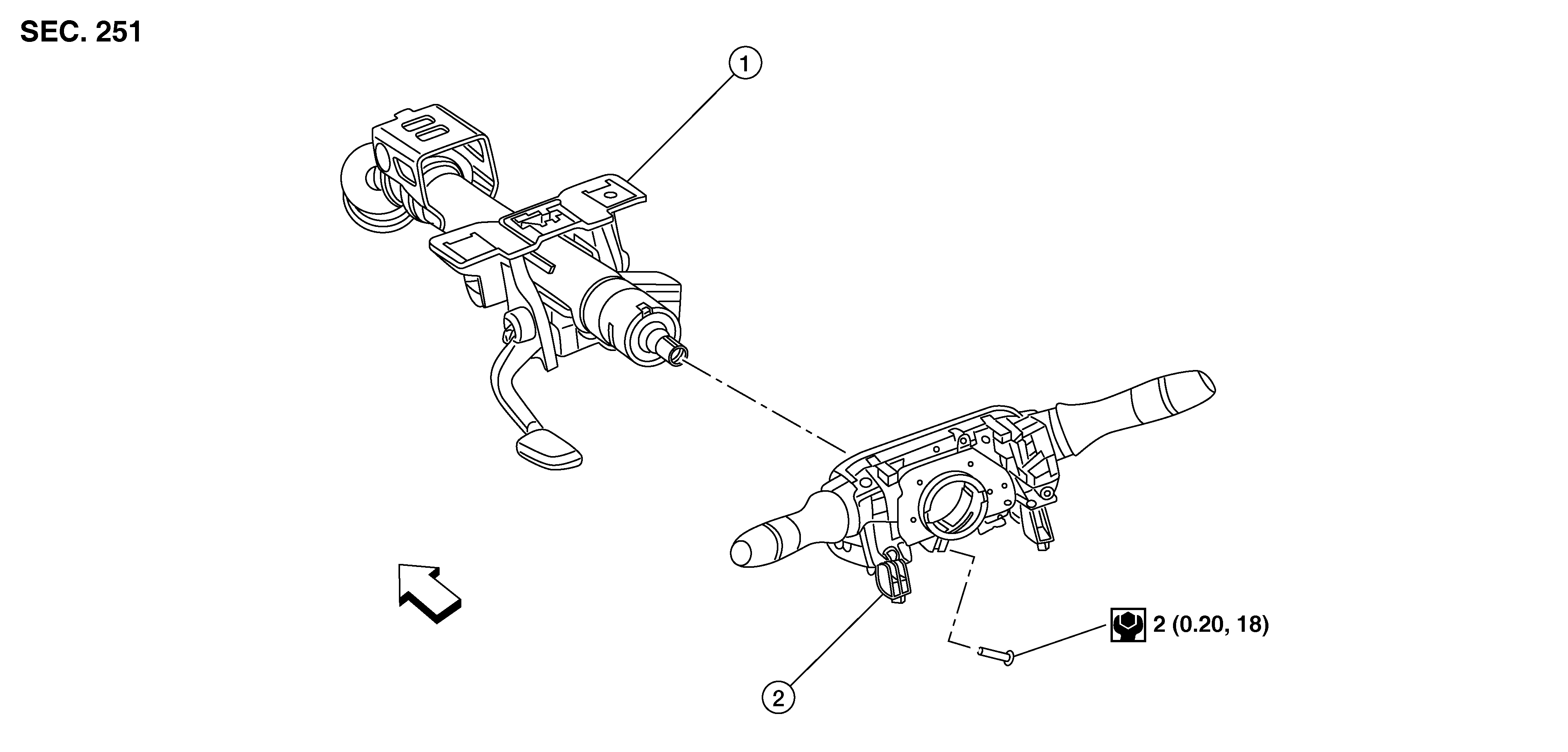

Exploded View

Fig 1: Combination Switch With Torque Specifications

GNSDB133336

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Combination switch

Front

NOTE:

Shown with the steering wheel removed for clarity only.
