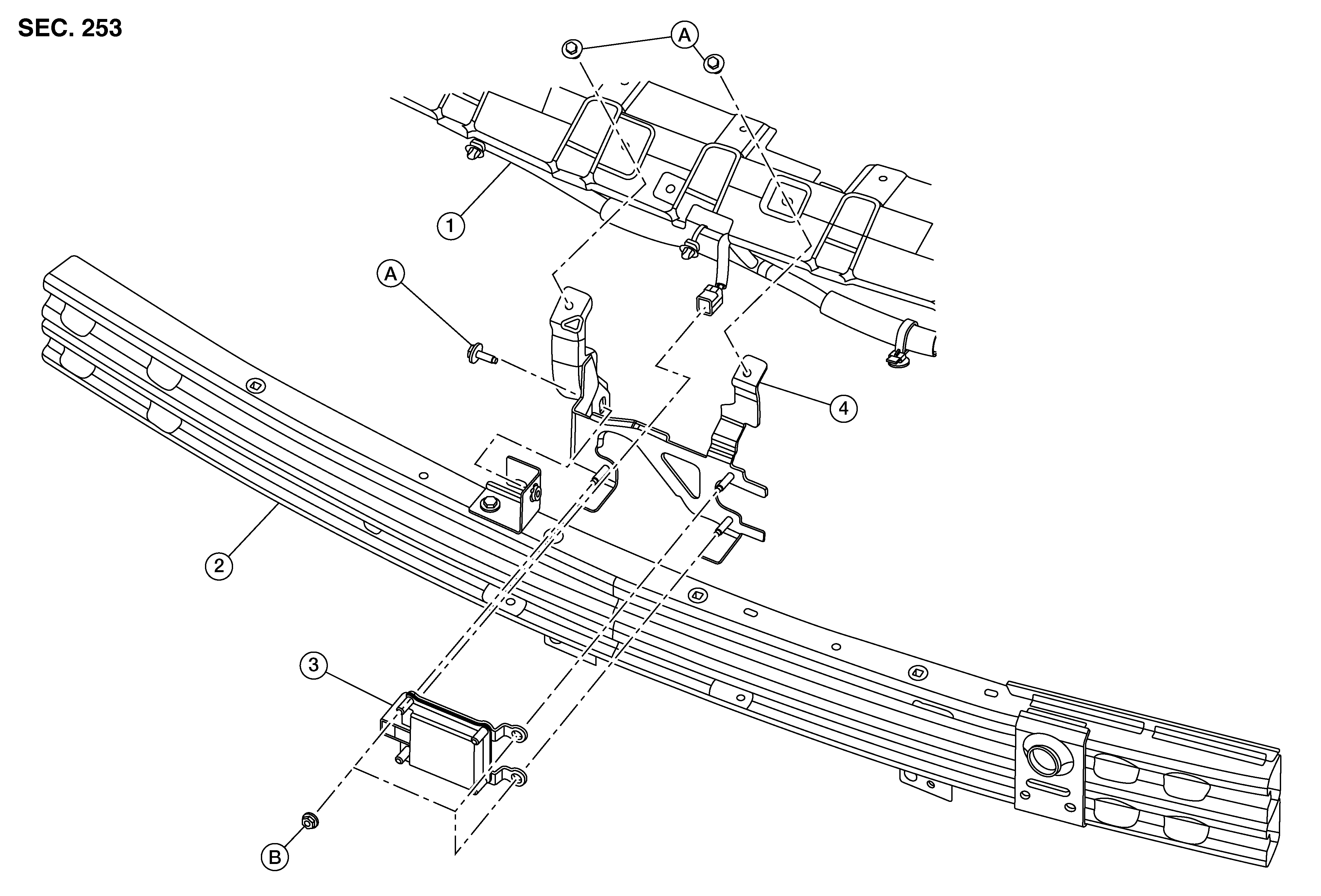

Exploded View
WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Front bumper fascia retainer | 2. | Front bumper reinforcement (upper) | 3. | Distance sensor |
| 4. | Distance sensor bracket | A. | Refer to Removal and Installation . | B. | Refer to Removal and Installation . |
