Removal and Installation
WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
REMOVAL
CAUTION:
Be sure to perform "ADDITIONAL SERVICE WHEN REPLACING ADAS CONTROL UNIT" when replacing ADAS control unit. Refer to Description .
- Remove instrument panel assembly. Refer to Removal and Installation .

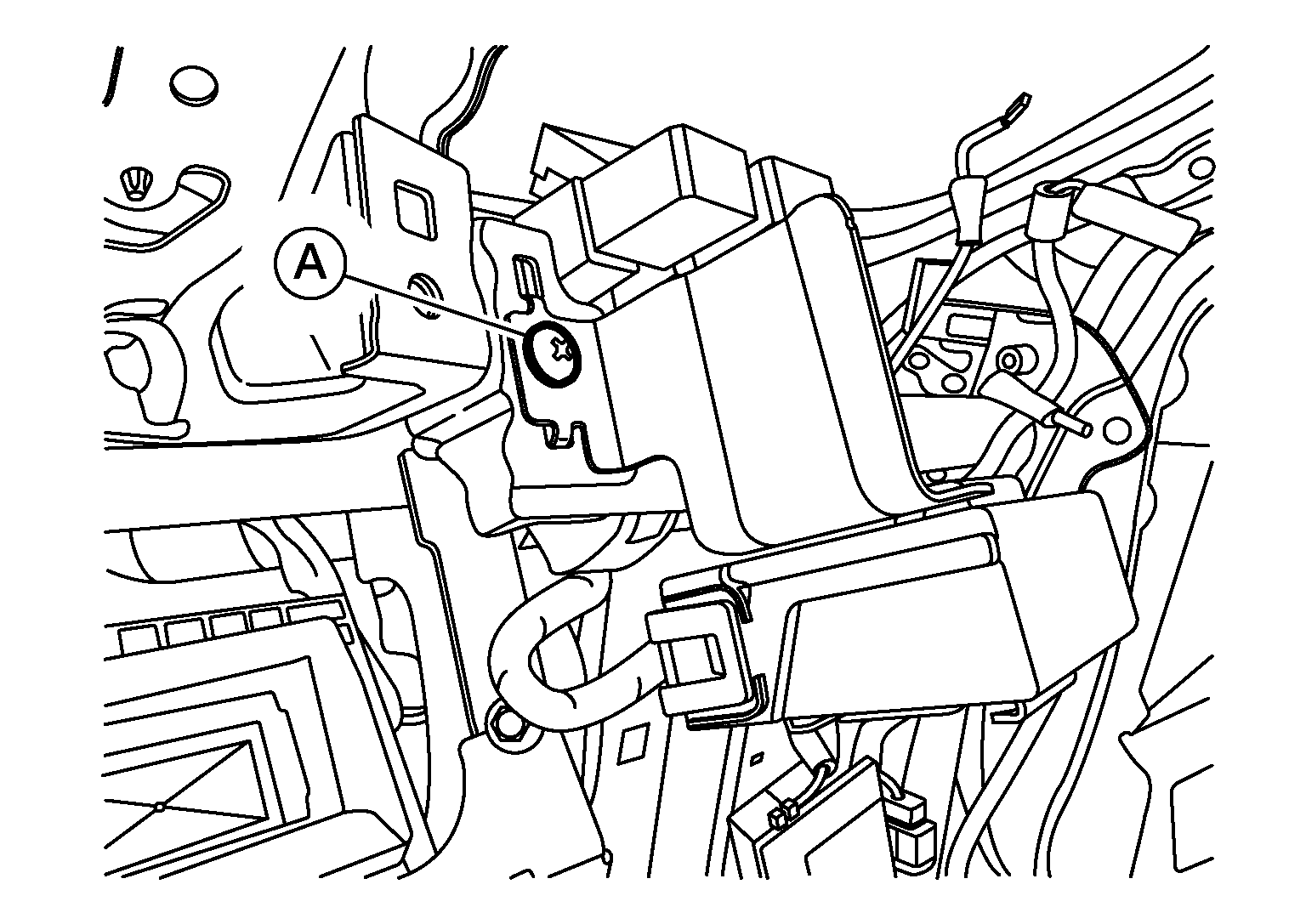

- Remove screw (A).
- Disconnect harness connector from ADAS control unit and remove ADAS control unit.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Be sure to perform "ADDITIONAL SERVICE WHEN REPLACING ADAS CONTROL UNIT" when replacing ADAS control unit. Refer to Description .
