Exploded View

WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

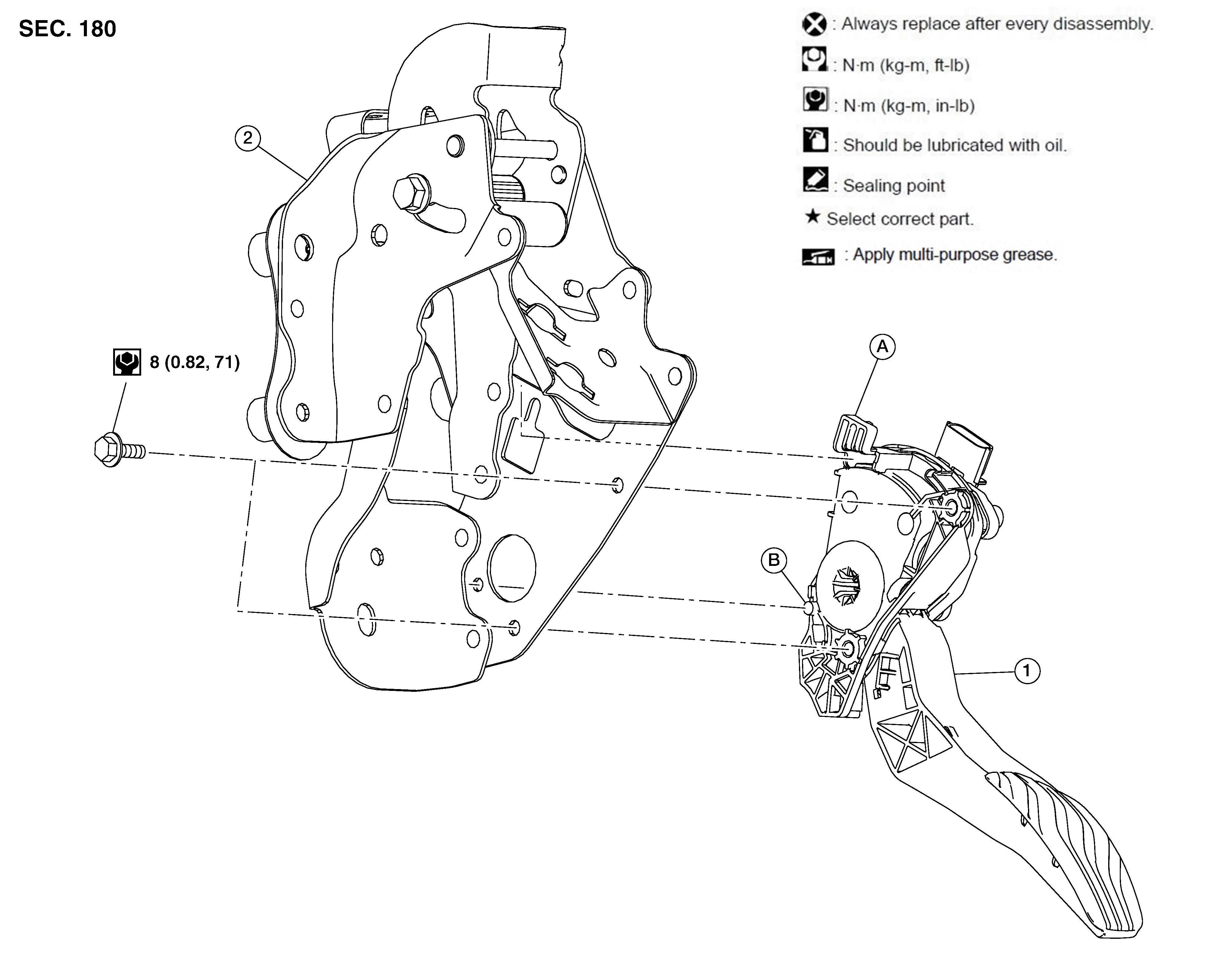

Fig 1: Accelerator Pedal Assembly With Torque Specifications

Courtesy of NISSAN

1.	Accelerator pedal assembly	2.	Brake pedal bracket	A.	Locating hook
B.	Locating pin
