Exploded View

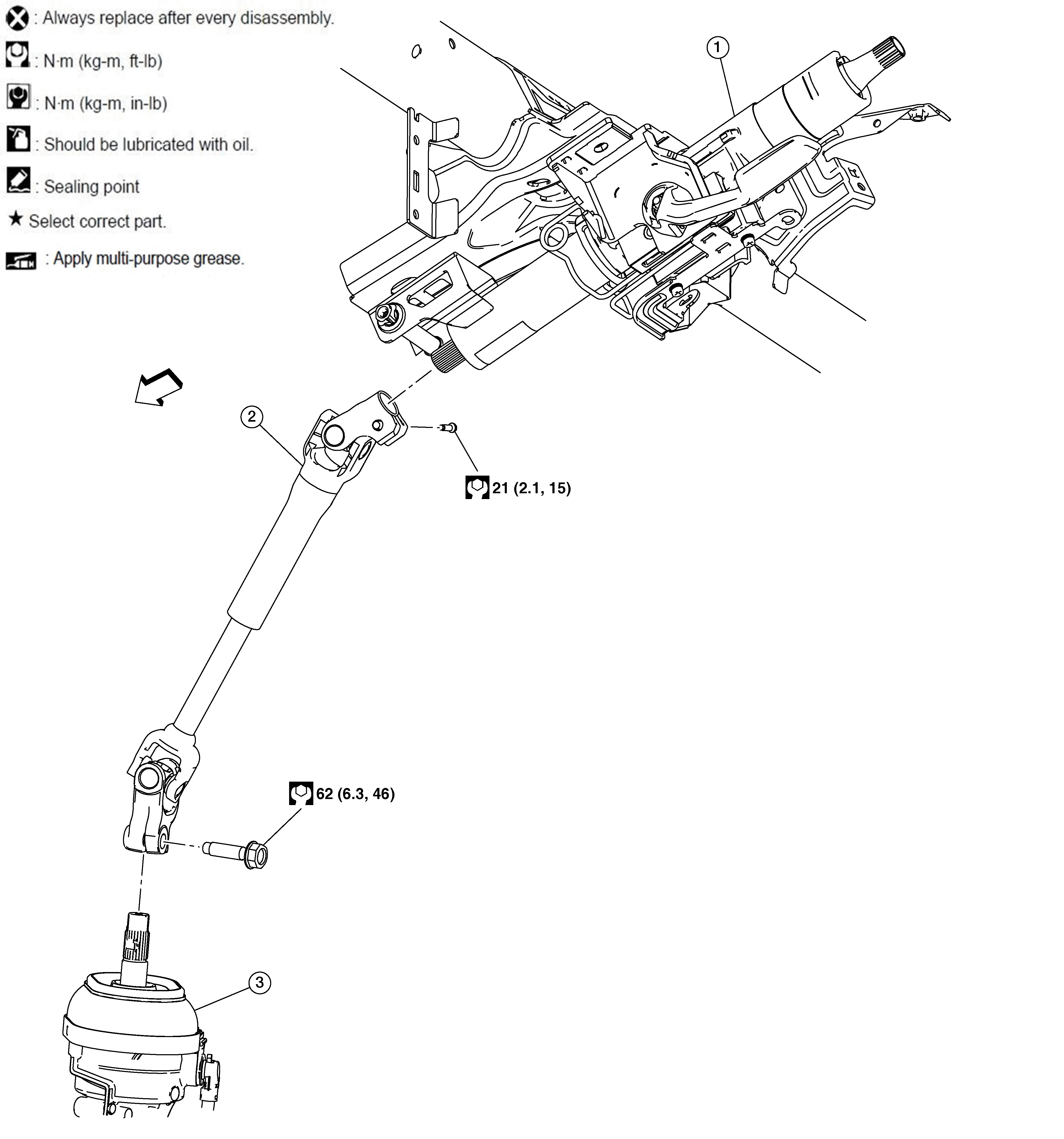

Fig 1: Lower Joint With Torque Specifications
GNSDB133188Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column 2. Lower joint 3. Steering gear
SYMBOL Front
