Steering Wheel
›
Exploded View
Exploded View

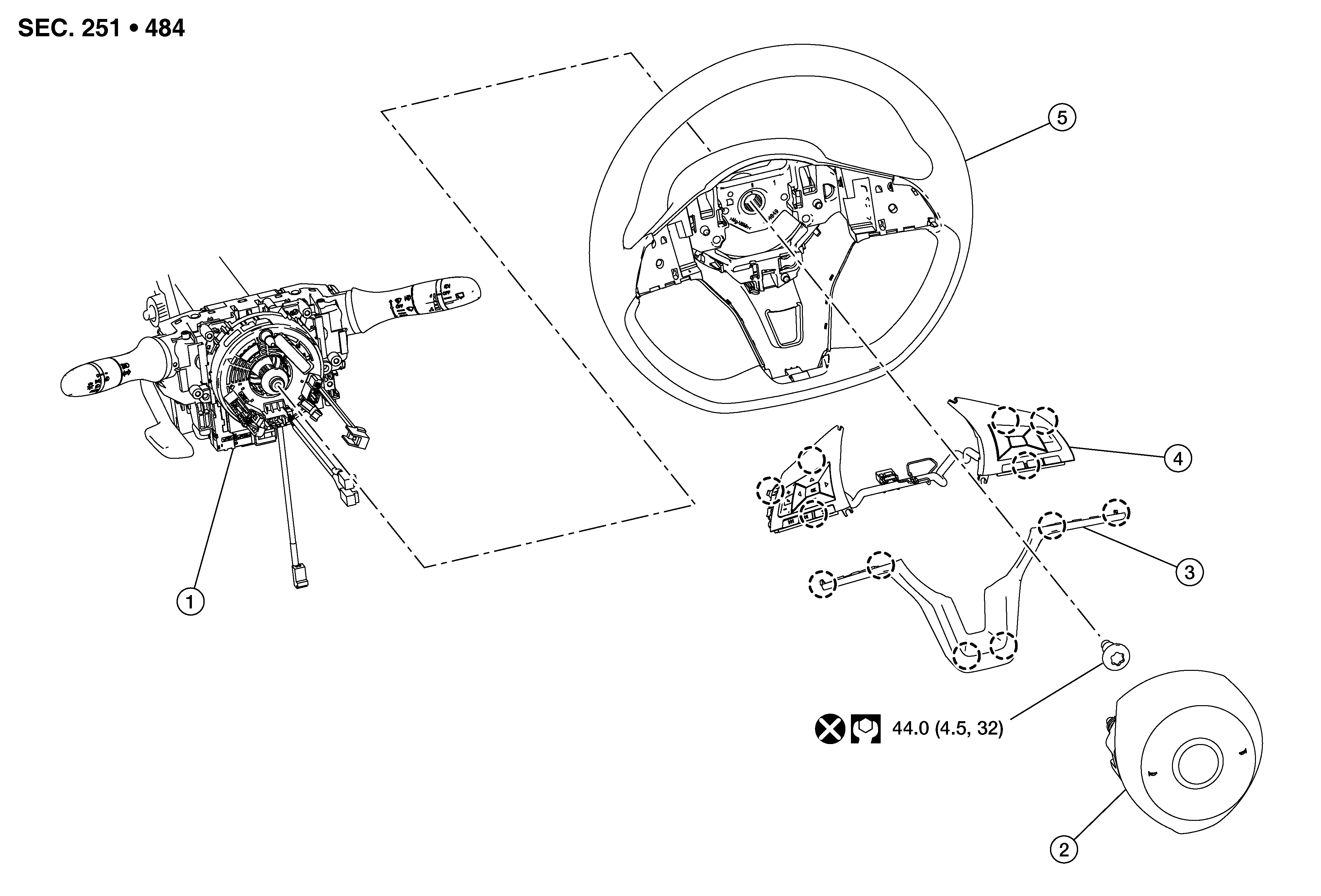

Fig 1: Steering Wheel With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column assembly
2.
Driver air bag module
3.
Finisher
4.
Steering switches
5.
Steering wheel
Pawl
Courtesy of NISSAN NORTH AMERICA, INC.
