Exploded View

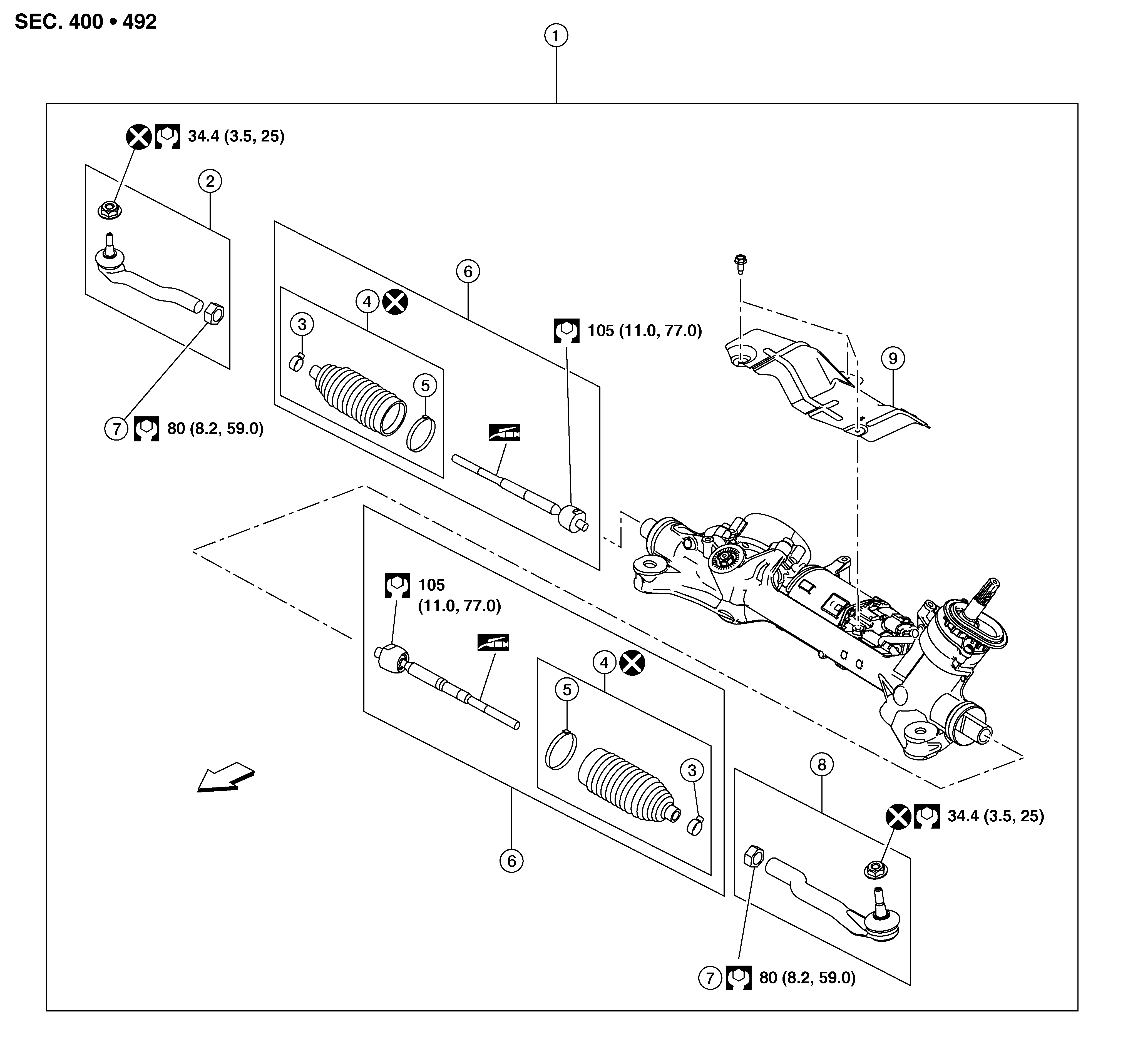

Fig 1: Steering Gear And Linkage With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering gear and linkage assembly	2.	Outer socket (RH)	3.	Small boot clamp
4.	Boot kit	5.	Large boot clamp	6.	Inner socket kit
7.	Lock nut	8.	Outer socket (LH)		Front
