Exploded View

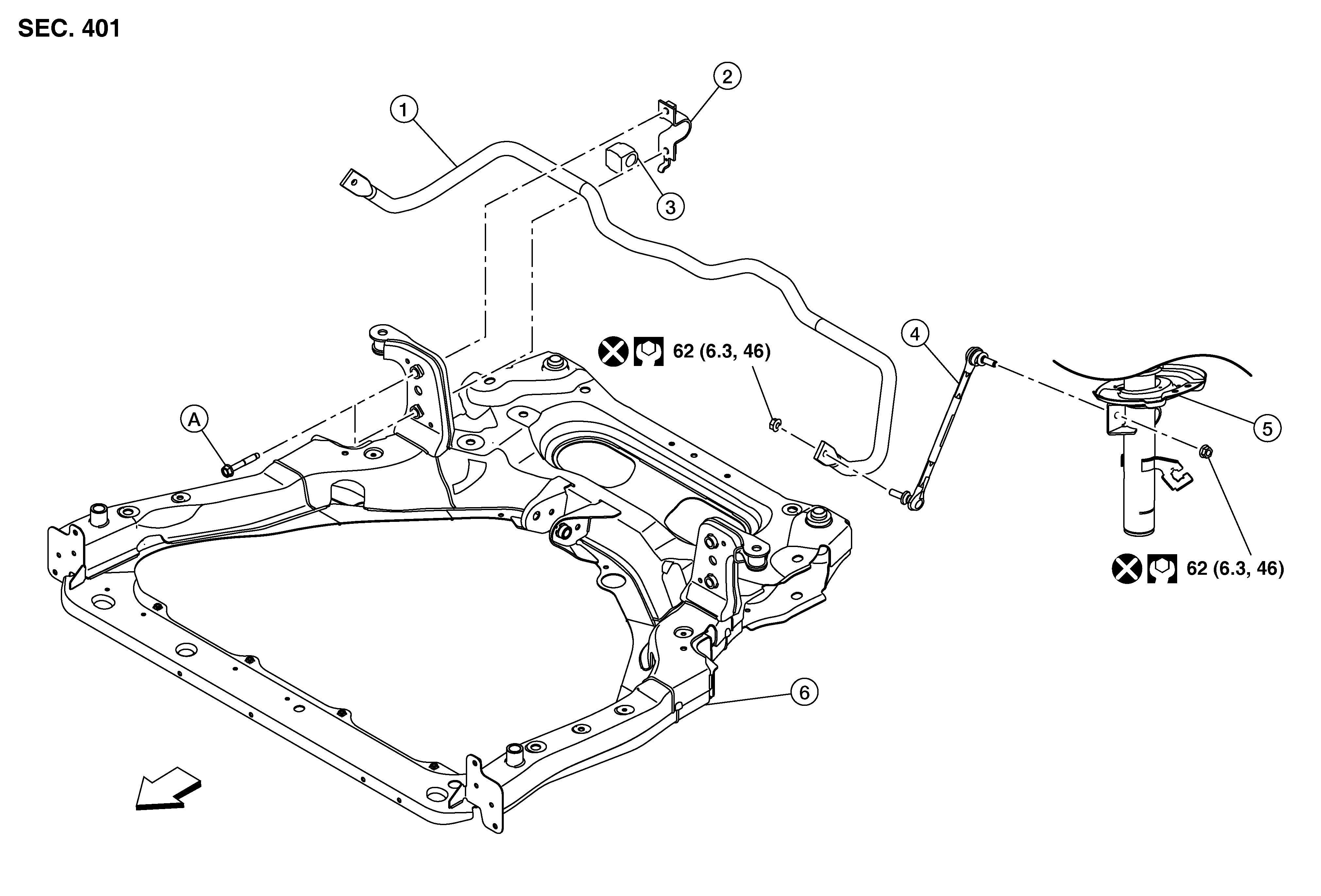

Fig 1: Front Stabilizer With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Stabilizer bar	2.	Stabilizer clamp	3.	Stabilizer bushing
4.	Stabilizer connecting rod	5.	Front strut	6.	Front suspension member
A.	Refer to Removal and Installation .		Front
