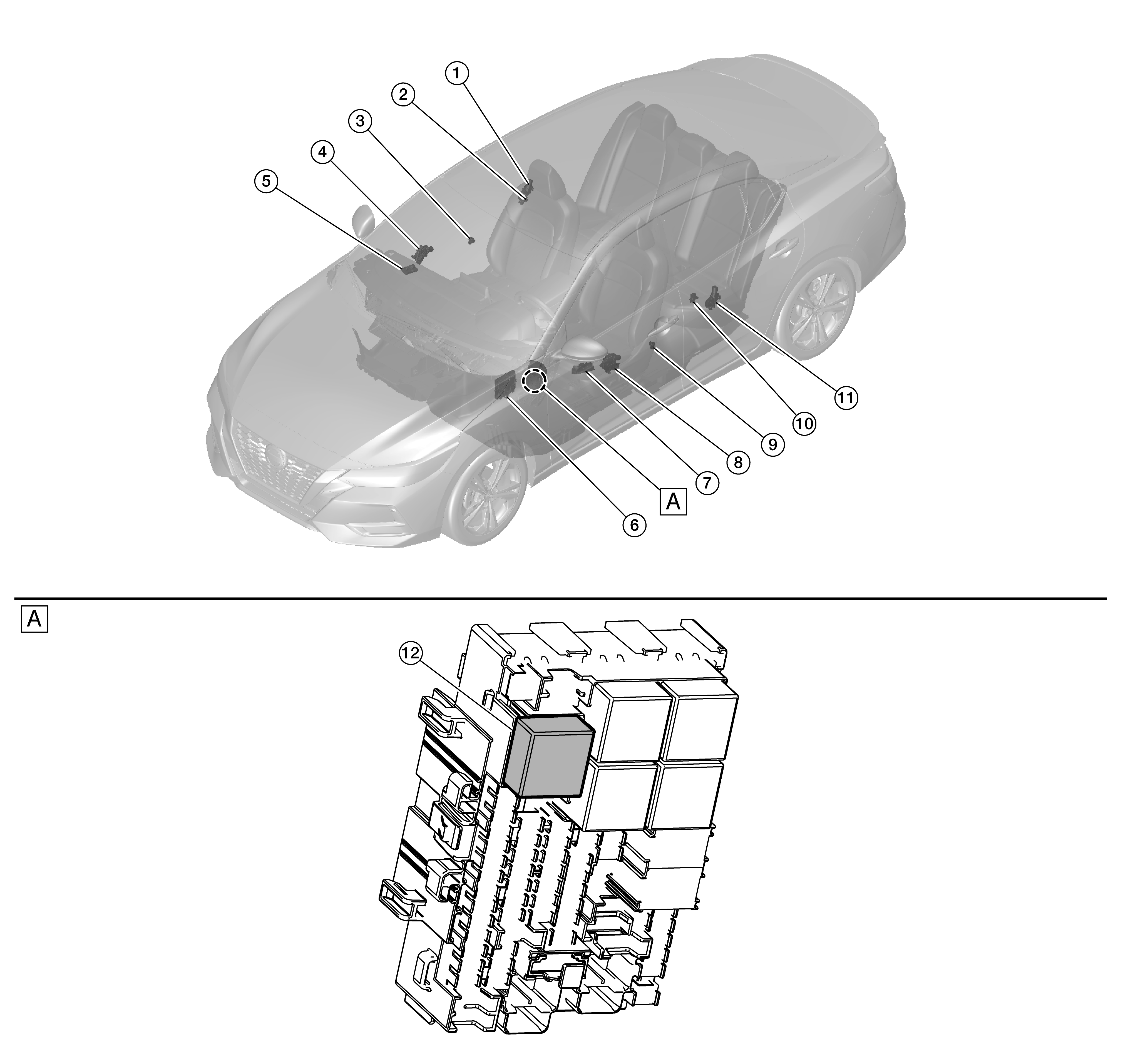

| 1. |
Rear power window motor RH |
Refer to Rear Power Window Motor LH/RH . |
| 2. |
Rear power window switch RH |
Refer to Rear Power Window Switch LH/RH . |
| 3. |
Front door switch RH |
Detects door open/close condition and transmits the signal to the BCM. Refer to
Front Door Switch
for detailed component location. |
| 4. |
Front power window motor RH |
Refer to Front Power Window Motor RH . |
| 5. |
Power window and door lock/unlock switch RH |
Refer to Power Window and Door Lock/Unlock Switch RH . |
| 6. |
BCM (Body Control Module) |
- Supplies power supply to the power window switch.
- Controls retained power window relay.
Refer to Component Location
for detailed component location. |
| 7. |
Main power window and door lock/unlock switch |
Refer to Main Power Window and Door Lock/Unlock Switch . |
| 8. |
Front power window motor LH |
Refer to Front Power Window Motor LH . |
| 9. |
Front door switch LH |
Detects door open/close condition and transmits the signal to the BCM. Refer to
Front Door Switch
for detailed component location. |
| 10. |
Rear power window switch LH |
Refer to Rear Power Window Switch LH/RH . |
| 11. |
Rear power window motor LH |
Refer to Rear Power Window Motor LH/RH . |
| 12. |
Power window relay |
Supplies power to the power window switches, for power window motor operation. |
