Exploded View

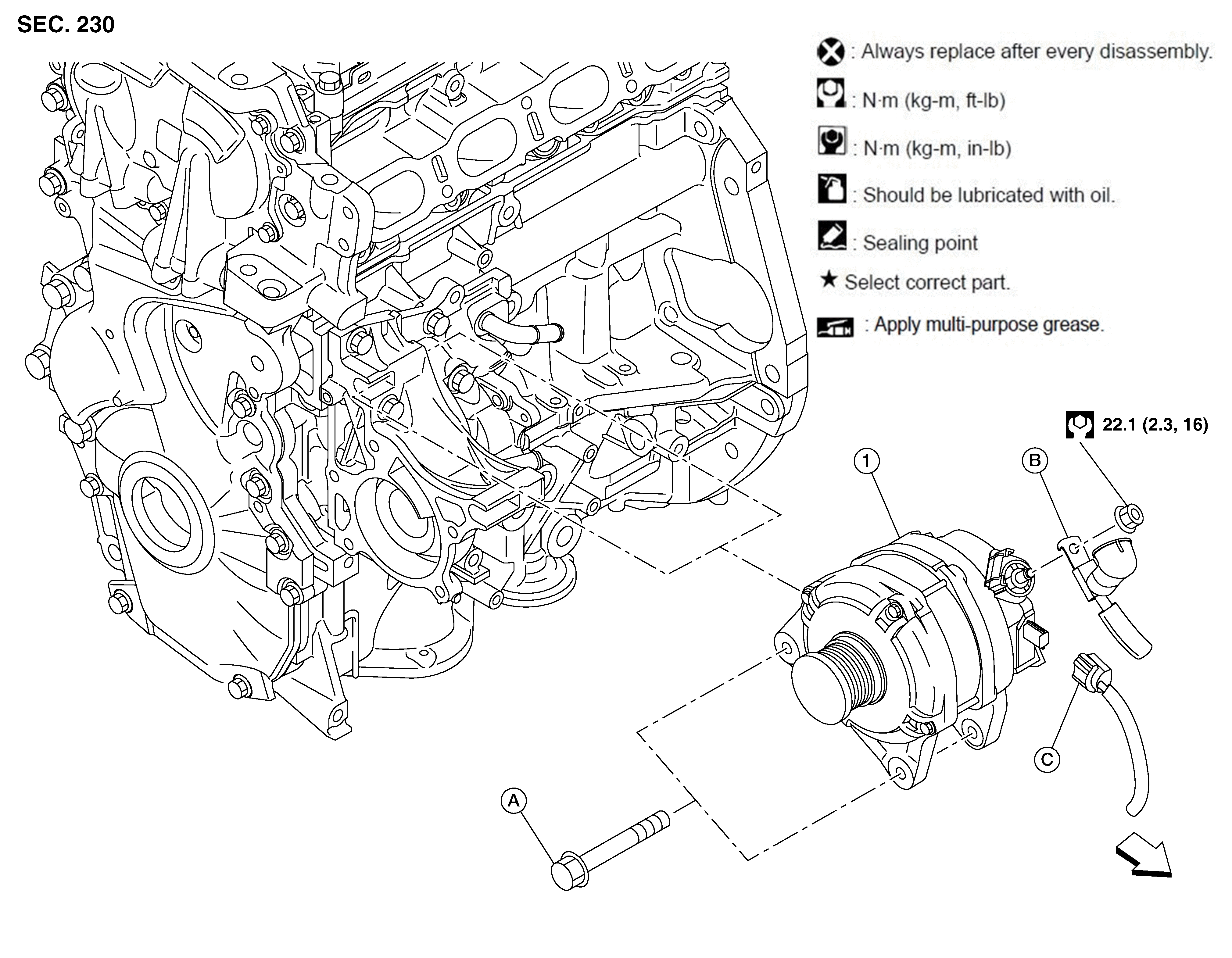

Fig 1: Generator With Torque Specifications
GNSDB133878SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.
1. Generator A. Refer to Removal and Installation. . B. "B" terminal harness
C. Harness connector SYMBOL Front
