Exploded View

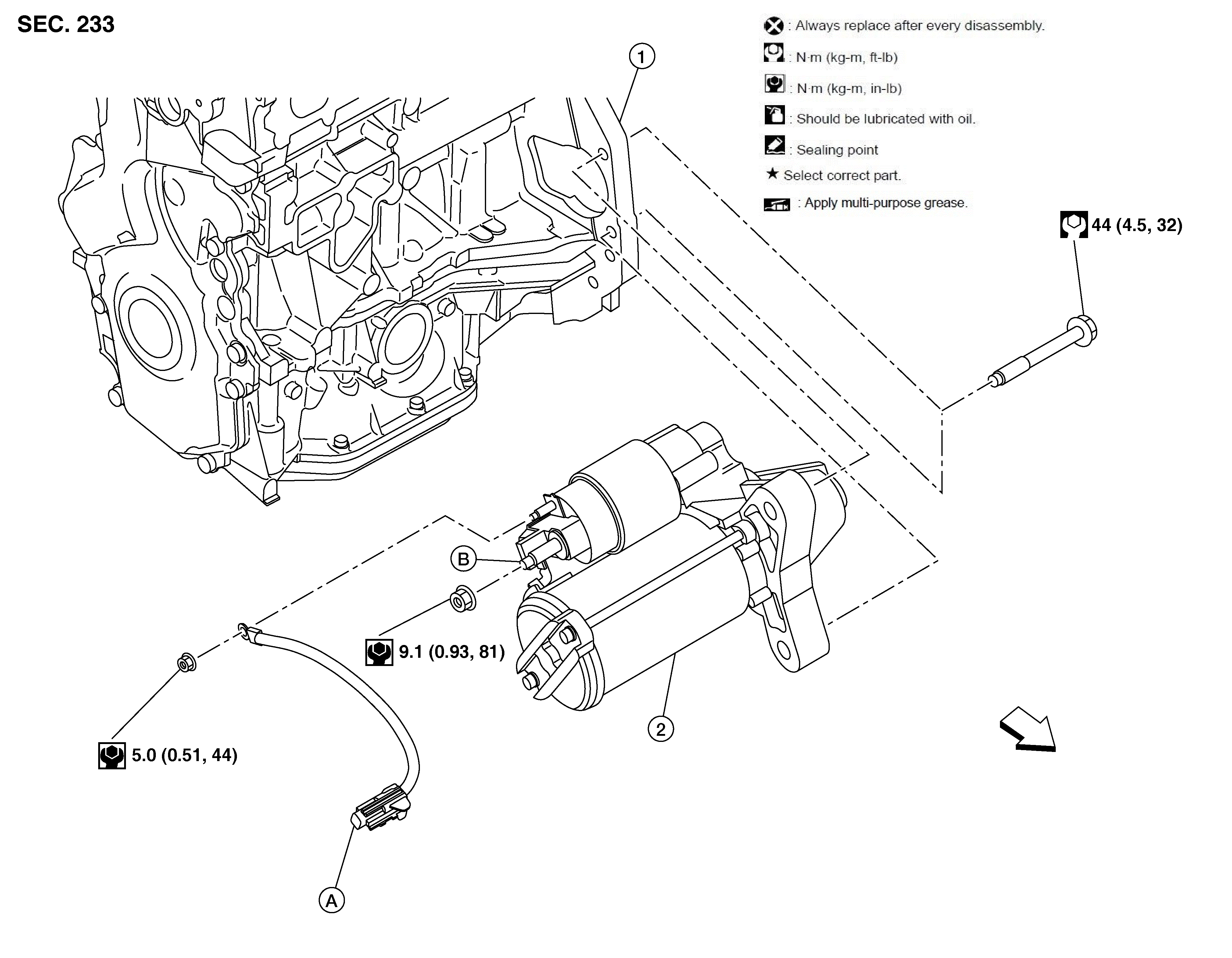

Fig 1: Starter Motor With Torque Specifications
GNSDB134121SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.
1. Cylinder block 2. Starter motor A. Terminal "S" harness
B. Terminal "B" SYMBOL Front
