Exploded View

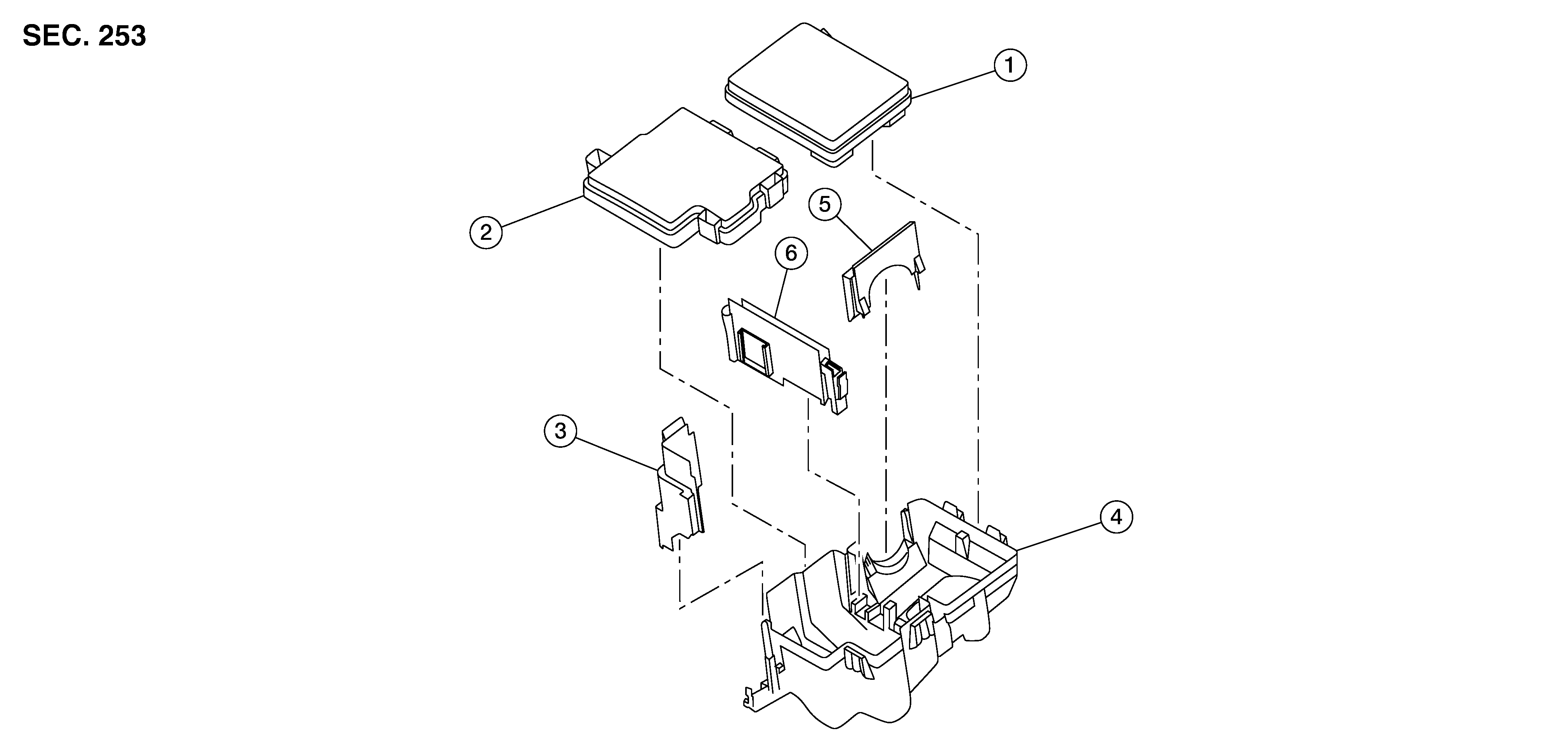

GNSDB133428Courtesy of NISSAN NORTH AMERICA, INC.
1. IPDM E/R 2. IPDM E/R cover A 3. IPDM E/R harness cover B
4. IPDM E/R case 5. IPDM E/R harness cover C 6. IPDM E/R harness cover D
