System Description
WARNING: This page is about a different car, the 2023 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
DESIGN/PURPOSE
The ECO mode indicator informs the driver that the vehicle is in ECO mode.
OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIGNAL
For actions on CAN communications blackout in the combination meter, Refer to Fail-Safe Combination meter (Type A) or Fail-Safe Combination meter (Type B).

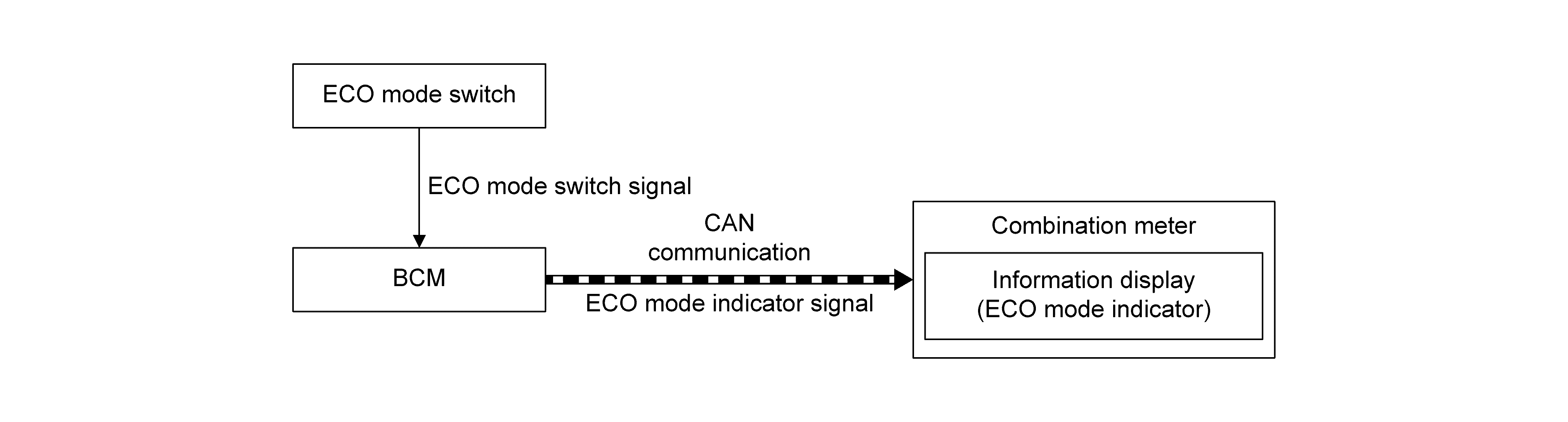

SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
| Signal name | Input | Output | Description |
|---|---|---|---|
| ECO mode indicator signal | Combination meter (CAN) | BCM | Transmits ECO mode indicator signal to combination meter via CAN communication. |
SIGNAL PATH
- BCM receives the ECO mode switch signal (ON/OFF) by hard wire.
- BCM transmits ECO mode indicator signal to combination meter via CAN communication. Combination meter illuminates ECO mode indicator according to the signal.
LIGHTING CONDITION
When all of the following conditions are satisfied.
- Ignition switch: ON
- The ECO mode switch is pressed when the ECO mode indicator is OFF
SHUTOFF CONDITION
When any of the condition listed below is satisfied.
- Ignition switch: Other than ON
- The ECO mode switch is pressed when the ECO mode indicator is ON.

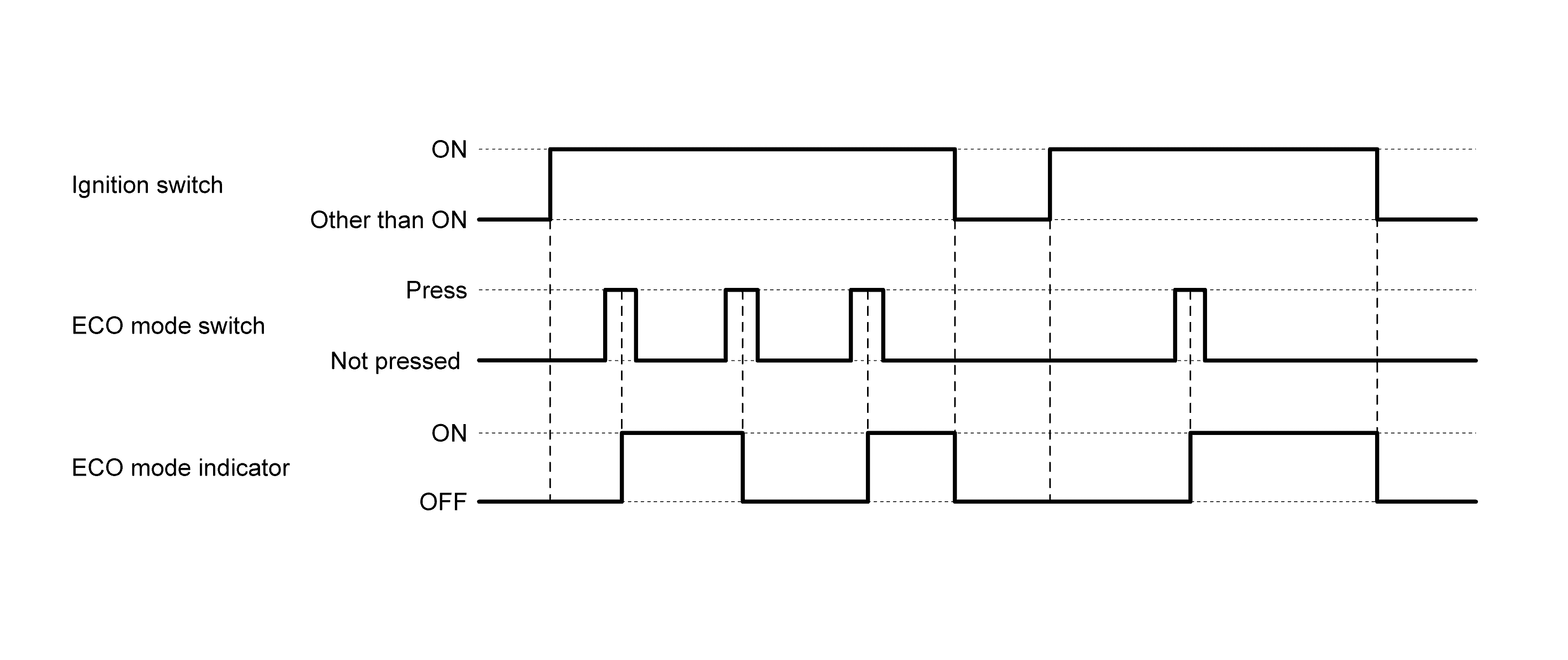

TIMING CHART
