Exploded View

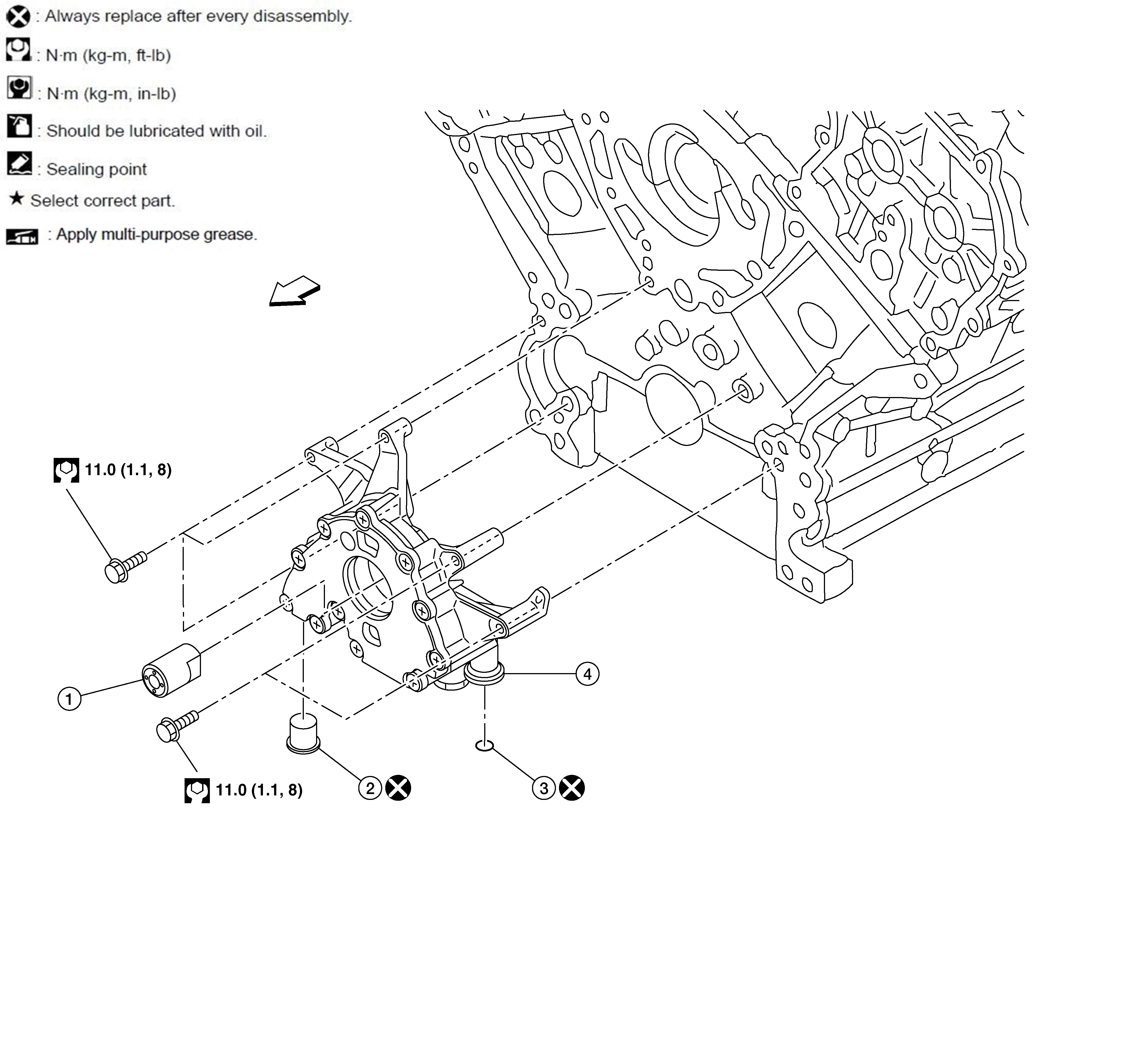

Fig 1: Oil Pump With Torque Specifications
GNSDB151092Courtesy of NISSAN NORTH AMERICA, INC.
1. Oil pump drive spacer 2. O-ring 3. O-ring
4. Oil pump assembly SYMBOL Front
