Exploded View

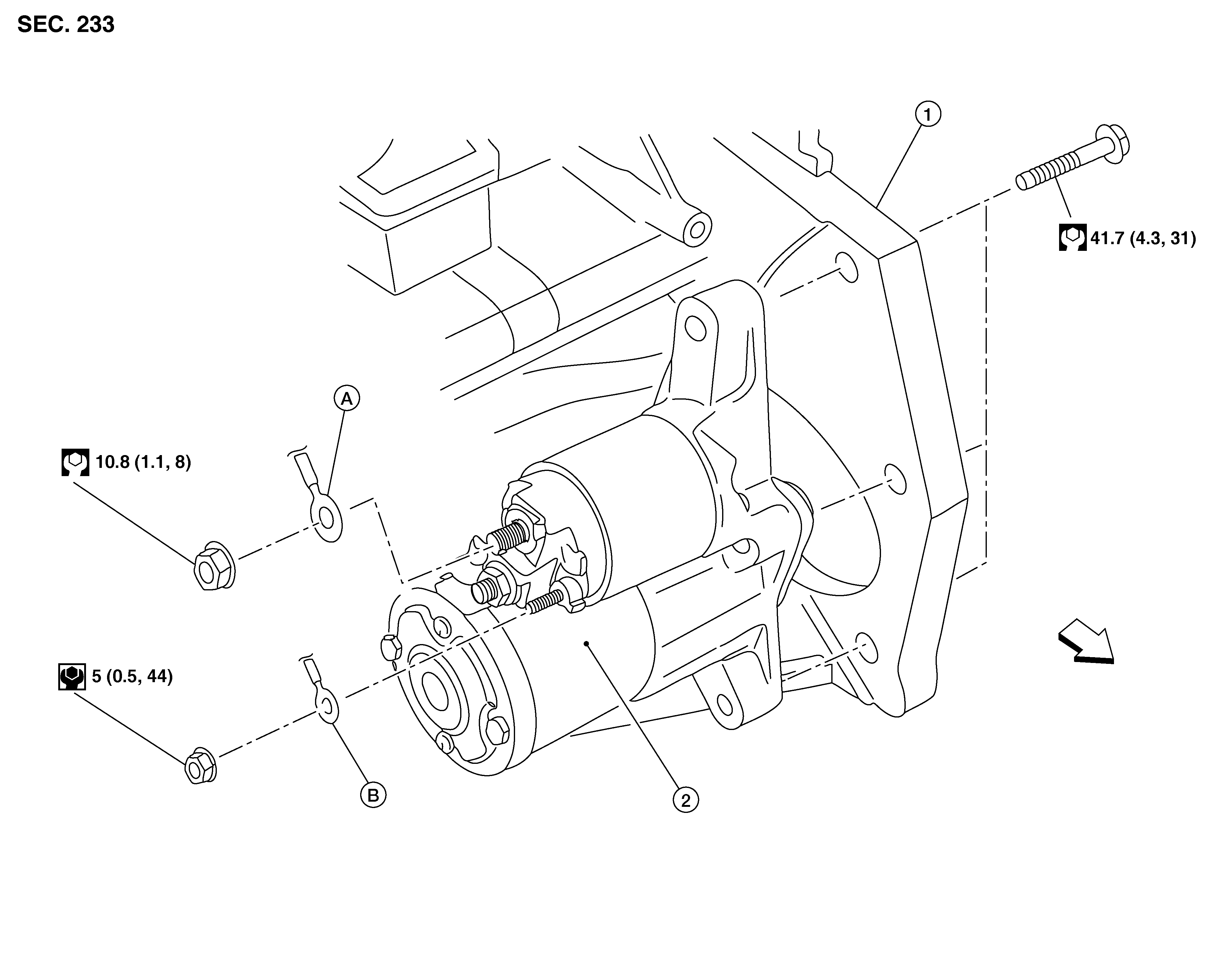

Fig 1: Starter Motor With Torque Specifications
GNSDB128551SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.
1. Cylinder block 2. Starter motor A. "B" terminal harness
B. "S" terminal harness SYMBOL Front
