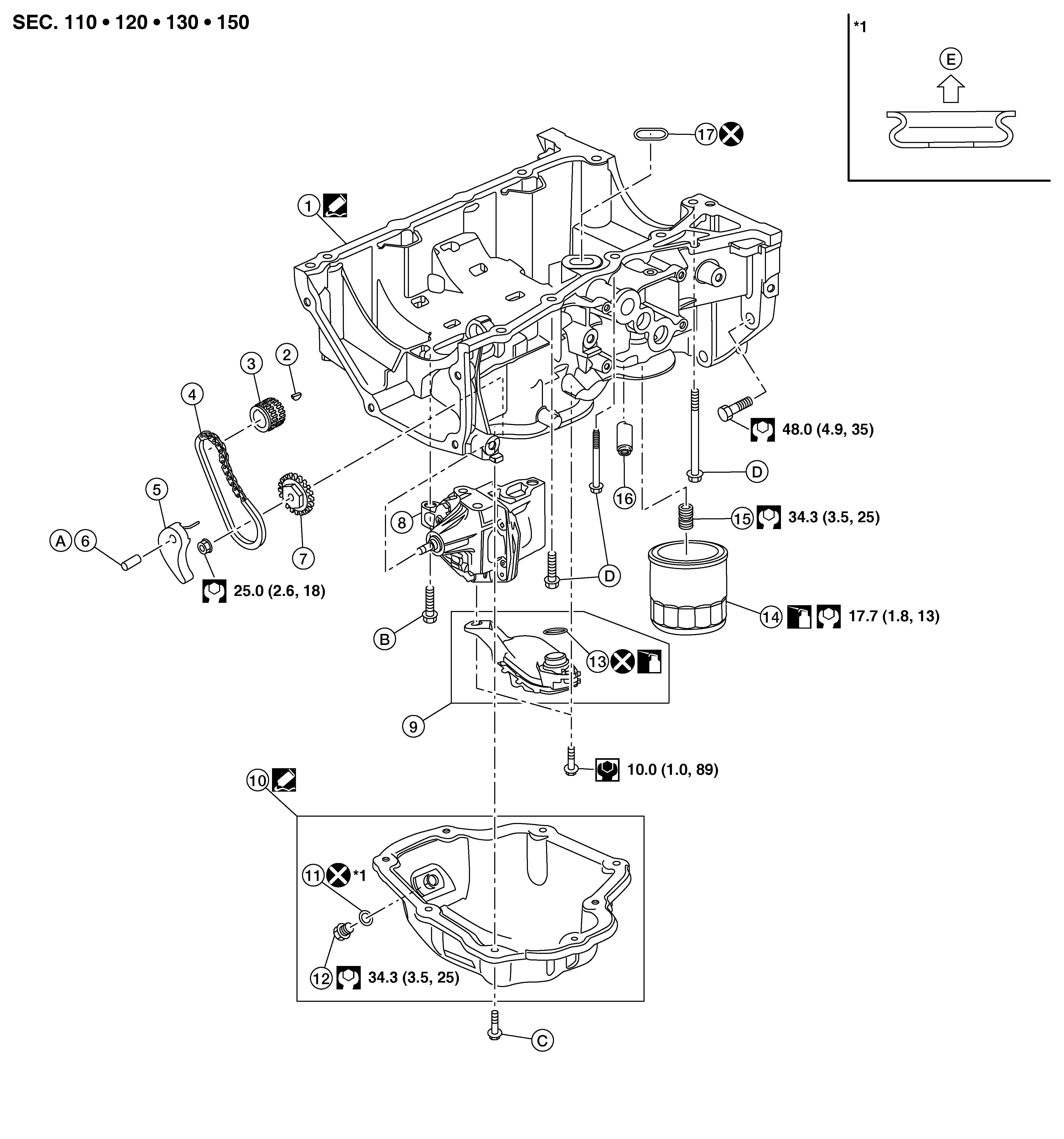

| 1. |
Oil pan (upper) |
2. |
Crankshaft key |
3. |
Crankshaft sprocket |
| 4. |
Oil pump drive chain |
5. |
Oil pump chain tensioner (for oil pump drive chain) |
6. |
Oil pump chain tensioner shaft |
| 7. |
Oil pump sprocket |
8. |
Oil pump |
9. |
Oil strainer |
| 10. |
Oil pan (lower) |
11. |
Drain plug washer |
12. |
Oil pan drain plug |
| 13. |
O-ring |
14. |
Oil filter |
15. |
Oil filter stud |
| 16. |
Relief valve |
17. |
O-ring |
18. |
Rear oil seal |
| A. |
Refer to Removal and Installation
. |
B. |
Refer to Removal and Installation . |
C. |
Refer to Removal and Installation (Lower Oil Pan)
. |
| D. |
Refer to Removal and Installation (Upper Oil Pan)
. |
E. |
Refer to Removal and Installation . |
F. |
Oil pan (lower) side |
