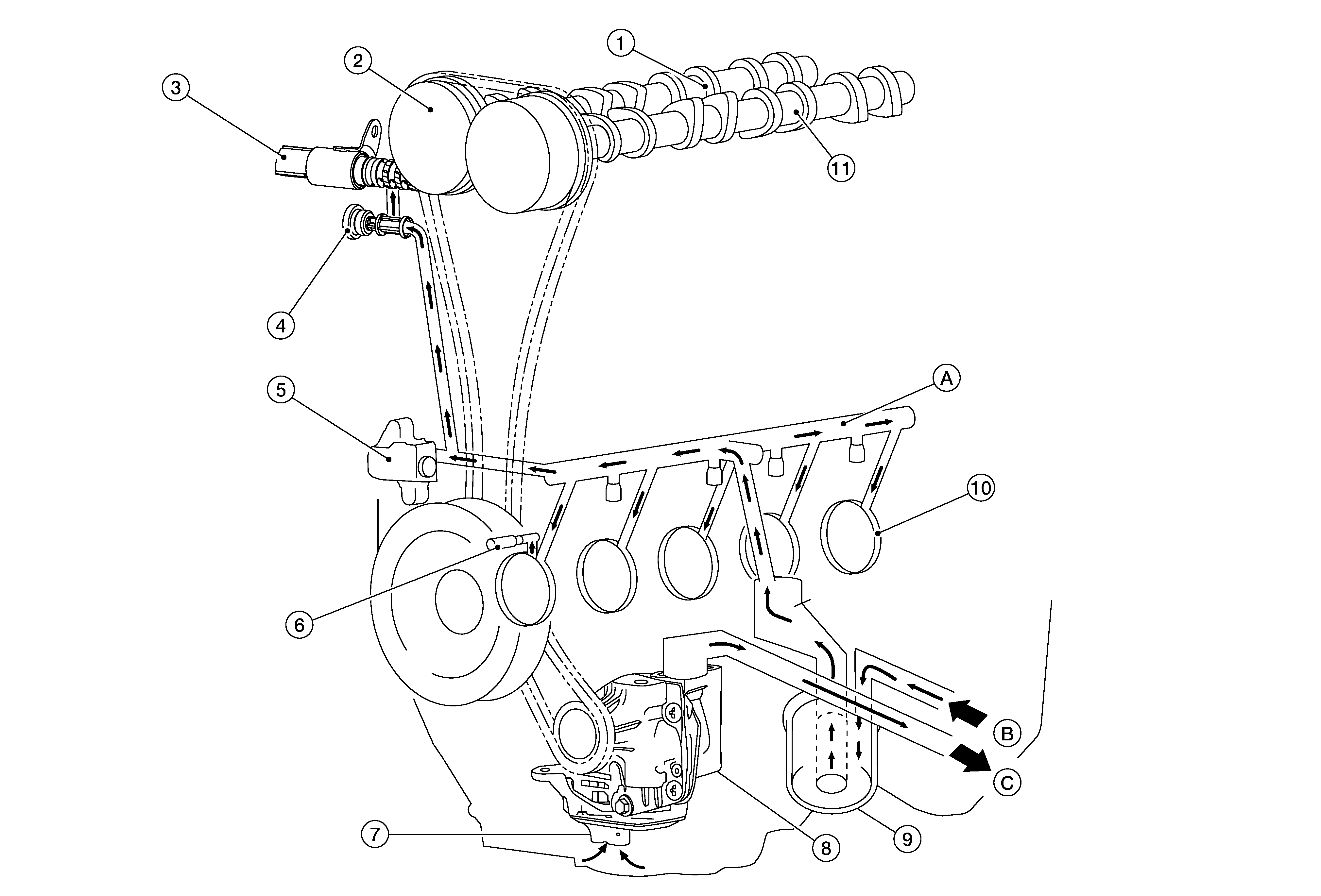

Engine Lubrication System
| 1. | Camshaft (EXH) | 2. | Camshaft sprocket (EXH) | 3. | Exhaust valve timing control solenoid valve |
| 4. | Oil filter (for exhaust valve timing control solenoid valve) | 5. | Timing chain tensioner | 6. | Timing chain oil jet |
| 7. | Oil strainer | 8. | Oil pump | 9. | Oil filter |
| 10. | Main bearing | 11. | Camshaft (INT) | A. | Main gallery |
| B. | From oil cooler (CVT models only). Refer to Exploded View . | C. | To oil cooler (CVT models only). Refer to Exploded View . | ||
