Nissan-Datsun
›
2024
›
Versa SR
›
Repair and Diagnosis
›
Steering
›
Steering Column
›
Steering System
›
Removal And Installation
›
Lower Joint
›
Exploded View
Exploded View

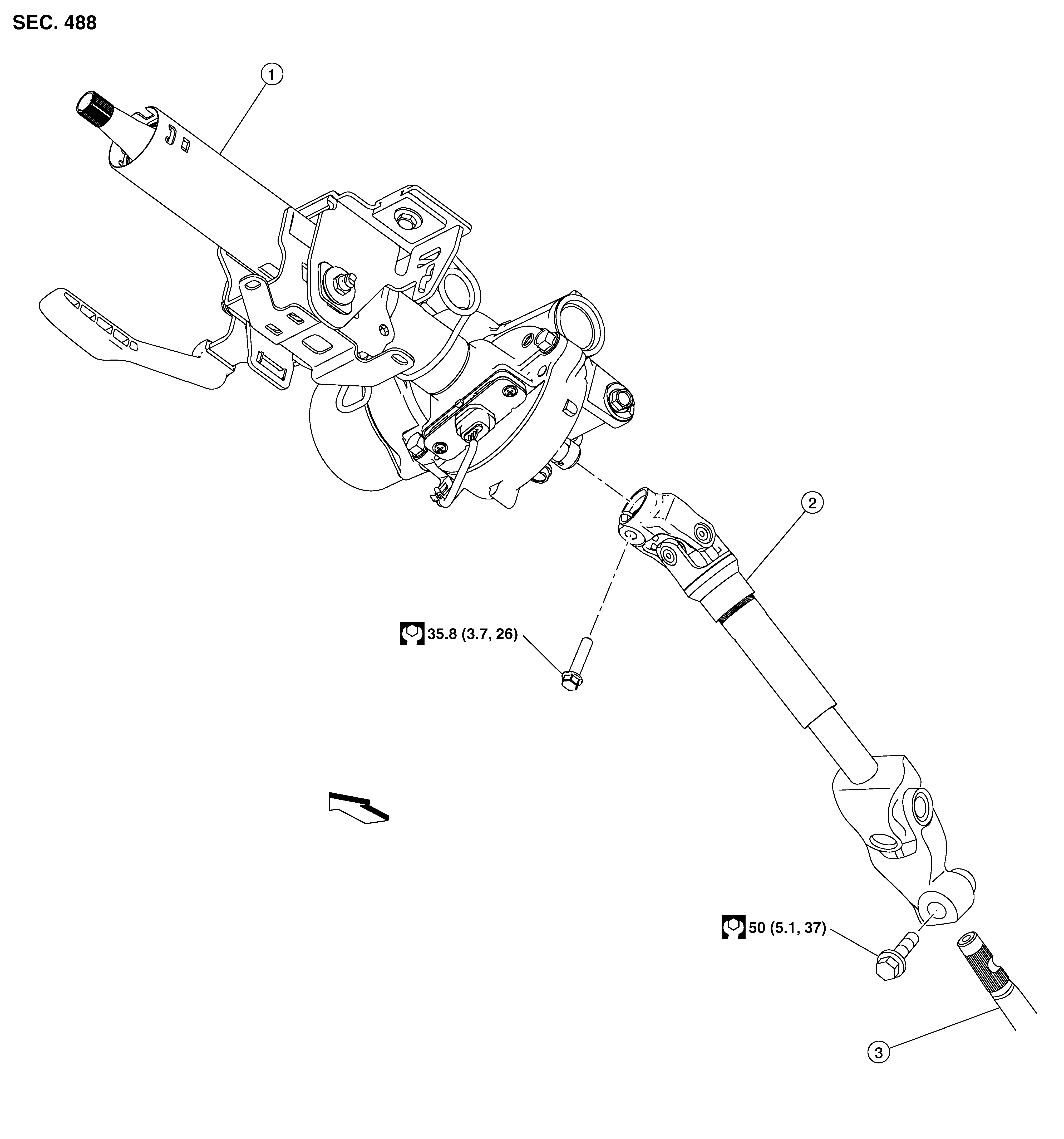

Fig 1: Lower Joint With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column
2.
Lower joint
3.
Steering gear
Front
Courtesy of NISSAN NORTH AMERICA, INC.
