Exploded View

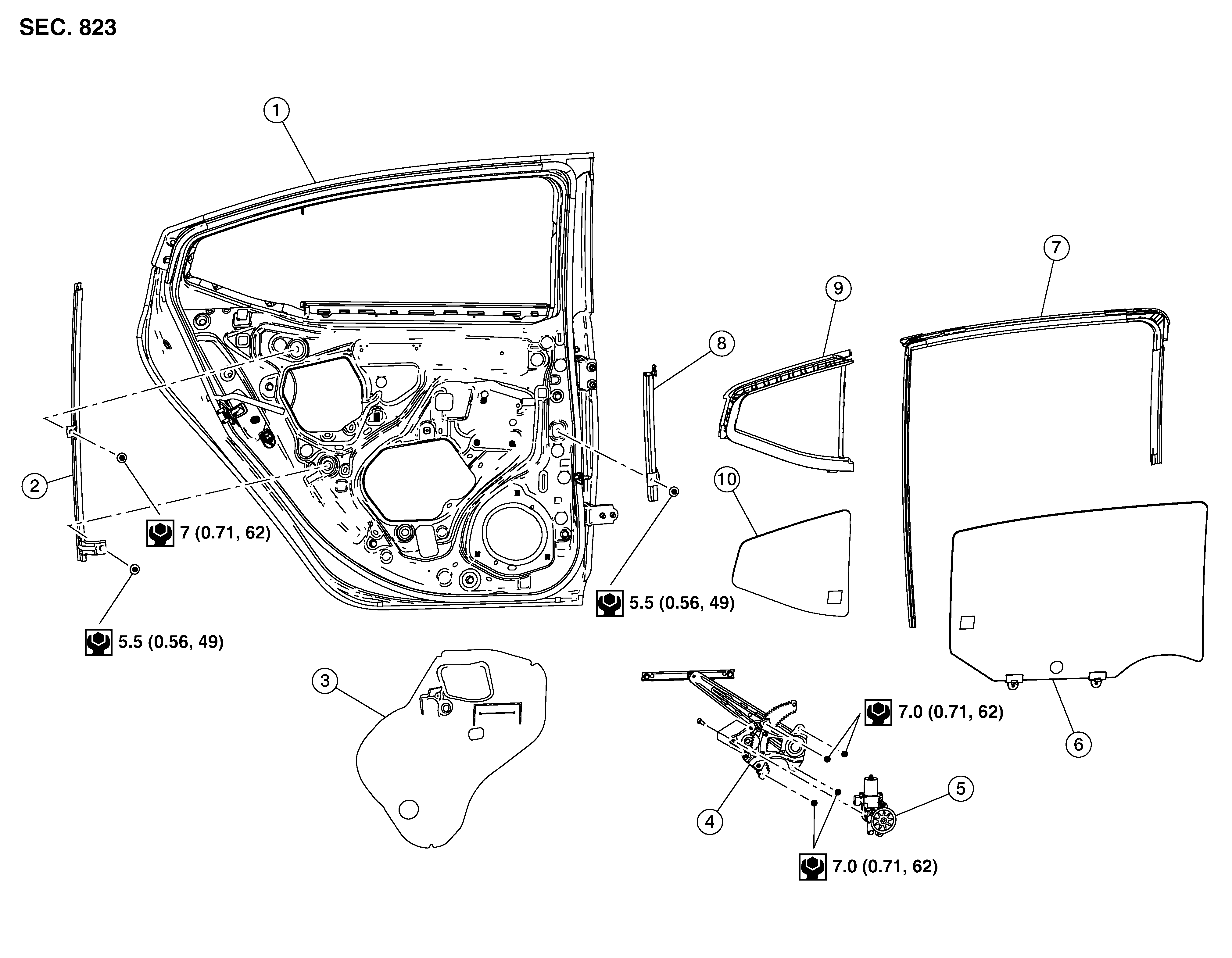

Fig 1: Rear Regulator With Torque Specifications

GNSDB128663

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear panel	2.	Door glass rear run	3.	Vapor barrier
4.	Door glass regulator	5.	Rear door power window motor	6.	Door glass
7.	Door glass rubber run	8.	Door glass front run	9.	Partition weather-strip
10.	Partition glass
