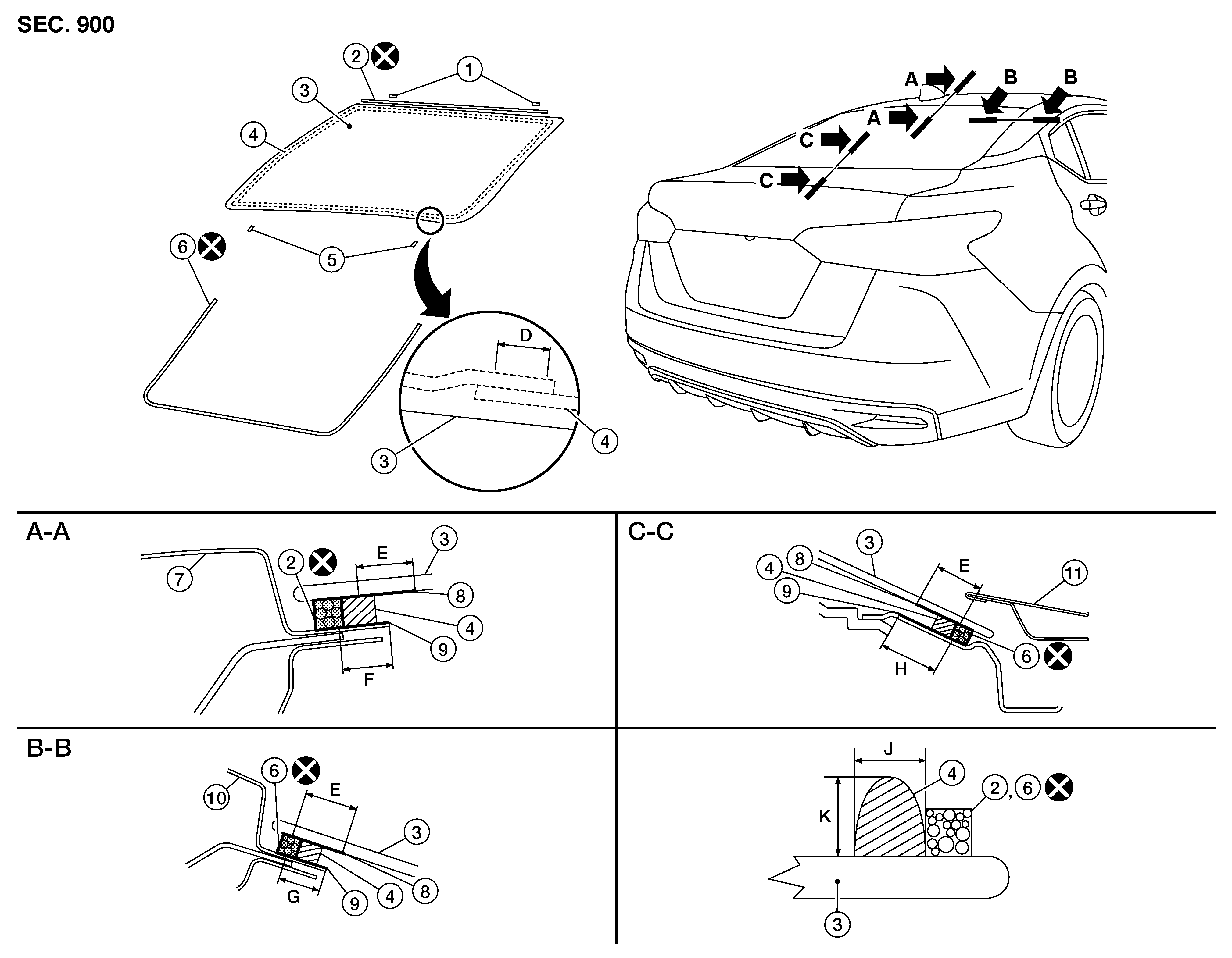

Exploded View
Unit: mm (in)
| 1. | Spacer | 2. | Dam sealant rubber (upper) | 3. | Rear window glass |
| 4. | Adhesive | 5. | Spacer (lower) | 6. | Dam sealant rubber (lower) |
| 7. | Roof panel | 8. | Glass primer | 9. | Body primer |
| D. | 30 mm (1.2 in) | E. | 15.0 mm (0.6 in) | F. | 13.0 mm (0.5 in) |
| G. | 13.0 - 15.0 mm (0.5 - 0.6 in) | H. | 27.3 mm (1.0 in) | J. | 7 + 2.0 mm (0.2 + 0.07 in) |
| K. | 12 + 2.0 mm (0.4 + 0.07 in) | ||||
