Engine Control System
›
Wiring Diagram

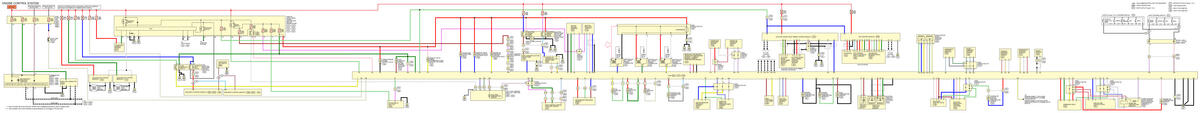

Engine Control System: Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
