Temperature Control Dial

NOTE: Tester J-22368 must be used for this adjustment. Connect Tester to amplifier as outlined in instructions on back of Tester . Follow step 5A of instructions. Set manual control on tester to 171 (except Toronado). 150 (Toronado). Insert Tool J-21530 or a 6" steel scale to left of temperature dial (see Fig 1).

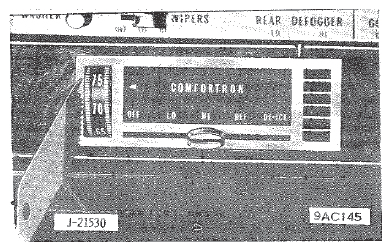

Fig 1: Temperature Control Dial Adjustment

Courtesy of GENERAL MOTORS COMPANY

CAUTION: Tool must engage teeth on side of temperature: dial . Hold temperature dial at 75° mark, rotate tool or scale until voltmeter on tester reads 6.5 volts.
