COMFORTRON Control Circuit Board Diagnosis

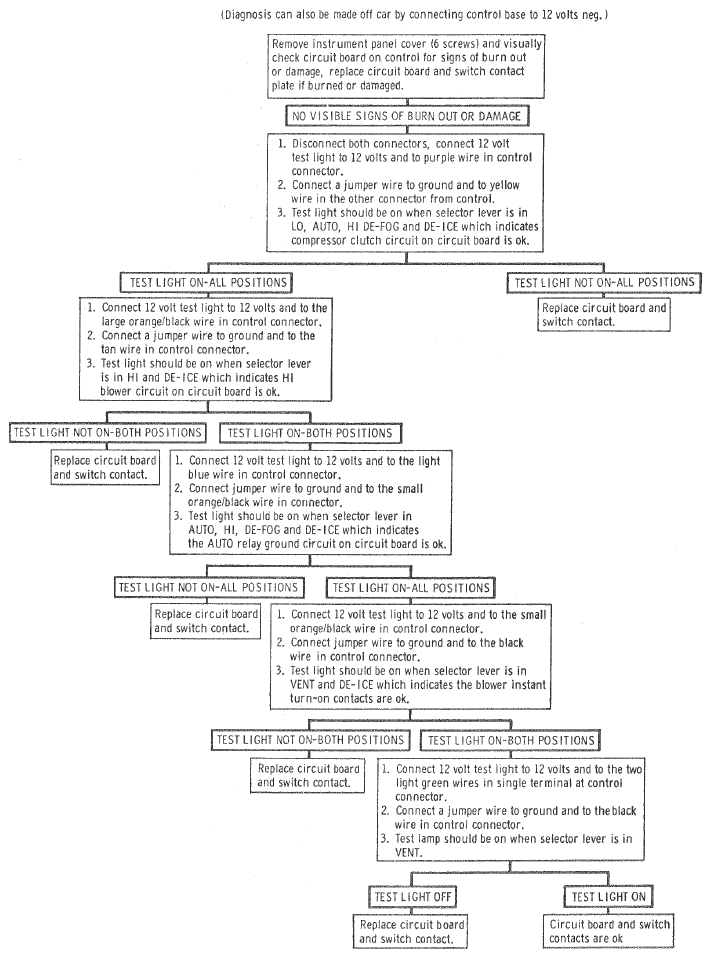

Fig 1: Comfortron Control Circuit Board Diagnosis Chart
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
