COMFORTRON Sensor Diagnosis
COMFORTRON Sensor Diagnosis

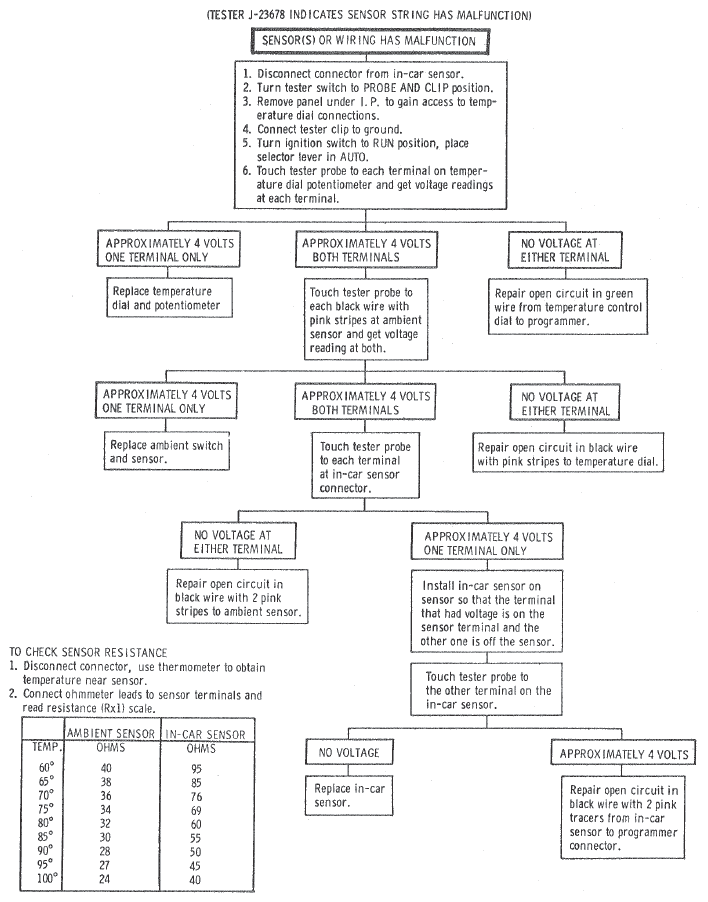

Fig 1: Comfortron Sensor Diagnosis Chart
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
