PCV Valve

Replace valve every 12 months or 12, 000 miles (1966-71) or every 24 months or 24, 000 miles (1972 and later). On 1972 and later models, if vehicle is operated under severe conditions (extreme dust, prolonged idling, trailer towing or short trips in cold weather) replace valve every 12 months or 12, 000 miles. When replacing PCV valve, rest of system should be serviced by washing parts in solvent and blowing out hoses with compressed air.

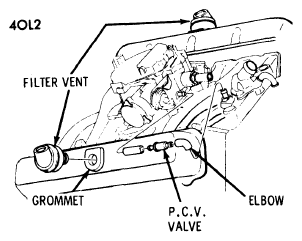

Fig 1: 1973-74 DUAL VENTILATION SYSTEM (455" MAN. TRANS.)
G09340541Courtesy of GENERAL MOTORS COMPANY

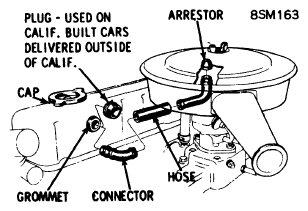

Fig 2: 1966-67 6 CYL. FLAME ARRESTOR LOCATION
G09340542Courtesy of GENERAL MOTORS COMPANY

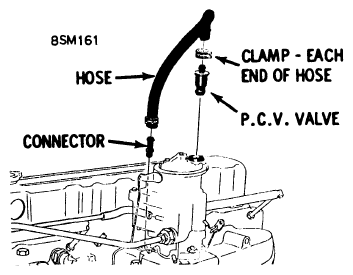

Fig 3: 6 CYL. VALVE & HOSE CONNECTIONS (TYPICAL)
G09340543Courtesy of GENERAL MOTORS COMPANY
