Tune-Up Procedures - V6: Distributor

All models are equipped with High Energy Ignition system. No adjustment is required.

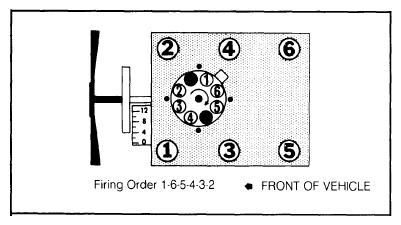

Fig 1: 231" (VIN C) Firing Order & Timing Marks

Courtesy of GENERAL MOTORS COMPANY

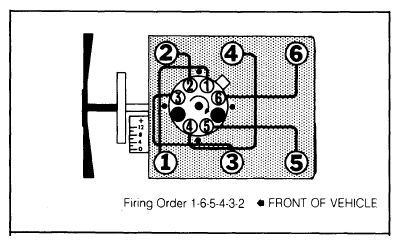

Fig 2: 231" (VIN A & 2) Firing Order & Timing Marks

Courtesy of GENERAL MOTORS COMPANY
