Hydraulic System Control Valves: Servicing

All hydraulic system switches and valves are non-adjustable and non-serviceable. If any part of valve is found to be defective, entire unit must be replaced.

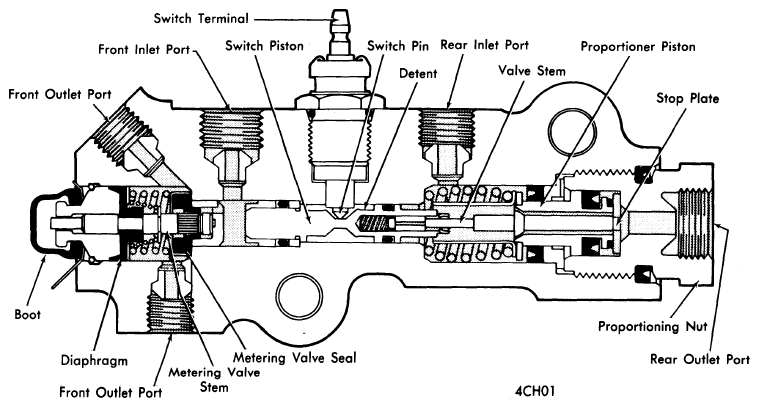

Fig 1: COMBINATION CONTROL VALVE (TYPICAL)
G09343374Courtesy of NOT AVAILABLE
