TEMPMATIC Programmer Diagnosis Chart

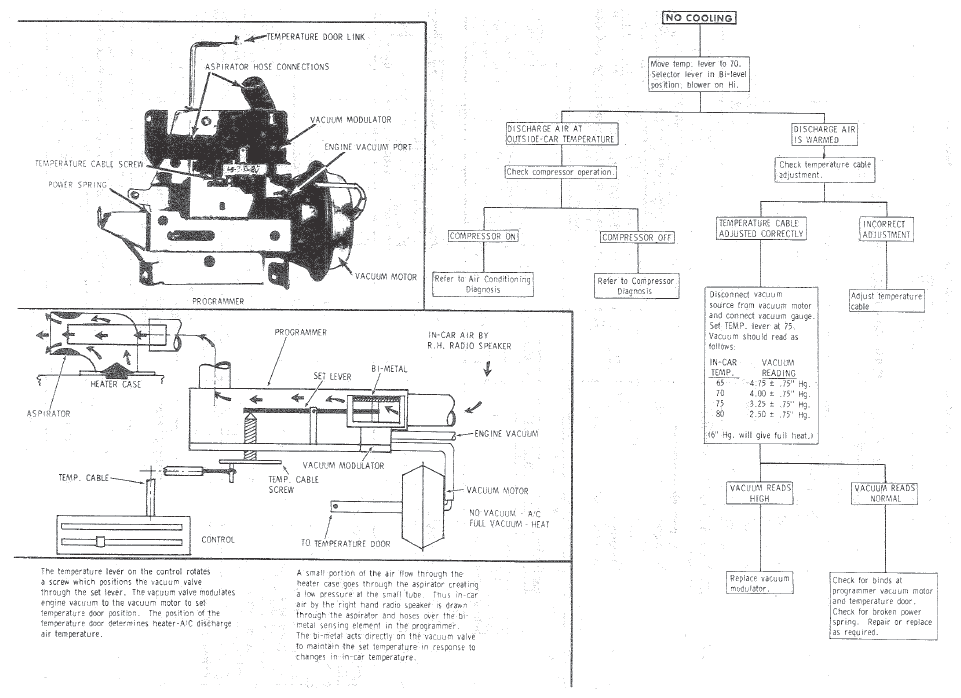

Fig 1: Tempmatic Programmer Diagnosis Chart
G09314614Courtesy of GENERAL MOTORS COMPANY

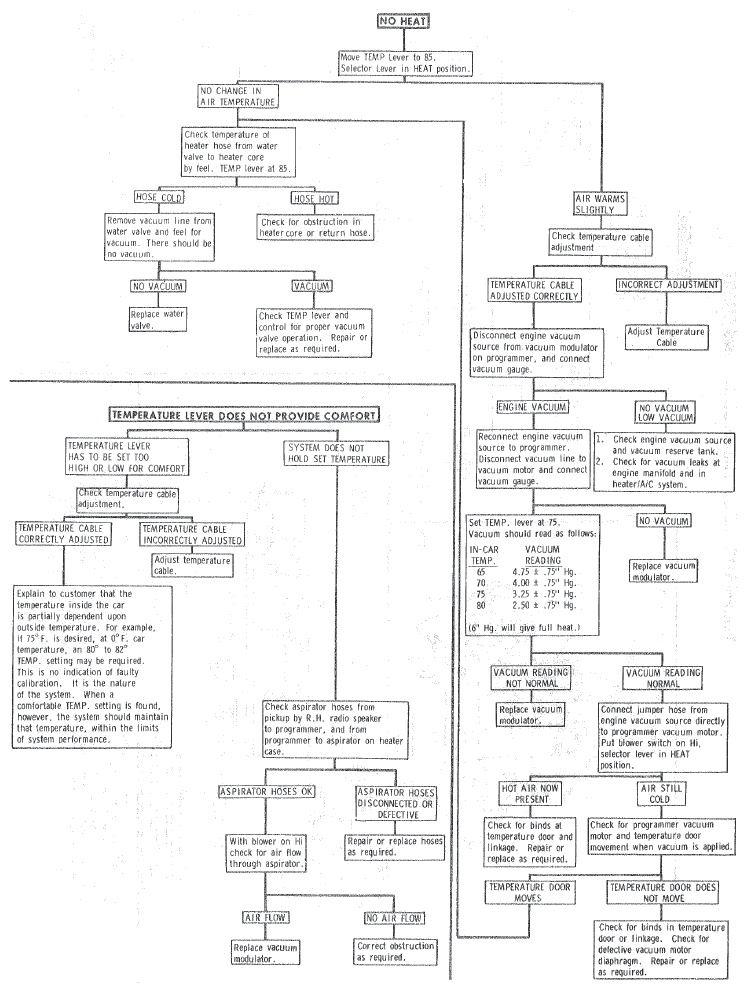

Fig 2: Tempmatic Programmer Diagnosis Chart (Contd.)
G09314615Courtesy of GENERAL MOTORS COMPANY
