Control Units/Timers
CONTROL UNITS/TIMERS LOCATION
| Component | Location |
|---|---|

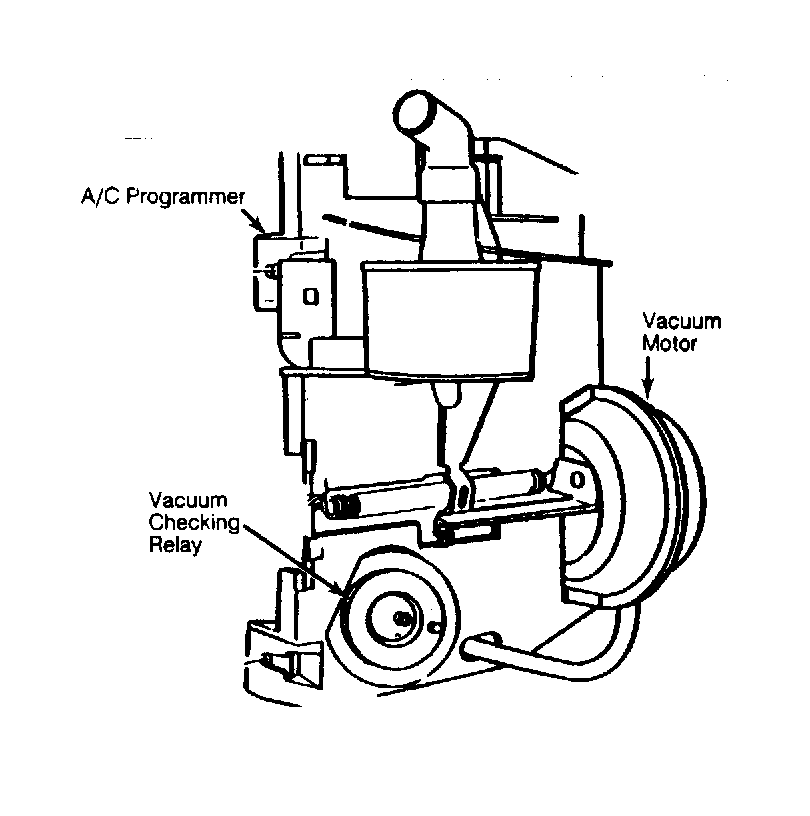

| A/C Programmer | Inside right portion of plenum. See Figure. |

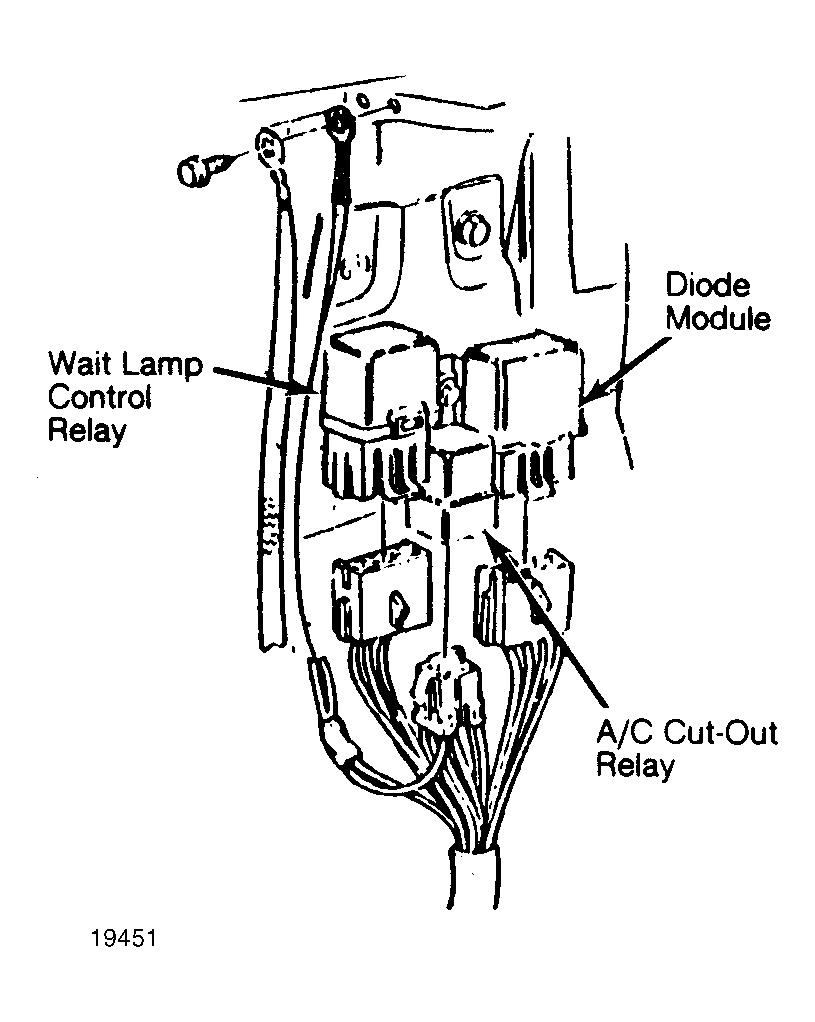

| Diode Module | Top center of engine cowl. See Figure. |
| Door Lock Control Unit | Behind instrument panel above glove box. |

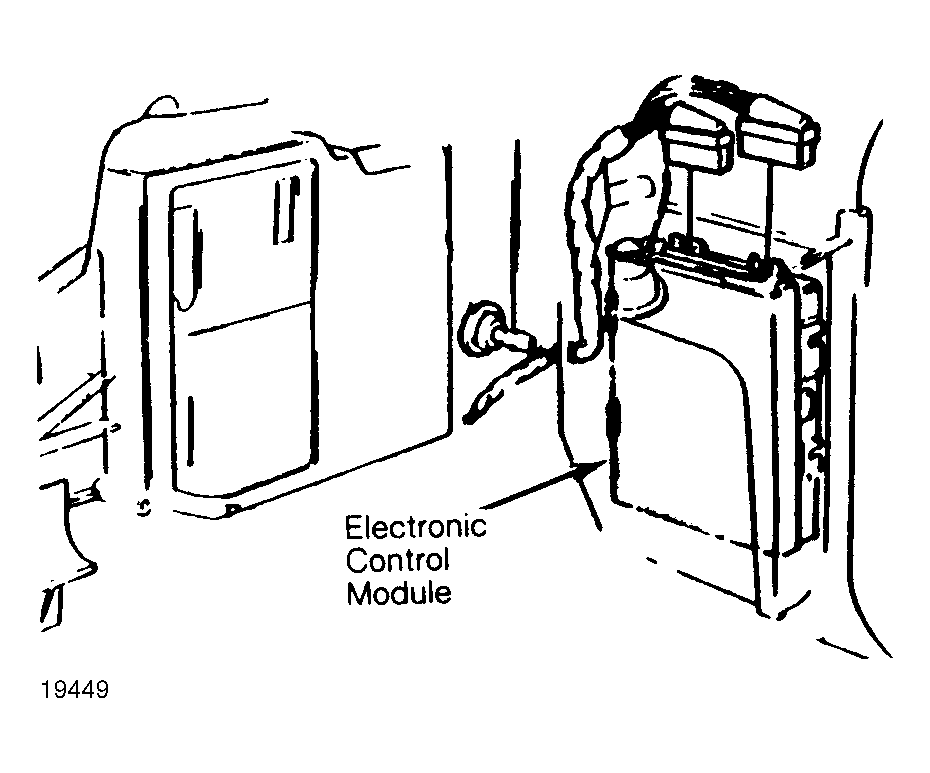

| Electronic Control Module (ECM) | Behind right kick panel. See Figure. |
| Electronic Spark Control Unit | Top of right front wheel well. |

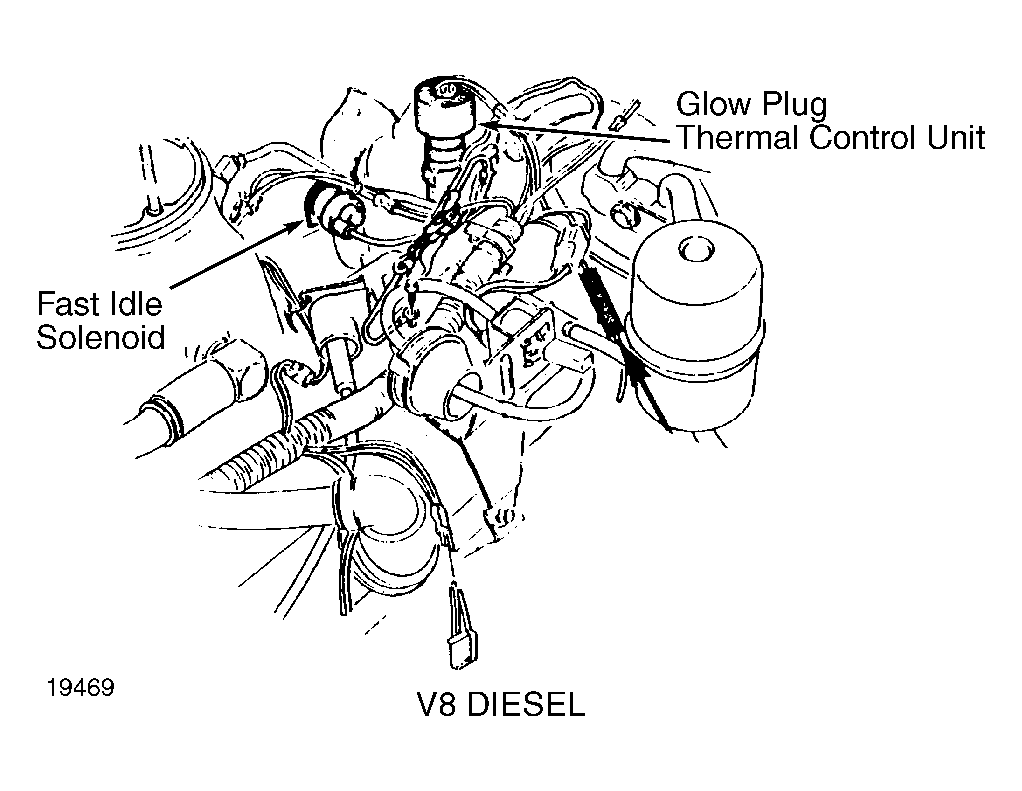

| Glow Plug Thermal Control Unit | Top front of engine. See Figure. |
| Idle Speed Control Unit (V6) | On left side of carburetor. |
| Illuminated Entry Timer | Upper left shroud near junction block. |

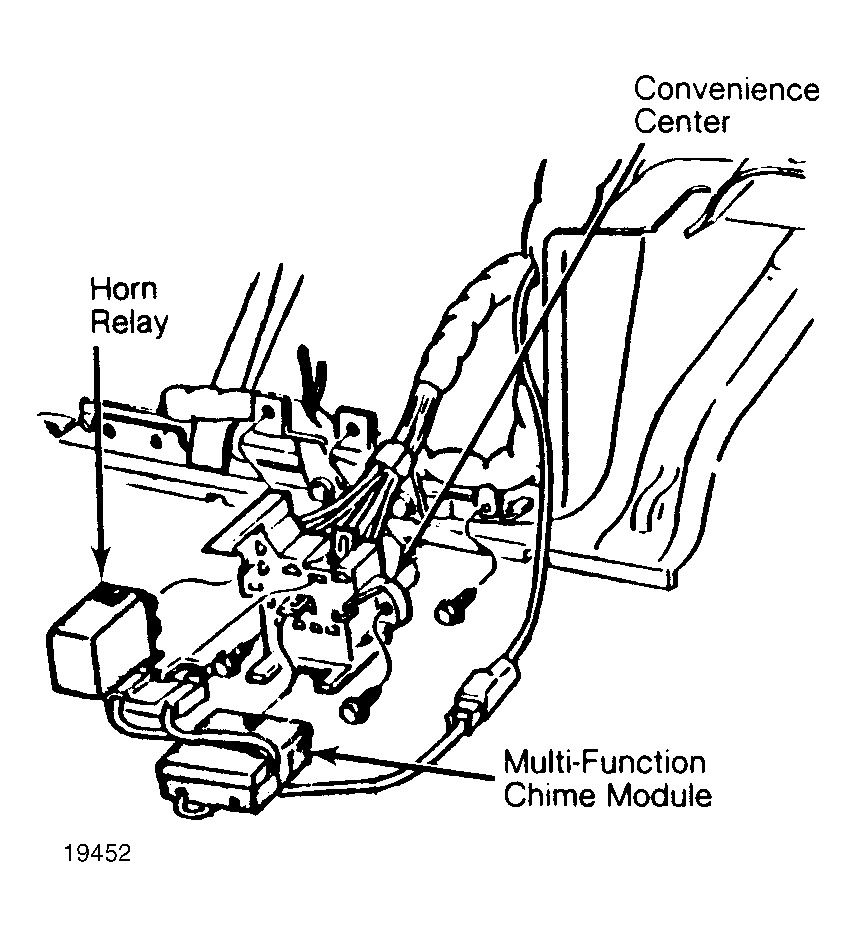

| Multi-Function Chime Module | On convenience center. See Figure. |
| Remote Light Driver Module | Behind instrument panel above passenger footwell. |
| Seat Belt Warning Module | On convenience center. See Figure. |

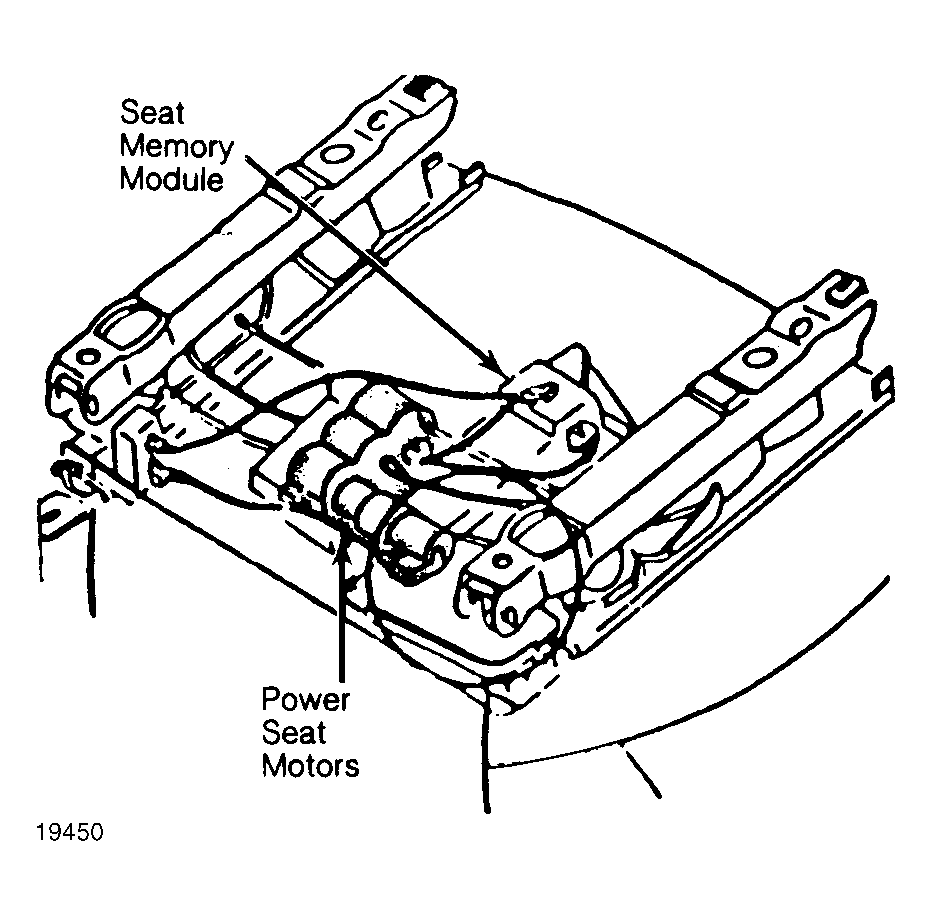

| Seat Memory Module | Under front of driver's seat. See Figure. |

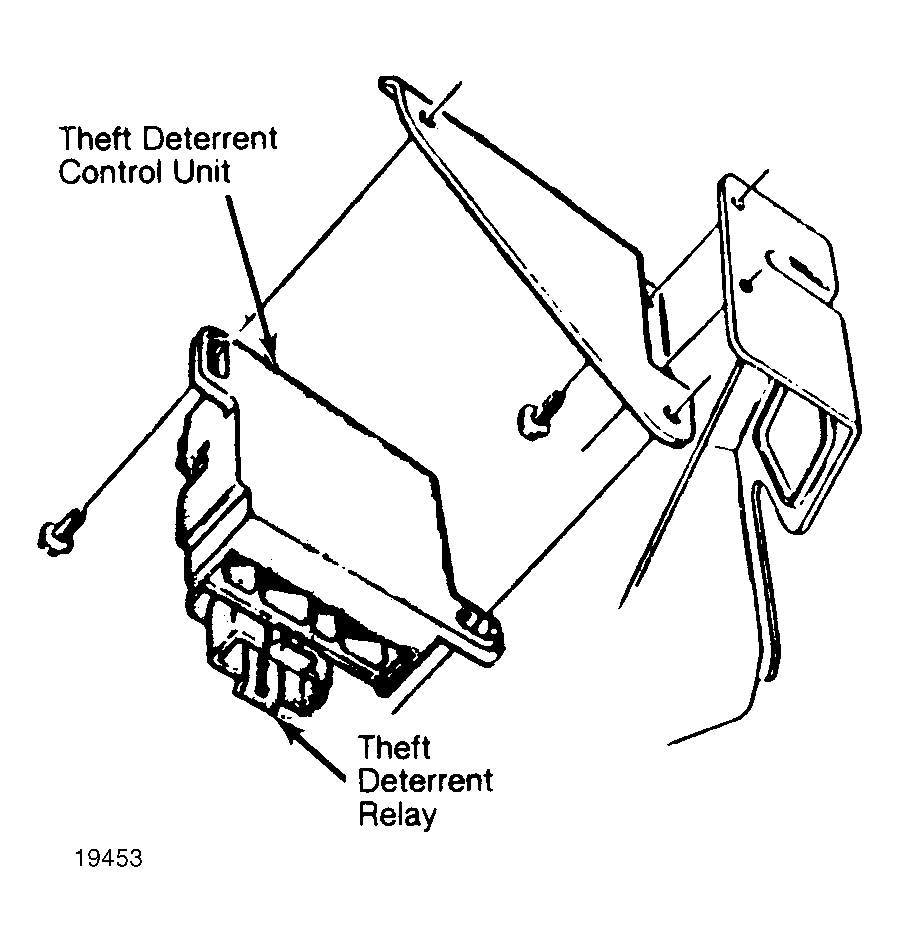

| Theft Deterrent Control Unit | On accelerator pedal lever plate. See Figure. |
