Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|

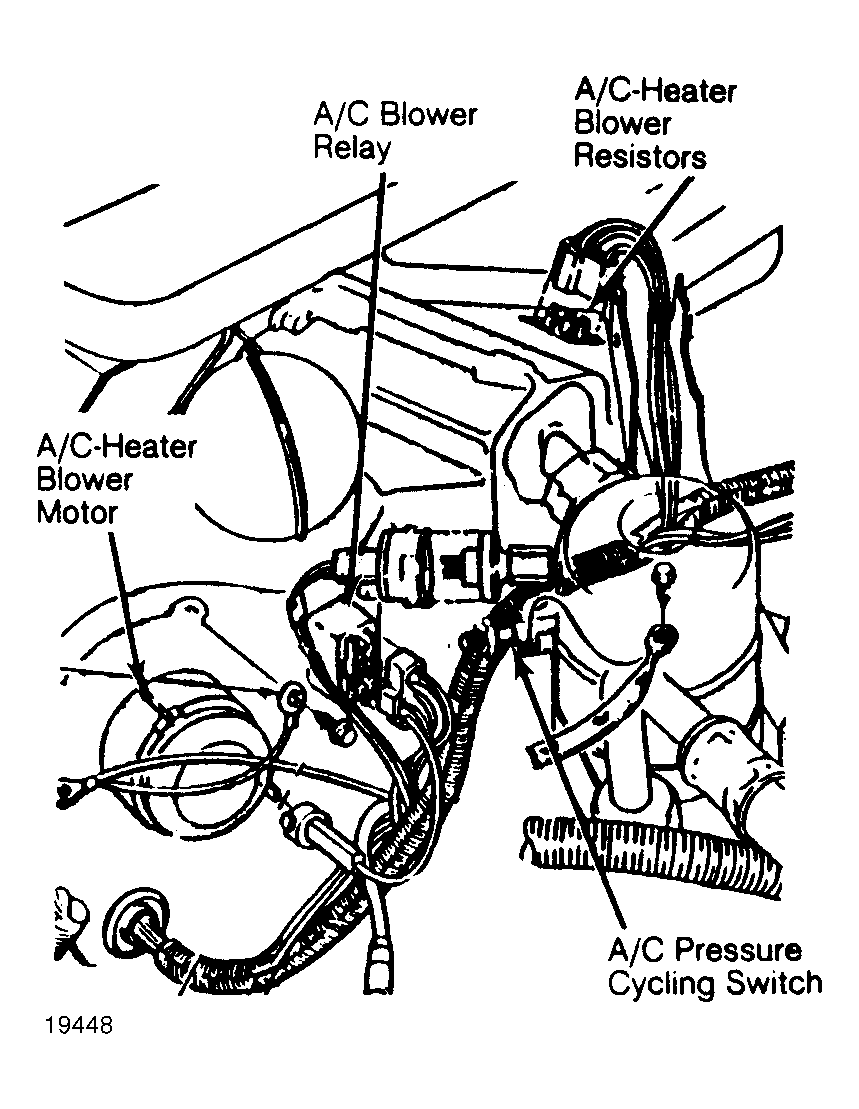

| A/C-Heater Blower Resistors | Top left side of blower assembly. See Figure. |

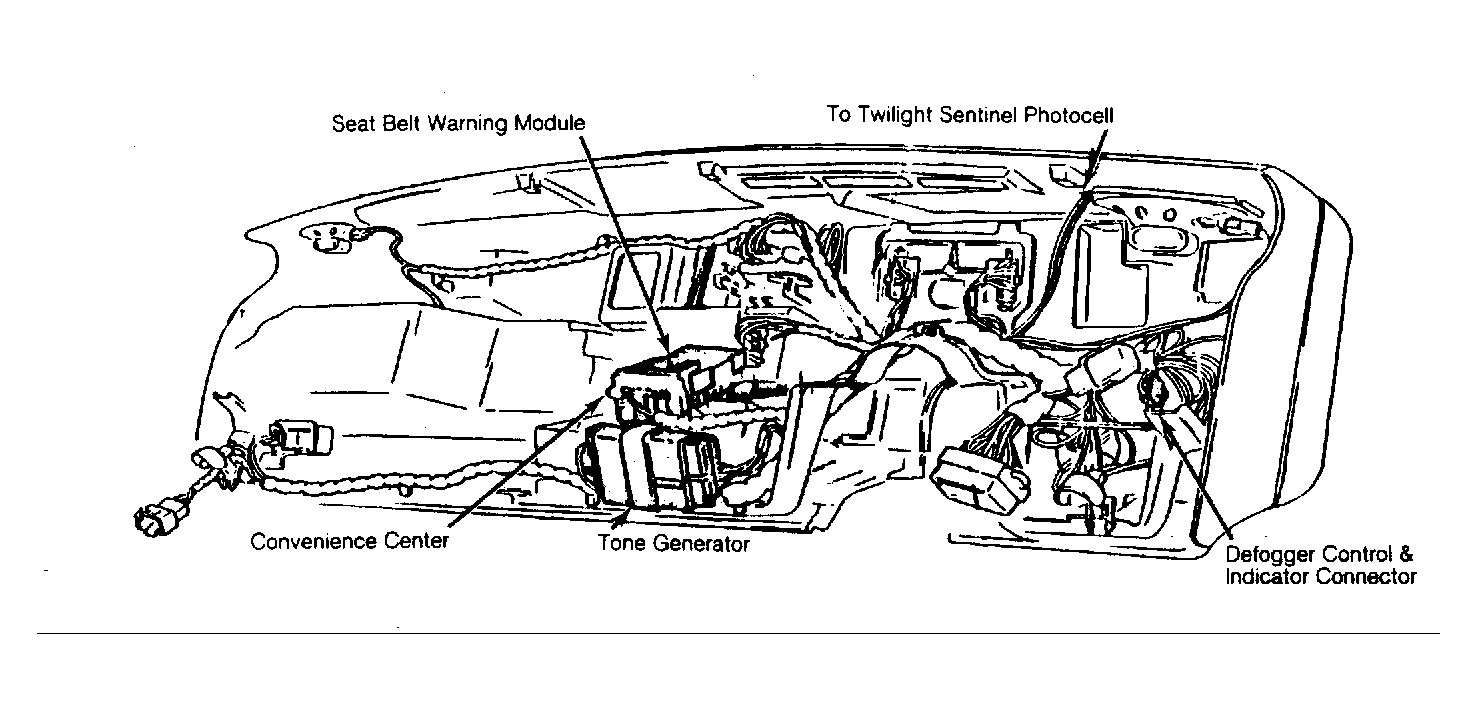

| Convenience Center | Center of instrument panel behind radio. See Figure & 3. |
| Door Locks Diode | Left shroud near center access hole. |
| Theft Deterrent Diode | Instrument panel harness above fuse block. |
| Tone Generator | Behind center of instrument panel. See Figure & 4. |
| Twilight Sentinel Amplifier | Behind instrument panel to right of radio. See Figure. |
| Twilight Sentinel Photocell | Top of instrument panel in left speaker grille. |
| Wiper Motor Relay Diode | In wiper motor connector. |
